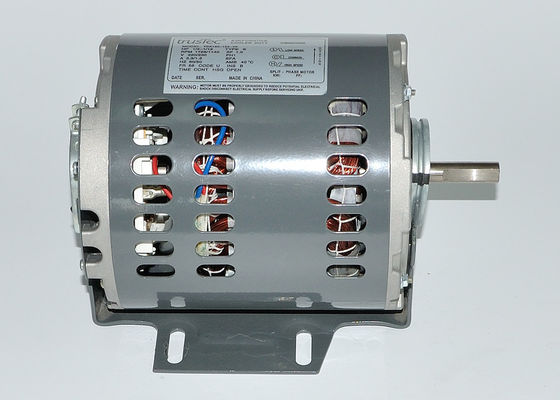

220V 1/4HP Air Cooler Fan Motor With HVAC Electric Motor 1425 / 1725 RPM 50 / 60 Hz

220V 1/4HP Air Cooler Fan Motor With HVAC Electric Motor 1425 / 1725 RPM 50 / 60 Hz

  • 220V 1/4HP Air Cooler Fan Motor With HVAC Electric Motor 1425 / 1725 RPM 50 / 60 Hz
  • 220V 1/4HP Air Cooler Fan Motor With HVAC Electric Motor 1425 / 1725 RPM 50 / 60 Hz
  • 220V 1/4HP Air Cooler Fan Motor With HVAC Electric Motor 1425 / 1725 RPM 50 / 60 Hz
220V 1/4HP Air Cooler Fan Motor With HVAC Electric Motor 1425 / 1725 RPM 50 / 60 Hz
Product Details:
Place of Origin: China
Brand Name: TrusTec
Certification: CE
Model Number: YDK100-6
Payment & Shipping Terms:
Minimum Order Quantity: 100/200 pcs
Price: Negotiable (FOB/CNF/CIF)
Packaging Details: Standard carton packing, foam board inside for protection.
Delivery Time: 15 -20 days fresh products after order confirmation.
Payment Terms: T/T, L/C
Supply Ability: 100,000 pcs per month
Contact Now
Detailed Product Description
Power: 100W Motor Diameter: 100mm
Frequency: 50Hz Pole: 6
Voltage: 220V Rated Current: 0.85
Speed: 850/700 Product Name: Air Cooler Motor
High Light:

air cooler fan motor

,

cooler fan motor



220V 1/4HP 1425/1725RPM 50/60Hz Air Cooler Motor with HVAC Electric Motor




Motor specification:

Type

Shell

Power

Frequency

Voltage

Speed

AMPS(A)

YDK100-6

Iron

100W

50Hz

220V

850/700

0.85

YDK150-6

Iron

150W

50Hz

220V

800/600

800

YDK-200-6

Iron

200W

50Hz

220V

830/600

830

YDK-270-6

Iron

270W

50Hz

220V

630/400

630

YDK-380-6

Iron

380W

50Hz

220V

680/400

680

YDK-450-6

Iron

450W

50Hz

220V

1000

1000

YDK-550-6

Iron

550W

50Hz

220V

900

900



Type

Shell

Power

Frequency

Voltage

Speed

AMPS(A)

YS-250-6

Aluminum

250W

50Hz

380-415V

925

0.9

YS-370-6

Aluminum

370W

50Hz

380-415V

925

1.3

YS-550-6

Aluminum

550W

50Hz

380-415V

925

1.4

YS-750-6

Aluminum

750W

50Hz

380-415V

720

2.5

YS-120-8

Aluminum

120W

50Hz

380-415V

925

1

YS-370-8

Aluminum

370W

50Hz

380-415V

720

1.5

YS-550-8

Aluminum

550W

50Hz

380-415V

710

2

YS-750-8

Aluminum

750W

50Hz

380-415V

710

2.5

Note:the above motor soecification and dimension is representative motor,only for reference,welcome ODM.



Motor feature:

1.Being adapted international famous qualified low noise ball bearing, it makes motor long life and no need for more oil supplying.

2.High waterproof grad.

3.Customized aluminum shell,high efficiency,low noise.

4.It adopts high quality thermoset encapsulation materials.



Motor application:

1.Different kinds of ventilation equipment.

2.Central air conditioner outdoor fan.

3.Insulation class E/B/F, protection class IP20~IP54.

4.Bearing: rolling bearing, NSK low noise high quality material.



Our company:



Changzhou Trustec Company is focus on the motor design and production for 17 years.
And we factory capacity can achieve to 100,000pcs in Hvac dustry.

The brand name is trusTec, her lively meaning is to TRUST the Teams' Efficiency and Competence.
The main exporting market is North America, The Nerthlands and Saudi Arabia.

Based on advanced full-automatic line equipments and high precision inspection equipments,trustec strictly executes ISO9000 quality management standard in every producing process,all products have passed ISO9001,CCC,SGS,UL,CE,ROHS etc certificates.



Our Service:

TrusTec also provides professional,personalized,24-hour and 360-degree service for all customers.



FAQ:

Q1: What advantage do you have?
   A: 1. 18months guarantee for whole motor.
       2. 24 hours technical support by email.
       3. Use English manual and detailed specifications.



Q2: Do you have distributors overseas?
   A:Yes. We have distributors in USA, Holland, Spain, Turkey, Sudan, UAE, KSA and we have our brand.



Q3: Do you inspect the finished products?
   A: Yes, We have professional our QC staff. and we will do inspection according to ISO 9001 standard and rule.
