TRUSTEC MOTOR YOUR TRUSTED FACTORY
Sales & Support:
 |
| Place of Origin: | Changzhou, China |
| Brand Name: | trusTec |
| Certification: | CE |
| Model Number: | 3.3 motor 3 in 1 |
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Price: | Negotiable (FOB/CNF/CIF) |
| Packaging Details: | Standard carton packing, foam board inside for protection. |
| Delivery Time: | 15 days fresh products after order confirmation. |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 pcs per month |

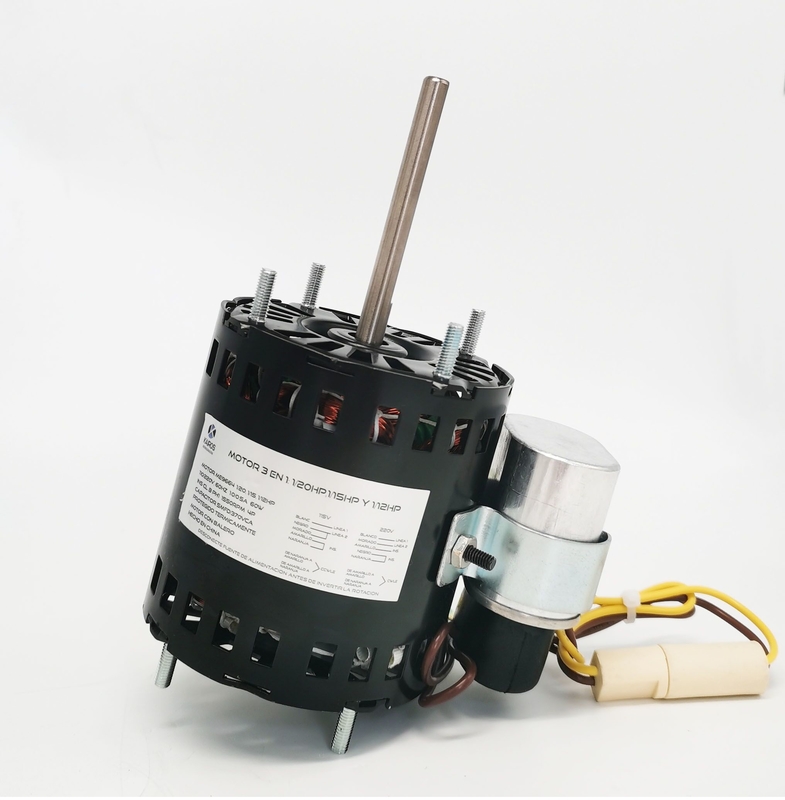

| Product: | 3.3" Motor 3 EN IN | Frame: | 3.3" |
|---|---|---|---|
| Motor Type: | Permanent Split Capacitor | Supply Voltage: | 115/230V |
| Enclosure Type: | OAO (Open Air Over) | Supply Frequency: | 60HZ |
| Thermal Overload: | Equipped With An Automatic Thermal Overload | Current: | 1.1/0.6A |
| Phase: | Single-phase | Output Power: | 1/20HP 1/15HP 1/12HP |
| Shaft Flats: | One Flat | Rated Speed: | 1550RPM 4 Pole |
| Mounting Orientation: | All Angle | Capacitor: | 5.0uF/370V |
| Insulation Class: | Class B | Shaft Length: | 3" |
| Bearings: | Ball Bearing | Shaft Diameter: | 5/16" |
| Max. Ambient Temperature: | 40℃/104℉ | Rotation: | Reversible |
| Highlight: | 1/15HP 3.3” Motor,115/230V 3.3” Motor,1/20HP 3.3” Motor |
||
