Place of Origin: | China |
Brand Name: | trusTec |
Certification: | CE |
Model Number: | ZTS-35-8 |
Minimum Order Quantity: | 200pcs |
---|---|
Price: | Negotiable (FOB/CNF/CIF/EXW) |
Packaging Details: | Standard carton packing, foam board inside for protection. |
Delivery Time: | 15-20 work days after order confirmation. |
Payment Terms: | T/T, L/C |
Supply Ability: | 100,000 pcs per month |
Insulation Class: | B/F | Speed: | 300~1500 RPM |
---|---|---|---|
Class: | IP42 | Power: | 35W |

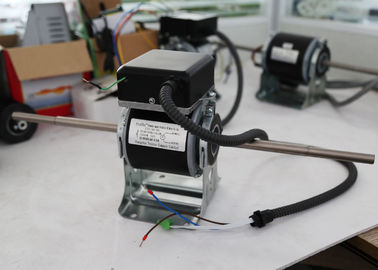

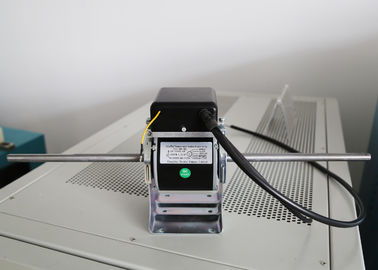

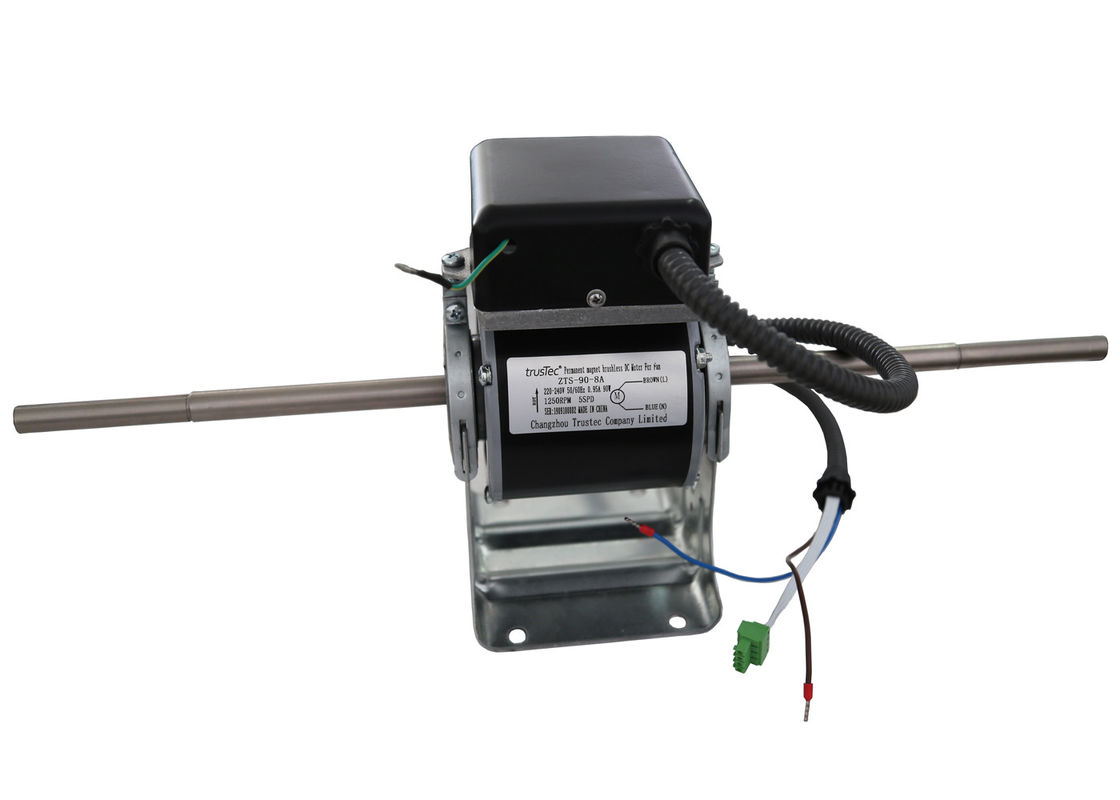

Type: | Double Shaft FCU Motor | Shaft Diameter: | 12/12.7mm |
High Light: | ec motor,ec brushless motor |
Name |
EC motor(motor, power supply, driver) |
Shaft type |
single shaft/double shaft |
Shaft diameter |
Φ12, Φ12.7, Φ14 |
Output power |
30W |
60W |
|
90W |
|
120W |
|
150W |
|
180W |
|
Input voltage |
AC220V ±10% |
Speed control |
300~1500RPM variable speed |
Multi speed |
|
Insulation class |
B/F |
Available Types |
Voltage |
Frequency |
Input Power |
Current |
Output Power |
Speed |
Torque |
ZTS-25-8 |
220 |
50 |
38 |
0.35 |
25 |
1150 |
0.21 |
ZTS-35-8 |
220 |
50 |
50 |
0.45 |
35 |
1200 |
0.28 |
ZTS-50-8 |
220 |
50 |
71 |
0.6 |
50 |
1200 |
0.4 |
ZTS-70-8 |
220 |
50 |
93 |
0.75 |
70 |
1250 |
0.53 |
ZTS-90-8 |
220 |
50 |
112 |
0.9 |
90 |
1250 |
0.69 |
ZTS-120-8 |
220 |
50 |
150 |
1.2 |
120 |
1300 |
0.88 |
ZTS-150-8 |
220 |
50 |
183 |
1.43 |
150 |
1300 |
1.1 |
ZTS-200-10 |
220 |
50 |
235 |
1.81 |
200 |
1400 |
1.36 |
ZTS-250-10 |
220 |
50 |
290 |
2.21 |
250 |
1400 |
1.71 |
ZTS-500-10 |
220 |
50 |
568 |
4.23 |
500 |
1400 |
3.41 |
Listed above are representitive models, performance parameters dimensions can be customized according to the request.
1. Trustec EC(BLDC) motor can be AC 110V/220V 50Hz/60Hz or DC 24V/48V/310V input.
2. Trustec EC(BLDC) motor is up to 85% efficiency, power factor 0.5~0.6 .
3. Trustec EC(BLDC) motor can be 0-10VDC/PWM variable speed, multi speeds or single speed.
4. Trustec EC(BLDC) motor uses sensorless vector field-oriented control(FOC), lower material cost and smaller failure rate because of no hall sensor, higher efficiency, lower noise, smoother performance curves.
1. Reversible plug for easy rotation.
2. Class F/B Insulation.
3. Automatic overload.
4. Low temperature rise and a strong adaptability to the environment.
5. Indoor central air conditioning coil unit and other ventilation equipment.
After-Sale Service:
1. Choose cheapest & safest shipping company and track the order until receipted.
2. If any defect, free replacement will be sent along with your next order.
