TRUSTEC MOTOR YOUR TRUSTED FACTORY
Sales & Support:
 |
| Place of Origin: | Changzhou, China |
| Brand Name: | trusTec |
| Certification: | CE、UL529388 |
| Model Number: | YDK-30-4B3-RVN |
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Price: | Negotiable (FOB/CNF/CIF) |
| Packaging Details: | Standard carton packing, foam board inside for protection. |
| Delivery Time: | 15 days fresh products after order confirmation. |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 pcs per month |

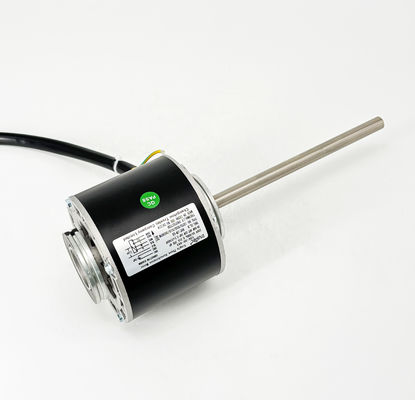

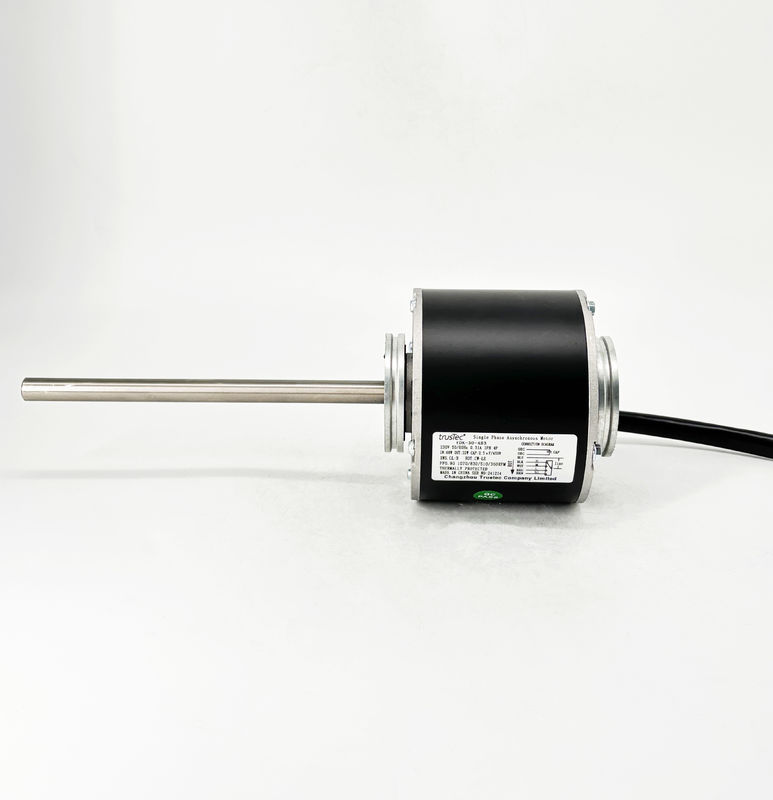

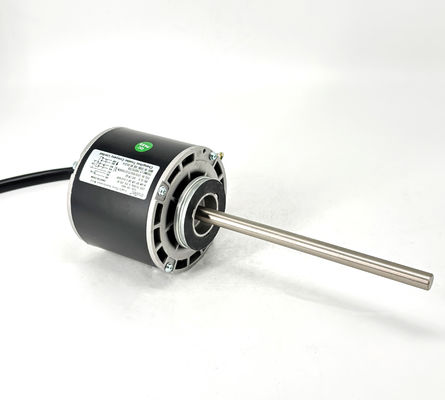

| Product: | AC Fan Coil Unit Motor | Frame: | 112.4mm |
|---|---|---|---|
| Motor Type: | Permanent Split Capacitor | Supply Voltage: | 230V |
| Enclosure Type: | OAO(Open Air Over) | Supply Frequency: | 50/60Hz |
| Thermal Overload: | Equipped With An Automatic Thermal Overload | Current: | 0.31A |
| Phase: | Single Phase | Output HP: | 32W |
| Shaft Flat: | One Flat | Speed: | 1070/830/510/360RPM |
| Mounting Orientation: | All Angle | Capacitor: | 2.5uF/450V |
| Insulation Class: | Class B | Pole: | 4P |
| Bearings: | Ball Bearing | Shaft Diameter: | 0.5"/12.7mm |
| PF: | 0.9 | Shaft Length: | 195mm/7.68" |
| Rotation: | CW(Wire-end) | Flat Length: | 70mm/2.76" |
| Max. Ambient Temperature: | 40℃/104℉ | Lead Length: | 1000mm/39.37" |
| Motor Shell Length: | 106mm/4.17" | ||
| Highlight: | 230V Condenser Fan Motor,360RPM Condenser Fan Motor,32W Condenser Fan Motor |
||
