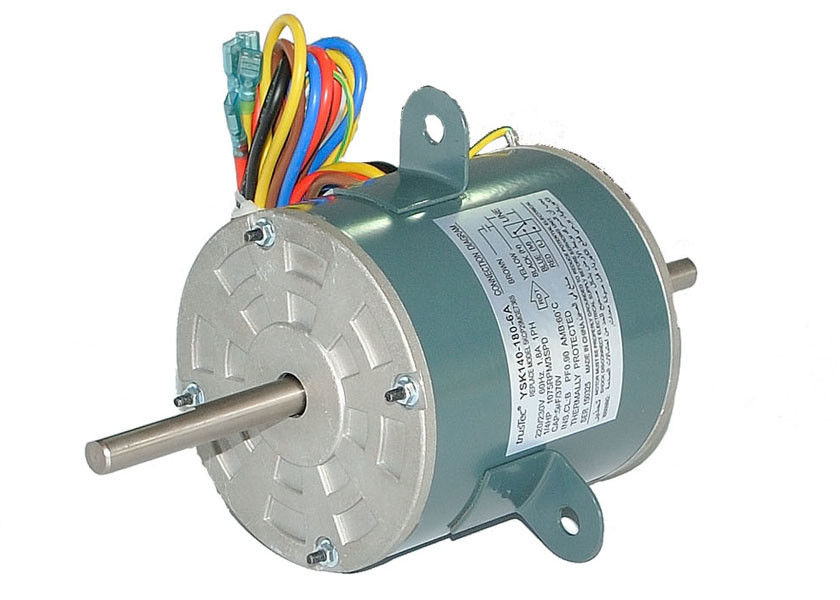

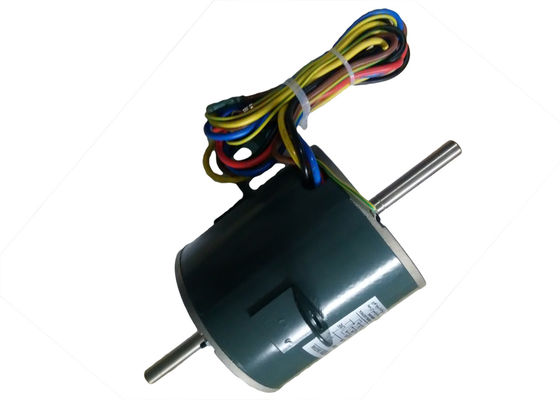

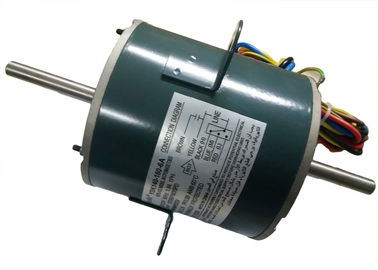

Double Shaft Replace Fan Motor Air Conditioner 1/3HP 245W 115V

Double Shaft Replace Fan Motor Air Conditioner 1/3HP 245W 115V

  • Double Shaft Replace Fan Motor Air Conditioner 1/3HP 245W 115V
  • Double Shaft Replace Fan Motor Air Conditioner 1/3HP 245W 115V
  • Double Shaft Replace Fan Motor Air Conditioner 1/3HP 245W 115V
Double Shaft Replace Fan Motor Air Conditioner 1/3HP 245W 115V
Product Details:
Place of Origin: China
Brand Name: trusTec
Certification: CE
Model Number: YSK140-245-4A20
Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs
Price: Negotiable (FOB/CNF/CIF)
Packaging Details: Standard carton packing, foam board inside for protection.
Delivery Time: 15 days fresh products after order confirmation.
Payment Terms: T/T, L/C
Supply Ability: 100,000 pcs per month
Contact Now
Detailed Product Description
Application: Commercial Air Conditioner Power: 1/3HP 245W
Shaft: Double Shaft Rotation: CCW-LE
Rated Speed: 1625RPM Frequency: 60Hz
Product Name: Air Conditioner Fan Motor
High Light:

air condition fan motor

,

air conditioning fan motor

Double Shaft Replace Fan Motor Air Conditioner 1/3HP 245W 115V



Application:

1. Window air conditioner
2. Commercial air conditioner
3. Fresh air ventilation system


Features:

1. Single phase capacitor run asynchronous motor
2. Copper design
3. Continuous duty
4. Compact size


Parameters:
Note: Listed are representative motors, only for reference, dimensions and parameters can be customized according to customer requirements, OEM/ODM offered.


Model Number

Voltage
/V

Frequency
/Hz

Power

Speed
/RPM

Rotation

Capacitor
/MDF/VAC

OEM Model
YSK140-245-6A208-230601/3HP1120/3 SPDCCW-LE7.5/3705KCP39HGM307AT
YSK140-245-6A2208-230601/3HP1120/3 SPDCCW-LE7.5/370F48F43B0956
YSK140-245-6A4208-230601/3HP1090/2 SPDCCW-LE5/3705KCP39FGM291TC
YSK140-245-4A20115601/3HP1625/3 SPDCCW-LE5/370D770
YSK140-245-4A21208-230601/3HP1625/3 SPDCCW-LE5/370D771
YSK140-245-4A22208-230601/3HP1075/3 SPDCCW-LE5/370K55HXSPK-3135
YSK140-245-4A23208-230601/3HP1625/3 SPDCCW-LE7.5/370KA55XSGS-9930
YSK140-245-4A12220601/3HP1625/3 SPDREVERSIBLE5/370PM310386
YSK140-245-4A13208-230601/3HP1075RPMREVERSIBLE5/370PM310385
YSK140-245-4A14460601/3HP1075RPMREVERSIBLE5/370PM310384
YSK140-245-4A17208-230601/3HP1625/3 SPDREVERSIBLE5/370FASCO D781
YSK140-245-4A18208-230601/3HP1625RPMREVERSIBLE5/370FASCO D787
YSK140-245-4A19115601/3HP1625/3 SPDREVERSIBLE15/370FASCO D780


Services:

1. Trade Terms: FOB, CIF, EXW, DOOR TO DOOR.
2. Payment Terms: T/T, L/C, Western Union, PayPal.
3. Payment Condition: 30% deposit in advance, 70% balance before delivery.
4. Delivery Time: 15-30 days after deposit (if T/T).
5. Shipping: By sea, by air and by express delivery

Company information:

1. As professional motor manufacturer, Changzhou Trustec Co.,Ltd is specialized in the designing and producing of all kinds of motors for room, commercial and central air conditioners.

2. All products have been approved by RoHS, CCC, CE and UL certificates, and the products have been exported to the main market such as North America, Europe and Mid-east.

3. Based on nearly 20 years successful experience, trustec can provide the best solutions of fan motors for customers, and offer the most suitable products according to the special requirement.

FAQ:

 Do you have distributors overseas?
Yes. We have distributors in USA, Holland, Spain, Turkey, Sudan, UAE, KSA...

How many motors is 1*20GP container or 1*40HQ container loading?
Normally 2000-2200pcs for 1*20GP & 4300-4500pcs for 1*40HQ.
We always make full use of the space to save for the customers.

What is the procedure of order?
1. Please tell us the model, mounting size and quantity you need.
2. Make PI for you and confirm the order detail.
3. Please make payment for your order.
4. Arrange to produce your order.
5. Ship out and offer the trach number.
6. After-sale services and feedback.
