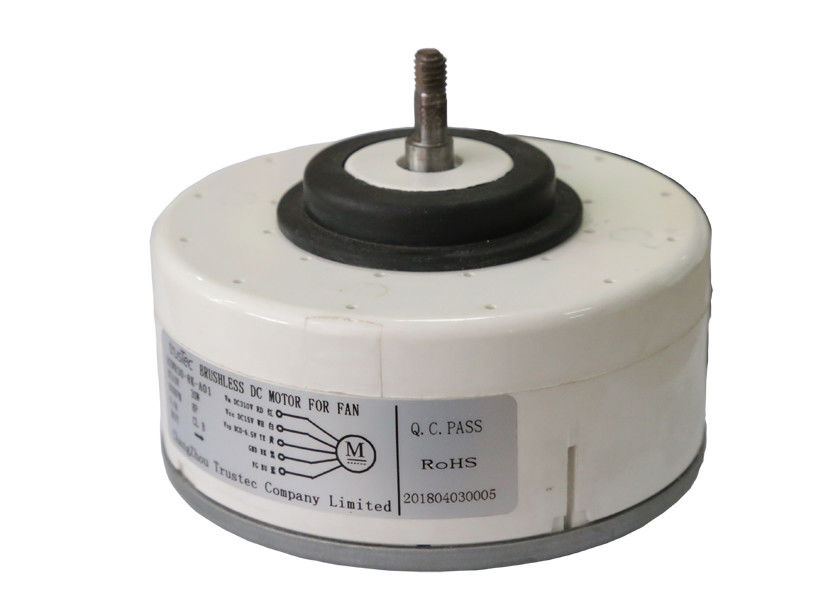

Resin Packing Brushless Dc Electric Motor LG Panasonic Air Conditioner Use

Resin Packing Brushless Dc Electric Motor LG Panasonic Air Conditioner Use

  • Resin Packing Brushless Dc Electric Motor LG Panasonic Air Conditioner Use
Resin Packing Brushless Dc Electric Motor LG Panasonic Air Conditioner Use
Product Details:
Place of Origin: China
Brand Name: trusTec
Certification: CE
Model Number: ZDK-30-8
Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs
Price: Negotiable (FOB/CNF/CIF)
Packaging Details: Standard carton packing, foam board inside for protection.
Delivery Time: 15 work days after order confirmation.
Payment Terms: T/T, L/C
Supply Ability: 100,000 pcs per month
Contact Now
Detailed Product Description
Power: 30 W Voltage: DC 310V
Insulation Class: B Rotation: CCW
Speed: 1500RPM Pole: 8P
High Light:

12v dc electric motor

,

12 volt dc electric motor



resin packing dc electric motors, LG Panasonic air conditioner use fan motor



Product features:

Application: split air conditioner indoor unit, air purifier, air blower, fan etc

Input voltage: DC310V

Motor type: brushless DC motor

Drive type; sensor or sensorless

Output rotation: CW or CCW

Protection: current limit

Insulation class: E(120℃)

Frame material: BMC

Lead wire exit: variable



Product specification:
Listed are representative motors, only for reference, dimensions and parameters can be customized according to customer requirements, ODM/OEM offered.

Model

Power

/W

Voltage

/V

Speed

/RPM

Noise

/dB

ZDK-30-8 10-30 DC310 ~1500 ≤25
ZDK-60-8 40-60 DC310 ~1550 ≤25



Installation Sizes:

Resin Packing Brushless Dc Electric Motor LG Panasonic Air Conditioner Use 0

Resin Packing Brushless Dc Electric Motor LG Panasonic Air Conditioner Use 1
