Home ProductsCommercial Exhaust Fan Motor

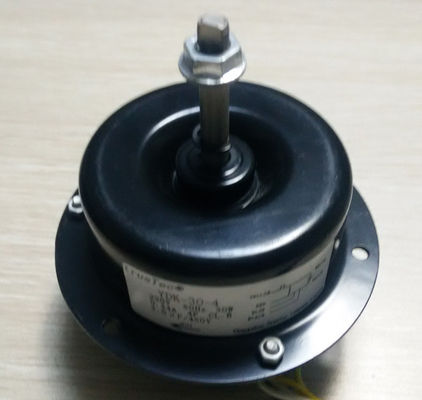

Single Phase Asynchronous 2800RPM Exhaust Cooler Motor

Single Phase Asynchronous 2800RPM Exhaust Cooler Motor

  • Single Phase Asynchronous 2800RPM Exhaust Cooler Motor
  • Single Phase Asynchronous 2800RPM Exhaust Cooler Motor
  • Single Phase Asynchronous 2800RPM Exhaust Cooler Motor
Single Phase Asynchronous 2800RPM Exhaust Cooler Motor
Product Details:
Place of Origin: Changzhou, China
Brand Name: trusTec
Certification: CE/ROHS/CCC/SGS/ISO9001
Model Number: YDK80-40-2
Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs
Price: Negotiable (FOB/CNF/CIF/DOOR TO DOOR)
Packaging Details: Standard carton packing, foam board inside for protection.
Delivery Time: 15 days fresh products after order confirmation.
Payment Terms: T/T, Western Union, Paypal, L/C
Supply Ability: 100,000 pcs per month
Contact Now
Detailed Product Description
Product Name: Centrifugal Fan Motor Power: 40 W
Voltage: 220 V Frequency: 50 Hz
AMPS: 0.58A Application: Fresh Air Ventilation System
Speed: 2800RPM
High Light:

2800RPM exhaust cooler motor

,

Asynchronous exhaust cooler motor

,

0.58A exhaust cooler motor

Small Centrifugal Fan Motor Single Phase Asynchronous 2800 RPM





Technical Parameters:



Model

Speed

/RPM

Rated Current

/A

Frequency

/Hz

Power

/W

Voltage

/V

YDK80-20-4 1200 0.18 50 20 220
YDK80-40-4 1200 0.28 50 40 220
YDK80-40-2 2800 0.58 50 40 220



Note: Listed are representative motors, only for reference, dimensions can be customized according to customer requirements.



Product Features:



1. Nickel plating for shaft, electrophoretic coating for enclosure.

2. Reasonable structure, low temperature rise, low noise, small vibration.



Product Applications:



1. Fresh air ventilation system.

2. Kitchen and bathroom ventilation equipment.

3. To ensure the quality of the indoor air.

4. To ensure that the indoor hot and cold load (temperature) is basically not affected by the new wind.

5.100% pure copper and high efficiency.



Main advantages:



1. Our mature management is born from motor technicians.

2. OEM and ODM offer.

3. UL, CCC, ROHS, CE certificate and strict quality control.

4. We have had more than 10 years export experience, especially to Mid-east and South America.

5. Own a competent and honest sales team, always efficient to all your requirements.

6.We have been in this industry for over 17 years now.



FAQ:



Q1- What is the warranty of the motors?

The warranty is 18 months on the production date, under the warranty we will afford the shipping cost to send the replacement.



Q2- What's the motors applications ?

All the motors are widely used in HVC&R line.



Q3- Can you design the motor according to the different request?

Yes, we can offer the ODM.



Q4- Do you have distributors overseas?

Yes. We have distributors in USA, Holland, Spain, Turkey, Sudan, UAE, KSA...



Q5- What is the most important advantage for the export?

Besides the competitive price with the good quality, the critical point is the quick response, the efficient export team and the fast delivery time.



Q6- How many motors is 1*20GP container or 1*40HQ container loading?

2000-2200pcs for 1*20GP

4300-4500pcs for 1*40HQ

We always make full use of the space to save for the customers.



Q7- How to get the accurate offer?

The precise price will be quoted after checking the specification and mounting dimension of the motor.



Description:



As a professional motor manufacturer, we are specialized in designing and producing all kinds of motors for room, commercial and central air conditioners.



Our main products are fan coil unit motors, motors for split, cabinet, window air-conditioner, high static pressure motors, ceiling air-conditioner motors, air cooling motors, single and three phase motors, kinds of pump motors, PG motor and DC brushless motors.



Our products have been approved by RoHS, CCC, CE and UL certificates, and the products have been being exported to the main market such as North America, Europe and Mid-east.
