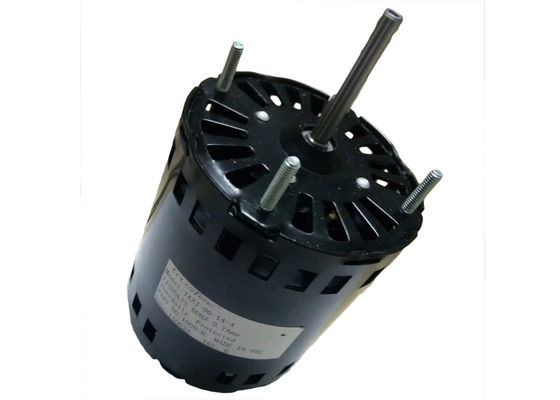

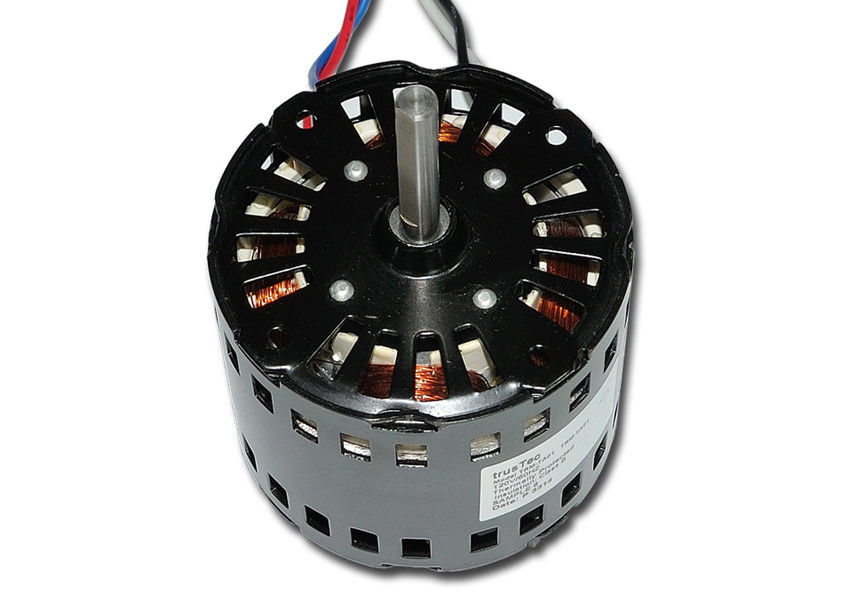

Single Shaft Two Pole Single Phase Shaded Pole Motor 45W 60Hz 120V

Single Shaft Two Pole Single Phase Shaded Pole Motor 45W 60Hz 120V

  • Single Shaft Two Pole Single Phase Shaded Pole Motor 45W 60Hz 120V
  • Single Shaft Two Pole Single Phase Shaded Pole Motor 45W 60Hz 120V
  • Single Shaft Two Pole Single Phase Shaded Pole Motor 45W 60Hz 120V
Single Shaft Two Pole Single Phase Shaded Pole Motor 45W 60Hz 120V
Product Details:
Place of Origin: China
Brand Name: trusTec
Certification: CE
Model Number: YZJ-45-2
Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs
Price: Negotiable (FOB/CNF/CIF)
Packaging Details: Standard carton packing, foam board inside for protection.
Delivery Time: 15 days fresh products after order confirmation.
Payment Terms: T/T, L/C
Supply Ability: 100,000 pcs per month
Contact Now
Detailed Product Description
Product Name: Shaded Pole Fan Motor Application: Refrigerator Fan Motor
Power: 45 W Voltage: 120 V
Frequency: 60Hz Current: 2.4A
Speed: 3000 RPM Motor Diameter: 3.3 Inch
High Light:

3.3" motor

,

capacitor start capacitor run motor

Single Shaft Two Pole Single Phase Shaded Pole Motor 45W 60Hz 120V



Technical Parameters:



Model

Output power

/W

Voltage

/V

Frequency

/Hz

Rated current

/A

Pole

Speed

/RPM

YZJ-45-2 45W 120 60 2.4 2 2800
YZJ-50-2 50W 115 60 2.5 2 2800
YZJ-60-2 60W 120 60 1.6 2 2800
YZJ-5-4 5W 115 60 0.58 4 1550
YZJ-10-4 10W 115 60 0.70 4 1350
YZJ-15-4 15W 230 60 0.23 4 1550
YZJ-20-4 20W 115 60 1.2 4 1450
YZJ-25-4 25W 115 60 1.55 4 1400
YZJ-30-4 30W 230 60 0.75 4 1450
YZJ-30-4 30W 115 60 1.45 4 1500
YZJ-35-4 35W 115 60 1.6 4 1500
YZJ-40-4 40W 115 60 2.0 4 1500
YZJ-45-4 45W 115 60 2.2 4 1450
YZJ-55-4 55W 230 60 0.6 4 1500



Note: Listed are representative motors, only for reference, dimensions can be customized according to customer requirements.



Product Features:



1. Nickel plating for shaft, electrophoretic coating for enclosure.

2. Reasonable structure, low temperature rise, low noise, small vibration.



Product Applications:



1. Fan blower

2. Ventilating fan

3. Gas furnace

4. Sewage pump



Main advantages:



1. Our top management is born from motor technicians.

2. OEM and ODM offer.

3. UL, CCC, ROHS, CE certificate and strict quality control.

4. We have had more than 10 years export experience, especially to Mid-east and South America.



Our mission:



1. Provide competitive and premium quality solutions, products and services to our valuable clients.

2. Trained, knowledgeable and committed staff with strong synergy.

3. Seek growth through innovative solutions & market expansion.

4. Continuously improve entire business process.

5. Ensure prompt and efficient pre & post sales services.

6. We maintain excellent relationships with our stakeholders.



FAQ:



Q1- What is the warranty of the motors?

The warranty is 18 months on the production date, under the warranty we will afford the shipping cost to send the replacement.



Q2- What is the application of the motors?

All the motors are widely used in HVC&R line.



Q3- Can you design the motor according to the different request?

Yes, we can offer the ODM.



Q4- Do you have distributors overseas?

Yes. We have distributors in USA, Holland, Spain, Turkey, Sudan, UAE, KSA...



Q5- What is the most important advantage for the export?

Besides the competitive price with the good quality, the critical point is the quick response, the efficient export team and the fast delivery time.



Q6- How many motors is 1*20GP container or 1*40HQ container loading?

2000-2200pcs for 1*20GP

4300-4500pcs for 1*40HQ

We always make full use of the space to save for the customers.



Q7- How to get the accurate offer?

The precise price will be quoted after checking the specification and mounting dimension of the motor.



Description:



As a professional motor manufacturer, we are specialized in designing and producing all kinds of motors for room, commercial and central air conditioners.



Our main products are fan coil unit motors, motors for split, cabinet, window air-conditioner, high static pressure motors, ceiling air-conditioner motors, air cooling motors, single and three phase motors, kinds of pump motors, PG motor and DC brushless motors.



Our products have been approved by RoHS, CCC, CE and UL certificates, and the products have been being exported to the main market such as North America, Europe and Mid-east.
