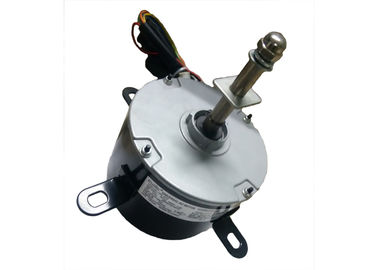

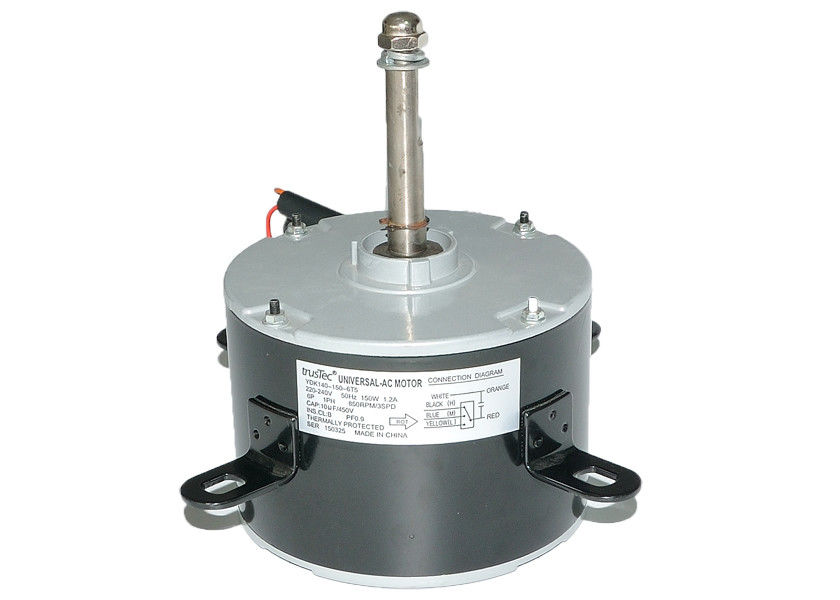

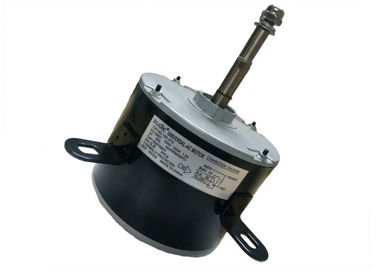

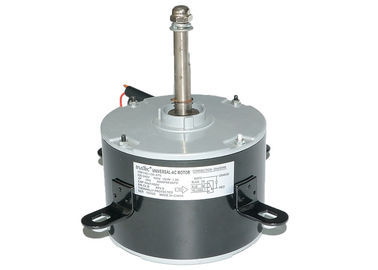

3 Speed Evaporative Cooler Motor 450V 10μF Capacitor Running Low Noise

3 Speed Evaporative Cooler Motor 450V 10μF Capacitor Running Low Noise

  • 3 Speed Evaporative Cooler Motor 450V 10μF Capacitor Running Low Noise
  • 3 Speed Evaporative Cooler Motor 450V 10μF Capacitor Running Low Noise
  • 3 Speed Evaporative Cooler Motor 450V 10μF Capacitor Running Low Noise
3 Speed Evaporative Cooler Motor 450V 10μF Capacitor Running Low Noise
Product Details:
Place of Origin: China
Brand Name: trusTec
Certification: CE
Model Number: YDK140-150-6T5
Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs
Price: Negotiable (FOB/CNF/CIF)
Packaging Details: Standard carton packing, foam board inside for protection.
Delivery Time: 15 days fresh products after order confirmation.
Payment Terms: T/T, L/C
Supply Ability: 100,000 pcs per month
Contact Now
Detailed Product Description
Insulation Class: B Output Power: 150W
Motor Diameter: 140mm Frequency: 50Hz
Pole: 6 Voltage: 220-240V
Rated Current: 1.2A Capacitance: 10μF/450V
Product Name: Air Cooler Motor
High Light:

cooler fan motor

,

cooling fan motor

3 Speed Evaporative Cooler Motor 450V 10μF Capacitor Running Low Noise







Product specification:


Listed are representative motors, only for reference, dimensions and parameters can be customized according to customer requirements, OEM/ODM offered .



Model

Power

HP

Voltage

V

Frequency

Hz

Speed
RPM

Rotation Insulation Class
YDK140-150-6T5 1/5 220-240 50 850/3 SPD CCW B
YDK160-185-4A 1/4 115/127 50/60 1425/1725 CW-SE B
YDK160-185-4A2 1/4 220/230 50/60 1425/1725 CW-SE B
YDK160-245-4A 1/3 115/127 50/60 1425/1725 CW-SE B
YDK160-245-4A2 1/3 220/230 50/60 1425/1725 CW-SE B
YDK160-375-4A 1/2 115/127 50/60 1425/1725 CW-SE B
YDK160-375-4A2 1/2 220/230 50/60 1425/1725 CW-SE B
YDK160-550-4A 3/4 115/127 50/60 1425/1725 CW-SE B
YDK160-550-4A2 3/4 220/230 50/60 1425/1725 CW-SE B
YDK160-735-4A 1 115/127 50/60 1425/1725 CW-SE B
YDK160-735-4A2 1 220/230 50/60 1425/1725 CW-SE B




Product materials:


1. Bearing: rolling bearing, NSK low noise high quality material.
2. Brass terminals plug-in.
3. Shaft: single shaft, nickel plating treatment.
4. Enclosure: electrophoretic coating treatment.
5. Winding: 100% pure copper.



Product features:


1. Single phase motor with steel housing, designed for cooling system, evaporative cooler etc, suit for hot weather environments.
2. High quality winding with excellent insulation and heat transmission properties.
3. Nice appearance, high starting torque, low starting current, smooth turning, low temperature rise, low vibration, low noise and great overload performance.
4. Saving Energy, higher efficiency.
5. Long life, Equipped with overheating protection, good Protection against Humidity.
6. Models with power 1/5HP, 1/4HP, 1/3HP, 1/2HP, 3/4HP, 1HP.
7. Special motors can be designed according to customer's requirement. Pure copper coil or copper clad aluminum coil can be chosen.
8. Be wildly used in Iraq, Sudan, Iran, Saudi and other gulf country market.
9. Other name: cooler motor, air conditioner motor, ac motor, fan motor, blower motor.

Product use:
1. Various kinds of air coolers, commercial and residential.
2. Air conditioning system.


Strong points:

1. Most professional & experienced engineers design the highly reasonable structure for the motors.
2. High precision automatic line and test equipment ensure the most stable quality.
3. Abundant scale and capacity promise the market supply ability and continuous operation.

About company:


Changzhou Trustec Company is focus on the motor design and production for 17 years.
The monthly capacity can achieve to 100,000pcs in HVAC industry.
The brand name is trusTec, her lively meaning is to TRUST the Teams' Efficiency and Competence.
The main exporting market is North America, The Nerthlands and Saudi Arabia.


FAQ:

1. Where is your factory?
We are located at Changzhou city of China Jiangsu province, which is also called as motor producing base, the world's outstanding motor manufacturers sets factories here.
2. Can you provide the samples for evaluations before oders?
Nomally we provide each model 1 piece sample for free and customers handle the delivery cost.
3. Are you a manufacturer or trading company?
We are a motor factory and in the industry for 17 years, you are welcomed to visit our factory at any time.
