Place of Origin: | China |
Brand Name: | trusTec |
Certification: | UL Approval E529388,CE approval |
Model Number: | YDK140-150-6T5 |
Minimum Order Quantity: | 200pcs |
---|---|
Price: | Negotiable (FOB/CNF/CIF) |
Packaging Details: | Standard carton packing, foam board inside for protection. |
Delivery Time: | 15 days fresh products after order confirmation. |
Payment Terms: | T/T, L/C |
Supply Ability: | 100,000 pcs per month |
Insulation Class: | B | Output Power: | 150W |
---|---|---|---|
Motor Diameter: | 140mm | Frequency: | 50Hz |
Pole: | 6 | Voltage: | 220-240V |
Rated Current: | 1.2A | Capacitance: | 10μF/450V |
Product Name: | Air Cooler Motor | ODM Solutions: | Customized AC And EC Motors |
ODM Solutions: | Customized AC And EC Motors | ODM Solutions: | ODM Solutions: Customized AC And EC Motors |
Highlight: | air cooler fan motor,cooler fan motor |

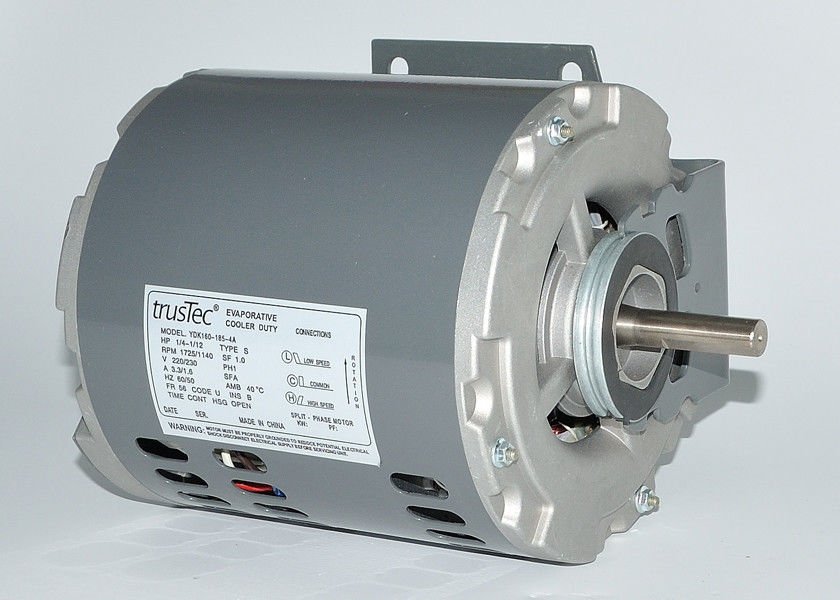

Single Phase Asynchronous AC Air Cooler Motor With 2000 Air Flow
YDK series single-phase capacitor start induction motor is suitable for any where a larger starting torque and the starting current to be limited are required,and is used as driving motor of air compressors,refrigerators,medical apparatus and other small machines in which full-load starting is demanded.
These series motors aree of totally enclosed fan-cooled and have three frame sixes 09,1and 2.The frame are made of cast iron or cast aluminium according to the requests.
OPERATING CONDITIONS
Ambient temperature: -15oC-40oC
Altitude: not exceed 1000m
Rated voltage:110V,115V,120V,220V,240V
Rated frequency: 50Hz/60Hz
Protection class: IP44/IP54
insulation class: B/F
Cooling method: IC411
Duty:S1
Model |
Power HP |
Voltage V |
Frequency Hz |
Speed |
Rotation | Insulation Class |
YDK140-150-6T5 | 1/5 | 220-240 | 50 | 850/3 SPD | CCW | B |
YDK160-185-4A | 1/4 | 115/127 | 50/60 | 1425/1725 | CW-SE | B |
YDK160-185-4A2 | 1/4 | 220/230 | 50/60 | 1425/1725 | CW-SE | B |
YDK160-245-4A | 1/3 | 115/127 | 50/60 | 1425/1725 | CW-SE | B |
YDK160-375-4A | 1/2 | 115/127 | 50/60 | 1425/1725 | CW-SE | B |
YDK160-375-4A2 | 1/2 | 220/230 | 50/60 | 1425/1725 | CW-SE | B |
YDK160-550-4A2 | 3/4 | 220/230 | 50/60 | 1425/1725 | CW-SE | B |
YDK160-735-4A | 1 | 115/127 | 50/60 | 1425/1725 | CW-SE | B |
YDK160-735-4A2 | 1 | 220/230 | 50/60 | 1425/1725 | CW-SE | B |
Our service:
01. Professional generator manufacturer with R&D capacity.
02. Reliable quality,reasonable price,desirable service.
03.Tell us your demand,provide what you want.
04.Contact us now,let's make a deal.......
FAQ:
Q1:What material of our generator specific?
----100% copper wire.
Q2: How much is the output power.
---- 100%output
Q3:How long is the warranty of the product?
---- every products have different warranty.
Q4:Product certificate
---- We have certificate:ISO9001,CE certifivate
Q5:Payment term
----T/T or L/C
Q6:Delivery time
----15 -20 days after receiving the T/T deposit or original L/C
