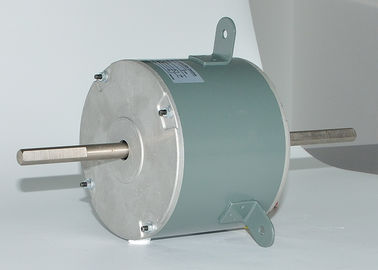

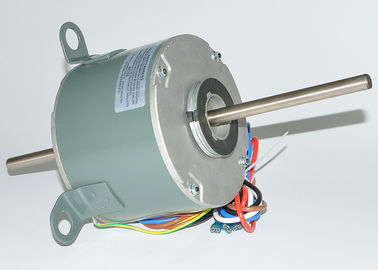

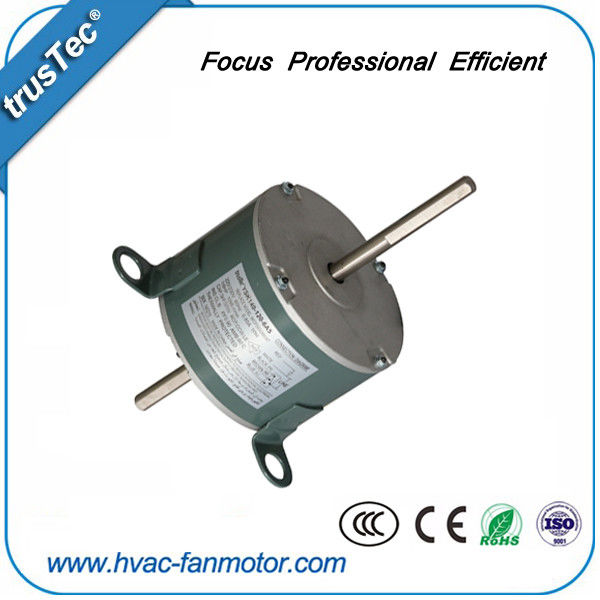

220V 1/5HP YDK/YSK139/140 Double Shaft Window Air Conditioner Unit Blower Fan Motor
Place of Origin:China
Brand Name:trusTec
Certification:UL Approval E529388，CE approval
Model Number:YDK/YSK139/140
Minimum Order Quantity:200pcs
Price:Please contact for a quote
Payment Terms:T/T, L/C
Supply Ability:100,000 pcs per month
Tags:
Product Details
Highlight:
1HP Air Conditioner Blower Fan Motor
,1800RPM Air Conditioner Blower Fan Motor
,5HP Air Conditioner Blower Fan Motor
Product Name:
Window Air Conditioner Fan Motor
Voltage:
110-120V / 220-240V 1PH
Frequency:
50/60Hz
Power:
1/8-1HP
Speed:
600-1800RPM 4/6P
Rotation:
CW/CCW/Reversible
ODM Solutions:
ODM Solutions: Customized AC And EC Motors
Product Description
Window ac unit air conditioner blower fan motor, universal air conditioner fan motor-YDK/YSK139/140
Technical parameters:
| Model series | YDK/YSK140 |
| Voltage | 110-120V / 220-240V 1PH |
| Frequency | 50Hz / 60Hz / 50/60Hz |
| Power | 1/8-1HP 100W-750W |
| Speed | 600-1800RPM 4/6P |
| Speeds | single/multi speeds |
| Rotation | CW/CCW/Reversible |
| Insulation | B/F |
| Proof | IP20-IP54 |
| Protection | thermally protected |
| Enclosure | totally enclosed/open ventilated |
|
Model
|
Voltage
|
Frequency
|
Power
|
Power
|
Speed
|
|
YSK140/30-4-150-1
|
230V
|
50Hz
|
150W |
1/5HP
|
1200RPM/3 SPD
|
|
YSK140/35-4-185-1
|
230V
|
50Hz
|
185W
|
1/4HP
|
1300RPM/3 SPD
|
| YSK140-245-4 | 208-230V | 60Hz | 245W | 1/3HP | 1625RPM/3 SPD |
| YSK140-375-4 | 208-230V | 60Hz | 375W | 1/2HP | 1625RPM/3 SPD |
| YSK140-550-6 | 208-230V | 60Hz | 550W | 3/4HP | 1075RPM |
Listed are representative motors, technical parameter and mounting dimension can be customized according to customer's requirement.
Product Features:
Use NSK low noise high quality ball bearing;
Nickel plating for shaft, electrophoretic coating for enclosure;
Reasonable structure, high efficiency, low temperature rise, low noise, small vibration.
