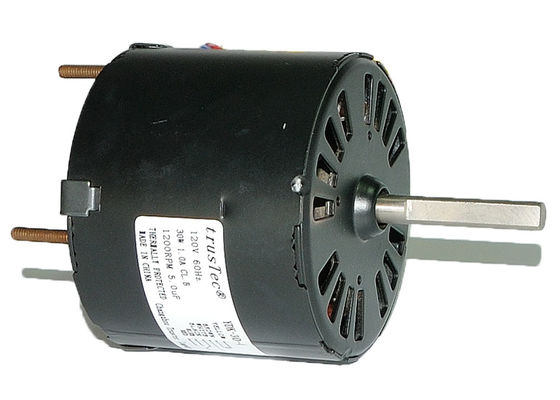

3200 RPM 140 W 3.3 Inch Motor , Vent Fan Motor Small Vibration

3200 RPM 140 W 3.3 Inch Motor , Vent Fan Motor Small Vibration

  • 3200 RPM 140 W 3.3 Inch Motor , Vent Fan Motor Small Vibration
  • 3200 RPM 140 W 3.3 Inch Motor , Vent Fan Motor Small Vibration
  • 3200 RPM 140 W 3.3 Inch Motor , Vent Fan Motor Small Vibration
3200 RPM 140 W 3.3 Inch Motor , Vent Fan Motor Small Vibration
Product Details:
Place of Origin: China
Brand Name: trusTec
Certification: CE
Model Number: TDR-140-2
Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs
Price: Negotiable (FOB/CNF/CIF)
Packaging Details: Standard carton packing, foam board inside for protection.
Delivery Time: 15 days fresh products after order confirmation.
Payment Terms: T/T, L/C
Supply Ability: 100,000 pcs per month
Contact Now
Detailed Product Description
Application: Ventilation Product Product Name: 3.3 Inch Motor
Power: 140 W Voltage: 230 V
Frequency: 60 Hz Current: 1.94 A
Speed: 3200 RPM
High Light:

3.3" motor

,

capacitor start capacitor run motor

3200 RPM 140 W 3.3 Inch Motor , Vent Fan Motor Small Vibration





Technical Parameters:



Note: Listed are representative motors, only for reference, dimensions can be customized according to customer requirements.



Model

Output power

/W

Voltage

/V

Frequency

/Hz

Rated current

/A

Pole

Speed

/RPM

TDR-140-2 140 120 60 1.94 2 3200
TDR-180-2 180 120 60 2.51 2 3200
TDR-200-2 200 115 60 3.11 2 3200
TDR-205-2 205 230 50 1.31 2 3200
TDR-6-4 6 110 60 0.27 4 1550
TDR-15-4 15 115 60 0.38 4 1550
TDR-15-4 15 230 60 0.17 4 1550
TDR-20-4 20 115 60 0.51 4 1550
TDR-25-4 25 115 60 0.6 4 1550
TDR-50-4 50 115 60 1.07 4 1550
TDR-50-4 50 120 60 0.89 4 1550
TDR-60-4 60 115 60 1.08 4 1500
TDR-65-4 65 120 60 1.16 4 1450
TDR-70-4 70 110 60 1.45 4 1550
TDR-75-4 75 115 60 1.15 4 1550
TDR-115-4 115 115 60 2.2 4 1400
TDR-130-4 130 115 60 2.14 4 1550
TDR-130-4 130 120 60 2.22 4 1600
TDR140-4 140 115 60 2.20 4 1450
TDR-170-4 170 115 60 2.84 4 1630
TDR-225-4 225 115 60 3.2 4 1500





Product Features:



1. Nickel plating for shaft, electrophoretic coating for enclosure.

2. Reasonable structure, low temperature rise, low noise, small vibration.





Product Applications:



1. Fan blower

2. Ventilating fan

3. Gas furnace

4. Kitchen and bathroom ventilation equipment





Our Service:



1. Warranty - 18 months on the production date

2. ODM offer

3. The most efficient and competent export team

4. The most efficient lead time

5. Professional team offer fast response





Main advantages:



1. Our top management is born from motor technicians.

2. OEM and ODM offer.

3. UL, CCC, ROHS, CE certificate and strict quality control.

4. We have had more than 10 years export experience, especially to Mid-east and South America.

5. Own a competent and honest sales team, always efficient to all your requirements.





FAQ:



Q1- What is the application of the motors?

All the motors are widely used in HVC&R line.

What is the warranty of the motors?



Q2- The warranty is 18 months on the production date, under the warranty we will afford the shipping cost to send the replacement.



Q3- Can you design the motor according to the different request?

Yes, we can offer the ODM.



Q4- Do you have distributors overseas?

Yes. We have distributors in USA, Holland, Spain, Turkey, Sudan, UAE, KSA...



Q5- What is the most important advantage for the export?

Besides the competitive price with the good quality, the critical point is the quick response, the efficient export team and the fast delivery time.



Q6- How many motors is 1*20GP container or 1*40HQ container loading?

2000-2200pcs for 1*20GP

4300-4500pcs for 1*40HQ

We always make full use of the space to save for the customers.



Q7- How to get the accurate offer?

The precise price will be quoted after checking the specification and mounting dimension of the motor.



Company Description:



As a professional motor manufacturer, we are specialized in designing and producing all kinds of motors for room, commercial and central air conditioners.



Our main products are fan coil unit motors, motors for split, cabinet, window air-conditioner, high static pressure motors, ceiling air-conditioner motors, air cooling motors, single and three phase motors, kinds of pump motors, PG motor and DC brushless motors.



Our products have been approved by RoHS, CCC, CE and UL certificates, and the products have been being exported to the main market such as North America, Europe and Mid-east.
