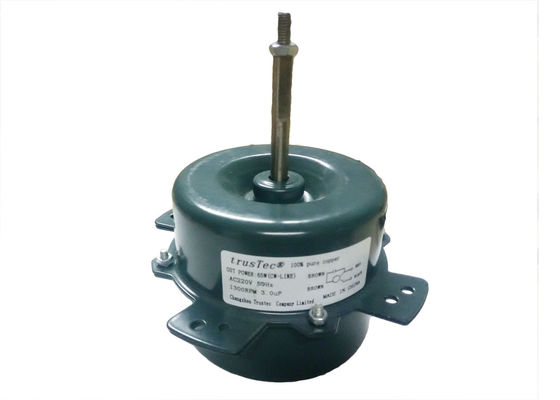

Air Conditioner Outdoor Fan Motor Single Shaft 6 Pole High Efficiency

Air Conditioner Outdoor Fan Motor Single Shaft 6 Pole High Efficiency

  • Air Conditioner Outdoor Fan Motor Single Shaft 6 Pole High Efficiency
  • Air Conditioner Outdoor Fan Motor Single Shaft 6 Pole High Efficiency
  • Air Conditioner Outdoor Fan Motor Single Shaft 6 Pole High Efficiency
Air Conditioner Outdoor Fan Motor Single Shaft 6 Pole High Efficiency
Product Details:
Place of Origin: China
Brand Name: trusTec
Certification: CE
Model Number: YDK120-70-6
Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs
Price: Negotiable (FOB/CNF/CIF)
Packaging Details: Standard carton packing, foam board inside for protection.
Delivery Time: 15 days fresh products after order confirmation.
Payment Terms: T/T, L/C
Supply Ability: 100,000 pcs per month
Contact Now
Detailed Product Description
Power: 70W Shaft: Single Shaft
Voltage: 220-240V Frequency: 50/60Hz
Pole: 6 Current: 0.65A
Usage: Fresh Air Ventilation System Product Name: Outdoor Fan Motor
High Light:

hvac fan motor

,

universal fan motor

Air Conditioner Outdoor Fan Motor Single Shaft 6 Pole High Efficiency





Motor Application:



Split air conditioner outdoor unit and fresh air ventilation system



Technical Parameters:



Model Number

Output Power

/W

Voltage

/V

Frequency

/Hz

Rated Speed

/RPM

Rated Current

/A

YDK95-20-6 20 220-240 50/60 830 0.25
YDK95-25-6 25 220-240 50/60 830 0.27
YDK95-30-6 30 220-240 50/60 830 0.3
YDK95-35-6 35 220-240 50/60 800 0.33
YDK95-40-6 40 220-240 50/60 850 0.4
YDK120-50-6 50 220-240 50/60 850 0.55
YDK120-55-6 55 220-240 50/60 850 0.57
YDK120-60-6 60 220-240 50/60 850 0.6
YDK120-70-6 70 220-240 50/60 850 0.65



Note: Listed are representative motors, only for reference, dimensions can be customized according to customer requirements. OEM/ODM can be offered.



Product Features:



High efficiency, low noise, small vibration.
Nickel plating for shaft, electrophoretic coating for enclosure.
Use NSK low noise high quality rolling bearing.

Copper winding design.
Reasonable structure.

Steel end cap plated, rolled steel shell or resin packed.



Main Advantages:



Top management team.
OEM and ODM offer based on much industry experience.
UL, CCC, ROHS, CE certificate and strict quality control.
More than 10 years export experience, especially to Mid-east and South America.
Competent and honest sales team, always efficient to all your requirements.



Services:



Delivery Terms: FOB, CIF, EXW.
Payment Terms: T/T, L/C, Western Union, PayPal.
Payment Condition: 30% deposit in advance, 70% balance before delivery.
Delivery Time: 15-30 days after deposit (if T/T).
Shipping: By sea, by air and by express delivery



Company Description:



1. As a professional motor manufacturer, we are specialized in designing and producing all kinds of motors for room, commercial and central air conditioners.

2. Our main products are fan coil unit motors, motors for split, cabinet, window air-conditioner, high static pressure motors, ceiling air-conditioner motors, air cooling motors, single and three phase motors, kinds of pump motors, PG motor and DC brushless motors.

3. Our products have been approved by RoHS, CCC, CE and UL certificates, and the products have been being exported to the main market such as North America, Europe and Mid-east.



FAQ:



Q: Are you a factory or trading company?
A: We are an experienced factory.



Q: Which countries are your products exported to?
A: Our fan motors are widely used in North America, South America, Mid-east, Europe and South-east Asia etc.



Q: How can I get some samples?
A: We are able to offer customer free sample and customer will deal with the delivery cost.



Q: How does your factory do regarding quality control?
A: Quality is priority in trusTec company. The QA & QC department always attach great importance to quality control from the very beginning to the very end. Our factory has passed ISO9001, IS014001 and UL, CE, ROHS etc certification.
