Home ProductsUniversal Fan Motor

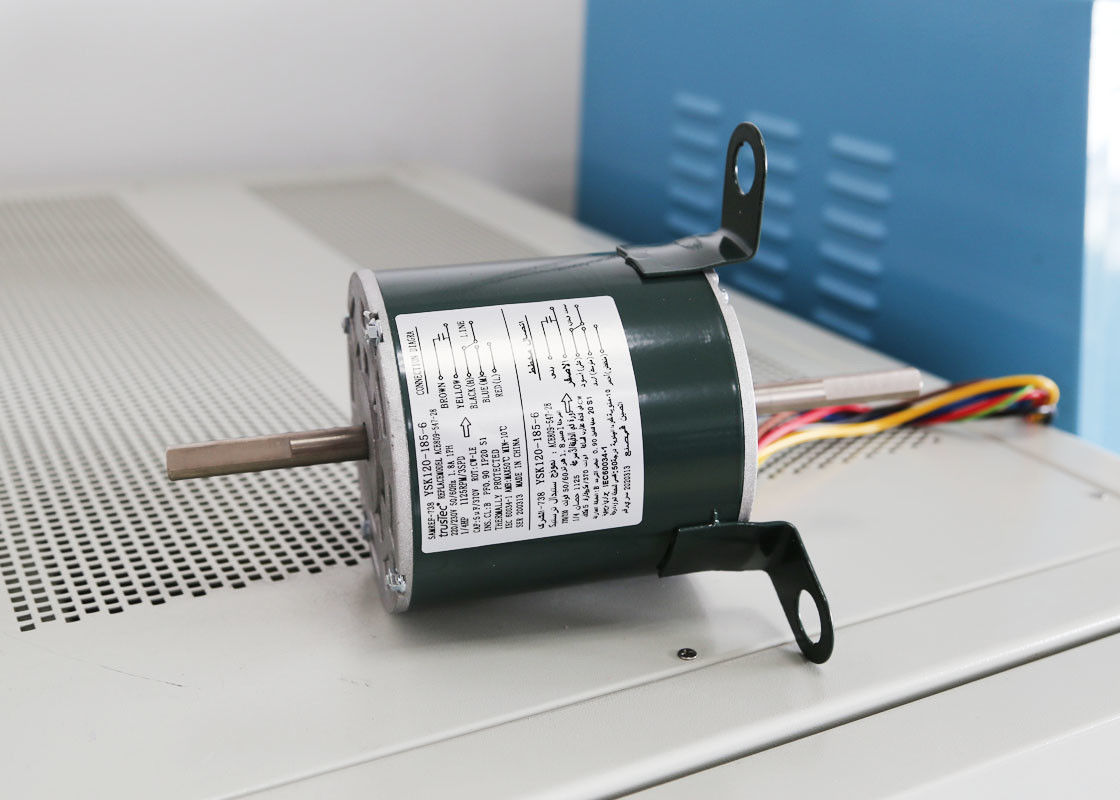

CTM-738 YSK120-185-6 AC809-547-28 Window AC Universal Fan Motor 220V Double Shaft with Leg

CTM-738 YSK120-185-6 AC809-547-28 Window AC Universal Fan Motor 220V Double Shaft with Leg

  • CTM-738 YSK120-185-6 AC809-547-28 Window AC Universal Fan Motor 220V Double Shaft with Leg
  • CTM-738 YSK120-185-6 AC809-547-28 Window AC Universal Fan Motor 220V Double Shaft with Leg
CTM-738 YSK120-185-6 AC809-547-28 Window AC Universal Fan Motor 220V Double Shaft with Leg
Product Details:
Place of Origin: China
Brand Name: trusTec
Certification: CE
Model Number: YSK120-185-6
Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs
Price: Negotiable (FOB/CNF/CIF)
Packaging Details: Standard carton packing, foam board inside for protection.
Delivery Time: 15 days fresh products after order confirmation.
Payment Terms: T/T, L/C
Supply Ability: 100,000 pcs per month
Contact Now
Detailed Product Description
Application: Window Air Conditioner Power: 185W
Frequency: 50/60 Hz Voltage: 208-240 V
Insulation Class: B Speed: 1125RPM/3SPD
High Light:

1125RPM window ac motor

,

185W window ac motor

,

YSK120-185-6

CTM-738 YSK120-185-6 With Leg (Side Three Leg) Universal Double Shaft for Window AC AC809-547-28



Product specification:
Listed are representative motors, only for reference, dimensions and parameters can be customized according to customer requirements, ODM/OEM offered.



Model Power

Voltage

/V

Frequency

/Hz

Speed

/RPM

OEM Model
CTM-1132 YSK120-105-6A 1/7HP 220/230 50/60 825/3 5KCP29TUE1195
CTM-738 YSK120-185-6 1/4HP 220/230 50/60 1125/3 AC809-547-28
CTM-511 YSK140-120-6A2 1/6HP 220/230 50/60 1000/2 5KCP39DGM511T
CTM-635T YSK140-125-6A2 1/6HP 220/230 50/60 1000/3 5KCP39DGM635T
CTM-004 YSK140-120-6A5 1/6HP 220/230 50/60 1095/3 5KCP39DGM004T
CTM-5158 YSK140-120-6A7 1/6HP 220/230 50/60 1050/3 K55HXPKG-5158
CTM-672 YSK140-150-6A2 1/5HP 220/230 50/60 1075/3 5KCP39FGM672S
CTM-635C YSK140-150-6A3 1/5HP 220/230 50/60 1050/3 5KCP39HGS635C
CTM-4440 YSK140-150-6A4 1/5HP 220/230 50/60 1115/3 5KCP39FGM4440
CTM-5966 YSK140-150-6A15 1/5HP 220/230 50/60 1100/3 K55HXLEK-5966
CTM-736 YSK140-180-6A 1/4HP 220/230 50/60 1075/3 5KCP29MGE736S
CTM-635S YSK140-185-6A3 1/4HP 220/230 50/60 1100/3 5KCP39HGS635S
CTM-307 YSK140-245-6A2 1/3HP 220/230 50/60 1075/3 5KCP39HGM307AT
CTM-A30 YSK140-245-4A 1/3HP 220/230 50/60 1335/3 F48U02A30




Product advantages:





1. Performance

a. Outstanding ODM and product matching ability.

b. The mature technology of trusTec company can ensure the most reliable performance of its motors.




2. Material

a. All motor components meet with the international standard of environmental protection requirement.

b. Stator and rotator are made of 100% pure silicon steel, which makes the motor temperature rise lower in strict running environment.

c. Enameled wire is made of 100% pure copper, which makes the motor longer operation life.



3.Use NSK low noise high quality rolling bearing.



4. Appearance

a. Trustec brand motor enclosure is beautiful and flawless through surface electrophoretic coating treatment, and different enclosure colors are available, such as black, blue gray, blackish green etc.

b. All shafts are processed through high precision computer numerical control CNC machine tools, this makes the shaft dimensions are controlled accurately; The shaft surface is treated with nickel plating to accomplish rust-proof function.





Purpose usage:

This motor is specially designed and manufactured for beer dispensers & machines and similar purpose equipment, where the beer culture is popular such as Russia, Europe etc.

More specific parameters can be customized according to application.





Our services:

1. Barrier-free communication, fast response to customer inquiry.

2. Short delivery time to promise customers' promise.

3. We understand well of the fan motor market and can design customized motors for various customers to help them win with more advanced characteristics.
