Place of Origin: | China |
Brand Name: | trusTec |
Certification: | UL Approval E529388,CE approval |
Model Number: | YDK160-185-4A2 |
Minimum Order Quantity: | 200pcs |
---|---|
Price: | Negotiable (FOB/CNF/CIF) |
Packaging Details: | Standard carton packing, foam board inside for protection. |
Delivery Time: | 15 days fresh products after order confirmation. |
Payment Terms: | T/T, L/C |
Supply Ability: | 100,000 pcs per month |
Pole: | 4 | Application: | Air Cooler |
---|---|---|---|
Voltage: | 220/230V | Speed: | 1425/1725 RPM |
Rotation: | CW-SE | Output Power: | 190W 1/4HP |
Motor Diameter: | 160mm | Frequency: | 50/60Hz |
Product Name: | Air Cooler Motor | ODM Solutions: | Customized AC And EC Motors |
ODM Solutions: | Customized AC And EC Motors | ODM Solutions: | ODM Solutions: Customized AC And EC Motors |
Highlight: | cooler fan motor,cooling fan motor |

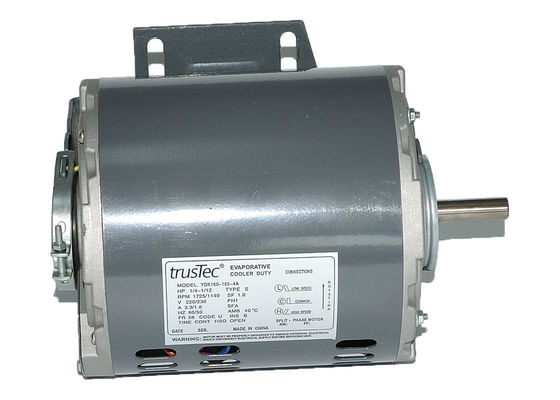

1/4HP 1725 RPM Air Cooler Motor Portable Evaporative For Household
Product specification:
Listed are representative motors, only for reference, dimensions and parameters can be customized according to customer requirements, OEM/ODM offered .
Model |
Power (HP) |
Voltage (V) |
Frequency (Hz) |
Speed |
Rotation | Insulation Class |
YDK140-150-6T5 | 1/5 | 220-240 | 50 | 850/3 SPD | CCW | B |
YDK160-185-4A | 1/4 | 115/127 | 50/60 | 1425/1725 | CW-SE | B |
YDK160-185-4A2 | 1/4 | 220/230 | 50/60 | 1425/1725 | CW-SE | B |
YDK160-245-4A | 1/3 | 115/127 | 50/60 | 1425/1725 | CW-SE | B |
YDK160-245-4A2 | 1/3 | 220/230 | 50/60 | 1425/1725 | CW-SE | B |
YDK160-375-4A | 1/2 | 115/127 | 50/60 | 1425/1725 | CW-SE | B |
YDK160-375-4A2 | 1/2 | 220/230 | 50/60 | 1425/1725 | CW-SE | B |
YDK160-550-4A | 3/4 | 115/127 | 50/60 | 1425/1725 | CW-SE | B |
YDK160-550-4A2 | 3/4 | 220/230 | 50/60 | 1425/1725 | CW-SE | B |
YDK160-735-4A | 1 | 115/127 | 50/60 | 1425/1725 | CW-SE | B |
YDK160-735-4A2 | 1 | 220/230 | 50/60 | 1425/1725 | CW-SE | B |
Product materials:
1. Use NSK low noise high quality rolling bearing.
2. Nickel plating for shaft, electrophoretic coating for enclosure.
3. Insulation class E/B/F, protection class IP20~IP54.
4. Reasonable structure, high efficiency, low temperature rise, low noise, small vibration.
5. 100% pure copper, aluminum motor can also be available if customer need large quantity.
Product use:
1. Various kinds of air coolers, commercial and residential.
2. Air conditioning system.
As a professional motor manufacturer, we are specialized in designing and producing all kinds of motors for room, commercial and central air conditioners.
Our main products are fan coil unit motors, motors for split, cabinet, window air-conditioner, high static pressure motors, ceiling air-conditioner motors, air cooling motors, single and three phase motors, kinds of pump motors, PG motor and DC brushless motors.
Our products have been approved by RoHS, CCC, CE and UL certificates, and the products have been being exported to the main market such as North America, Europe and Mid-east.
FAQ:
Q1- What is the warranty of the motors?
The warranty is 18 months on the production date, under the warranty we will afford the shipping cost to send the replacement.
Q2- Can you design the motor according to the different request?
Yes, we can offer the ODM.
Q3- Do you have distributors overseas?
Yes. We have distributors in USA, Holland, Spain, Turkey, Sudan, UAE, KSA...
Q4- How many motors is 1*20GP container or 1*40HQ container loading?
2000-2200pcs for 1*20GP
4300-4500pcs for 1*40HQ
We always make full use of the space to save for the customers.
Q5- How to get the accurate offer?
The precise price will be quoted after checking the specification and mounting dimension of the motor.
