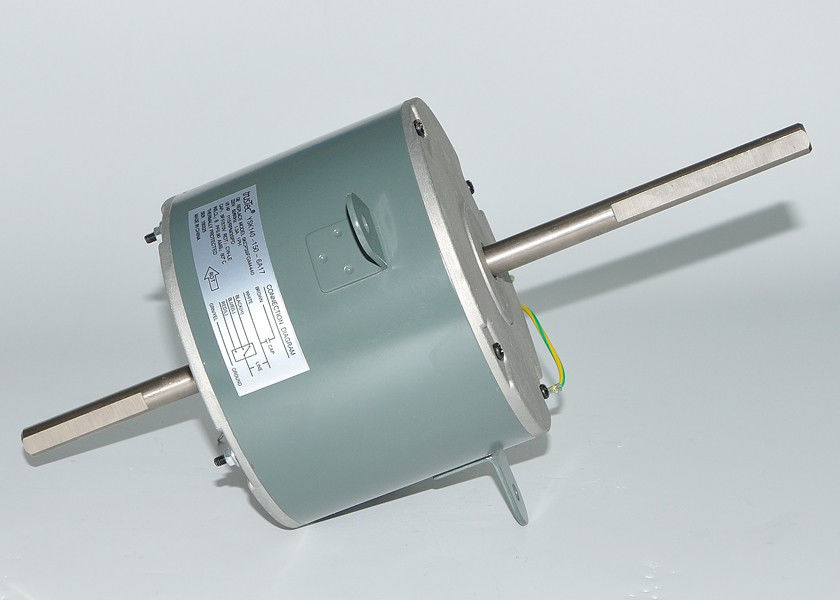

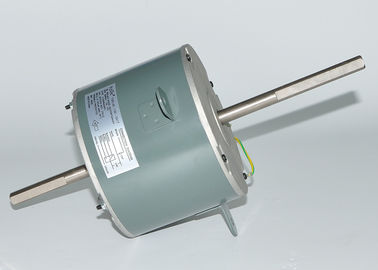

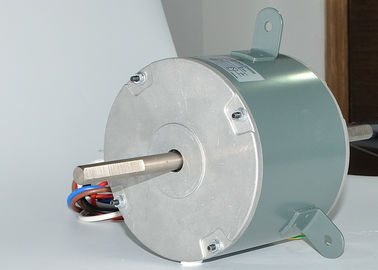

1/4HP Universal Fan Motor YSK140/35-4-185-1 - 185W RPM1300

Product Details:

Place of Origin:	China
Brand Name:	trusTec
Certification:	UL Approval E529388，CE approval
Model Number:	YSK140/35-4-185-1

Payment & Shipping Terms:

Minimum Order Quantity:	200pcs
Price:	Negotiable (FOB/CNF/CIF)
Packaging Details:	Standard carton packing, foam board inside for protection.
Delivery Time:	15/20 days fresh products after order confirmation.
Payment Terms:	T/T, L/C
Supply Ability:	100,000 pcs per month

Contact Now

Detailed Product Description

Outpower:	185W	Voltage/Phase:	220/1∮
Frequency:	50/60Hz	Pole:	4 Pole
Speed:	1300RPM	Product Name:	Universal Motor
ODM Solutions:	ODM Solutions: Customized AC And EC Motors
Highlight:	1300RPM Universal Fan Motor , 185W Universal Fan Motor , YSK140/35-4-185-1

1/4HP Universal Fan Motor YSK140/35-4-185-1- 185W RPM1300

Technical parameters of 1/4HP Universal Fan Motor:

Model series	YDK/YSK140
Voltage	110-120V / 220-240V 1PH
Frequency	50Hz / 60Hz / 50/60Hz
Power	1/8-1HP 100W-750W
Speed	600-1800RPM 4/6P
Speeds	single/multi speeds
Rotation	CW/CCW/Reversible
Insulation	B/F
Proof	IP20-IP54
Protection	thermally protected
Enclosure	totally enclosed/open ventilated

Model	Voltage	Frequency	Power	Power	Speed
YSK140/30-4-150-1	230V	50Hz	150W	1/5HP	1200RPM/3 SPD
YSK140/35-4-185-1	230V	50Hz	185W	1/4HP	1300RPM/3 SPD
YSK140-245-4	208-230V	60Hz	245W	1/3HP	1625RPM/3 SPD
YSK140-375-4	208-230V	60Hz	375W	1/2HP	1625RPM/3 SPD
YSK140-550-6	208-230V	60Hz	550W	3/4HP	1075RPM

Listed are representative motors, technical parameter and mounting dimension can be customized according to customer's requirement.

Product Features of 1/4HP Universal Fan Motor:

Use NSK low noise high quality ball bearing;
Nickel plating for shaft, electrophoretic coating for enclosure;
Reasonable structure, high efficiency, low temperature rise, low noise, small vibration.
