TRUSTEC MOTOR YOUR TRUSTED FACTORY
Sales & Support:

|
| Place of Origin: | Changzhou, China |
| Brand Name: | trusTec |
| Certification: | CE |
| Model Number: | YSK-120-4B-THP |
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Price: | Negotiable (FOB/CNF/CIF) |
| Packaging Details: | Standard carton packing, foam board inside for protection. |
| Delivery Time: | 15 days fresh products after order confirmation. |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 pcs per month |

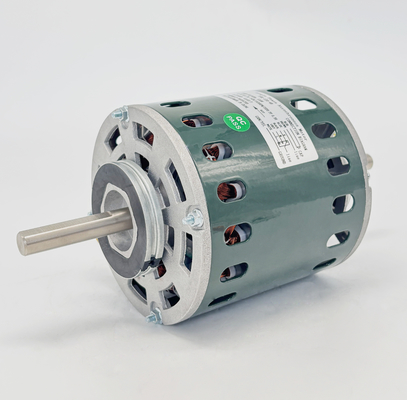

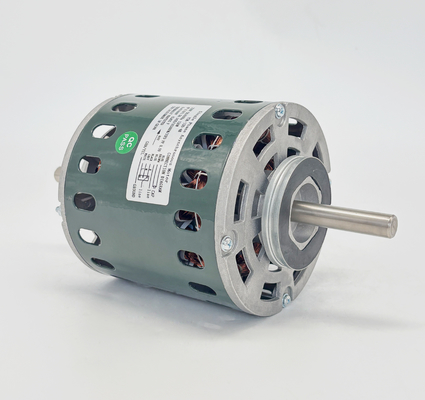

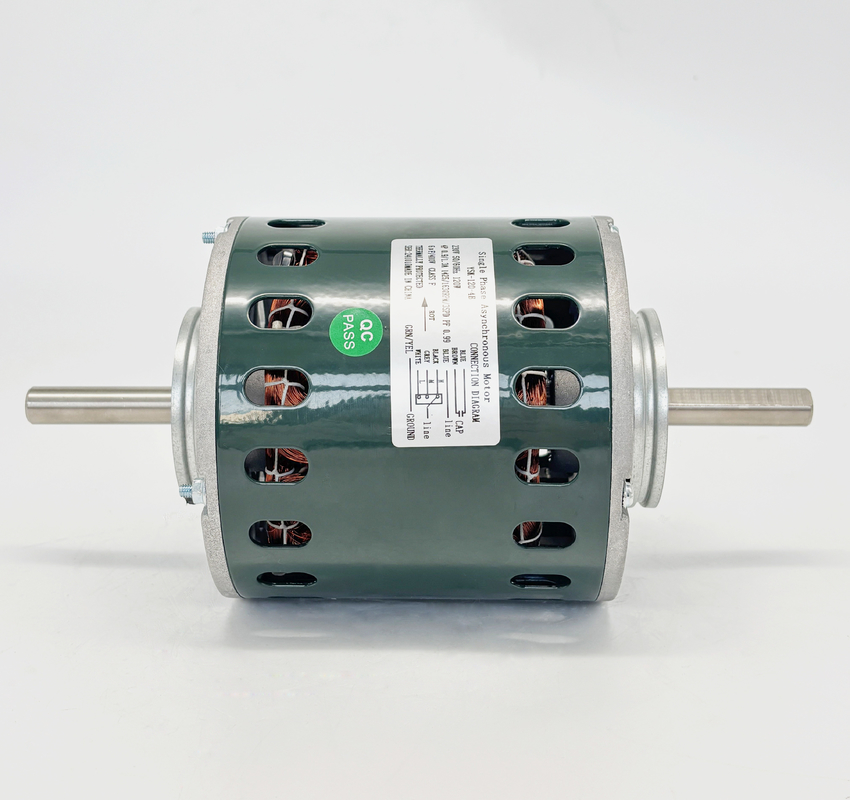

| Product: | Fan Coil Unit Motor | Frame Size: | 123mm |
|---|---|---|---|
| Motor Type: | Permanent Split Capacitor | Supply Voltage: | 230V |
| Enclosure Type: | OAO(Open Air Over) | Supply Frequency: | 50/60Hz |
| Thermal Overload: | Equipped With An Automatic Thermal Overload | Current: | 0.9/1.3A |
| Phase: | Single Phase | Output HP: | 120W |
| Shaft Flats: | One Flat | Rated Speed: | 1425/1630RPM/3SPD |
| Mounting: | Stud Mounting All Angel | Shaft Diameter: | 0.5"/12.7mm |
| Insulation Class: | Class F | Shaft Length: | 9.92"/252mm |
| Bearings: | Ball Bearing | Flat Length: | 1.91"/48.5mm |
| Max. Ambient Temperature: | 70℃/158℉ | Lead Length: | 15.75"/400mm |
| Rotation: | CCW | Motor Shell Length: | 5.47"/139mm |
| Capacitor: | 6uF/400V |
