| Place of Origin: | Changzhou, China |
| Brand Name: | trusTec |
| Certification: | CE、UL529388 |
| Model Number: | YDK-250-6A25-UNB |
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Price: | Negotiable (FOB/CNF/CIF) |
| Packaging Details: | Standard carton packing, foam board inside for protection. |
| Delivery Time: | 15 days fresh products after order confirmation. |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 pcs per month |

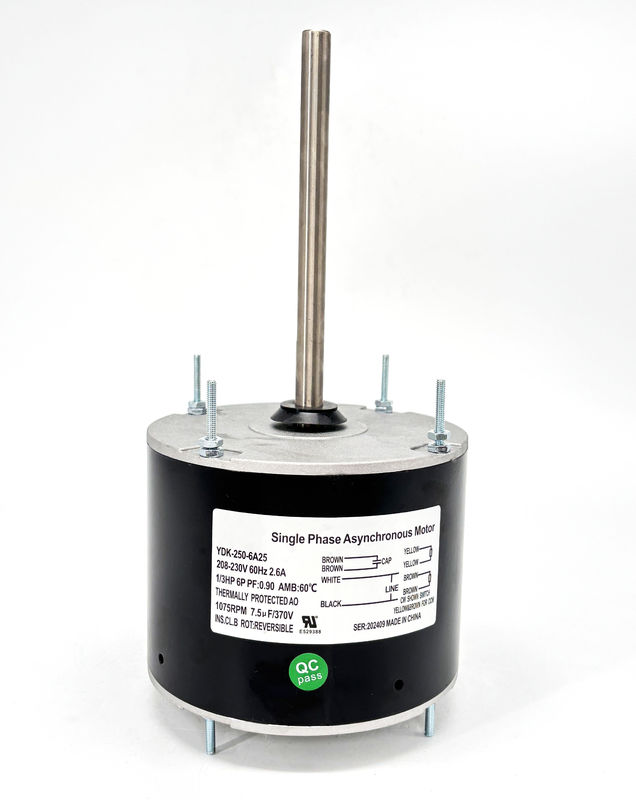

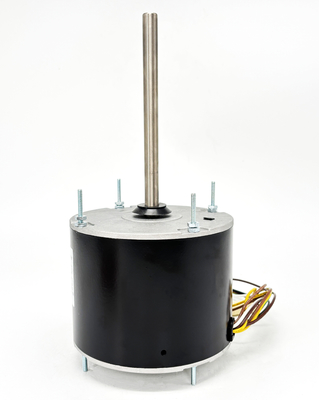

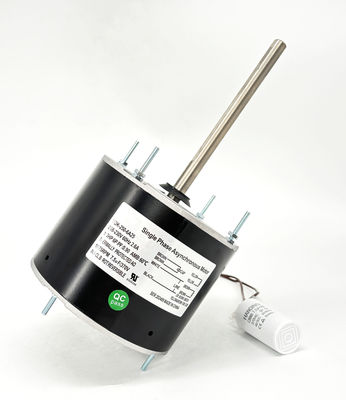

| Product: | Condenser Fan Motor | Frame: | Nema 48 |
|---|---|---|---|
| Motor Type: | Permanent Split Capacitor | Supply Voltage: | 208-230V |
| Enclosure Type: | TEAO(Totally Enclosed Air Over) | Supply Frequency: | 60Hz |
| Thermal Overload: | Equipped With An Automatic Thermal Overload | Current: | 2.6A |
| Phase: | Single Phase | Output HP: | 1/3HP |
| Shaft Flats: | Right Angle Flat | Rated Speed: | 1075RPM |
| Mounting Orientation: | All Angel | Shaft Length: | 6.5" / 165.1mm |
| Insulation Class: | Class B | Shaft Diameter: | 0.5" /12.7mm |
| Mounting: | Stud Mounting All Angel | Capacitor: | 7.5uF/370V |
| Bearings: | Ball Bearing | Flat Length: | 5.03" / 128mm |
| Rotation: | Reversible | Lead Length: | 27.5" / 700mm |
| Max. Ambient Temperature: | 60℃/140℉ | Screw Length: | 1" / 25.4mm 0.53" / 13.5mm |
| Highlight: | 48 Frame Condenser Fan Motor,1/3HP Condenser Fan Motor,208-230V Condenser Fan Motor |
||
