Place of Origin: | China |
Brand Name: | trusTec |
Certification: | CE |
Model Number: | YSK120-64-4A |
Minimum Order Quantity: | 200pcs |
---|---|
Price: | Negotiable (FOB/CNF/CIF/EXW) |
Packaging Details: | Standard carton packing, foam board inside for protection. |
Delivery Time: | 15 days fresh products after order confirmation. |
Payment Terms: | T/T, L/C |
Supply Ability: | 100,000 pcs per month |
Application: | Split Air Conditioner Indoor Unit | Insulation Class: | E/B/F |
---|---|---|---|
Protection Class: | IP20-IP54 | Power: | 64W |
Bearing: | Rolling Bearing | Material: | 100% Pure Copper |
Motor Diameter: | 120mm | Product Name: | Indoor Fan Motor |
ODM Solutions: | Customized AC And EC Motors | ODM Solutions: | Customized AC And EC Motors |
ODM Solutions: | ODM Solutions: Customized AC And EC Motors | ||
High Light: | replacement fan motor,air cond fan motor |

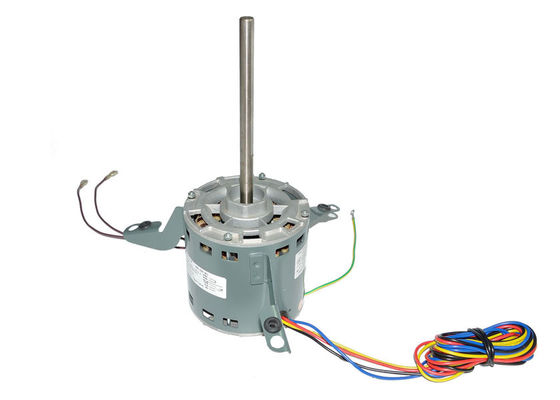

AC Indoor Fan Motor 64W , Single Phase Asynchronous Motor For Air Conditioner
Technical Parameters
Below are representative motors, only for reference, dimensions can be customized according to customer requirements, OEM/ODM service offered.
Model Number |
Voltage /V |
Frequency /Hz |
Output Power /W |
Rated Speed /RPM |
Capacitor /μF |
YSK120-37-4A | 220-240 | 50 | 37 | 1350/3 SPD | 3/370 |
YSK120-40-4A3 | 220-240 | 50 | 40 | 1100/3 SPD | 3/370 |
YSK120-50-4A2 | 220-240 | 50 | 50 | 1300/3 SPD | 3/400 |
YSK120-64-4A | 220-240 | 50 | 64 | 1320/3 SPD | 3/400 |
YSK120-90-4A | 220-240 | 60 | 90 | 1600/3 SPD | 4/370 |
YSK120-90-4A4 | 220-240 | 50 | 90 | 1300/3 SPD | 5/370 |
YSK120-90-4A5 | 220-240 | 50 | 90 | 1175/3 SPD | 4/370 |
YSK120-120-4A | 220-240 | 60 | 120 | 1300/4 SPD | 3/370 |
YSK120-185-4A | 220-240 | 60 | 185 | 1625/3 SPD | 7.5/370 |
YDK120-74-4A | 220-240 | 50 | 74 | 1390/3 SPD | 4/370 |
YDK120-75-6A | 220-240 | 50 | 75 | 850 | 4/370 |
YDK120-90-4A | 208-230 | 60 | 90 | 1550 | 4/370 |
YDK120-90-6 | 220 | 50 | 90 | 890/3 SPD | 5/370 |
YDK120-90-6A2 | 220-240 | 50 | 90 | 850 | 5/400 |
YDK120-110-6A2 | 220-240 | 50 | 110 | 900 | 5/370 |
YDK120-150-6A | 220-240 | 50 | 150 | 840/3 SPD | 6/370 |
YDK120-185-4A | 220-240 | 50 | 185 | 1250 | 5/440 |
YDK120-185-4A2 | 220-240 | 50 | 185 | 1050/3 SPD | 10/370 |
YDK120-185-6A | 220-240 | 60 | 185 | 950 | 5/400 |
YDK120-185-6A2 | 220-240 | 50 | 185 | 950 | 5/400 |
Product Features:
1. Safe and reliable, low noise, good starting, long life, etc.
2. All our products pass the CE/CCC/ISO9001.
3. This motor can be designed and produced according to customers' request.
4. We will send you some samples for your inspecting and reference.
5. Every motor is upon strict inspection.
6. Delivering goods on time.
Where to use:
1. Air refresher, indoor unit of air conditioner.
2. Dehumidify, Disinfector.
3. Air ventilation fan, air curtain.
Main advantages:
1. Our top management is born from motor technicians.
2. OEM and ODM offer.
3. UL, CCC, ROHS, CE certificate and strict quality control.
4. We have had more than 10 years export experience, especially to Mid-east and South America.
5. Own a competent and honest sales team, always efficient to all your requirements.
Description:
1. As a professional motor manufacturer in the motor production base of Changzhou, we are specialized in designing and producing all kinds of motors for room, commercial and central air conditioners.
2. Our motors have been approved by RoHS, CCC, CE and UL certificates, and the products have been exported to the main market as North America, Europe and Mid-east.
FAQ:
Q: What kind motors you can provide?
A: For now, our company provides motors include: fan coil unit motors, motors for split, cabinet, window air-conditioner, high static pressure motors, ceiling air-conditioner motors, air cooling motors, single and three phase motors, kinds of pump motors, PG motor and DC brushless motors. All of these motors are designed for home appliances.
Q: Is there a MOQ for your motors?
A: Yes. The MOQ is between 100-500pcs for different models after sample approval. And it's also okay for us to accept smaller lots for the initial order.
Q: Could you send me a price list?
A: Most of our motors are not standard products, they are customized based on different requirements like voltage, power and shaft etc. Thus, it's really difficult for us to provide a price list. If you could share your detailed requirements and annual quantity, we'll be sure to offer a very competitive price.
Q: What is the payment?
A: Payment method: TT/ West Union/ Papal/ L/C/ are all available.
Payment Way: generally, we accept 30% TT deposit and balance before delivery.
After building long and good relationship, better payment way will be provided.
Q: What is the lead time?
A: The delivery time is 15-30 days after order be confirmed.
But for the exact date, please check with our sales team.
Q: What is your company return policy?
A: Refund or exchange is promised for defects not damaged by users. You can take photos or video to us for approval first, and then give you a new one during next order.
