TRUSTEC MOTOR YOUR TRUSTED FACTORY
Sales & Support:
 |
| Place of Origin: | Changzhou, China |
| Brand Name: | trusTec |
| Certification: | CE |
| Model Number: | YDK-140-4A-SGR |
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Price: | Negotiable (FOB/CNF/CIF) |
| Packaging Details: | Standard carton packing, foam board inside for protection. |
| Delivery Time: | 15 days fresh products after order confirmation. |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 pcs per month |

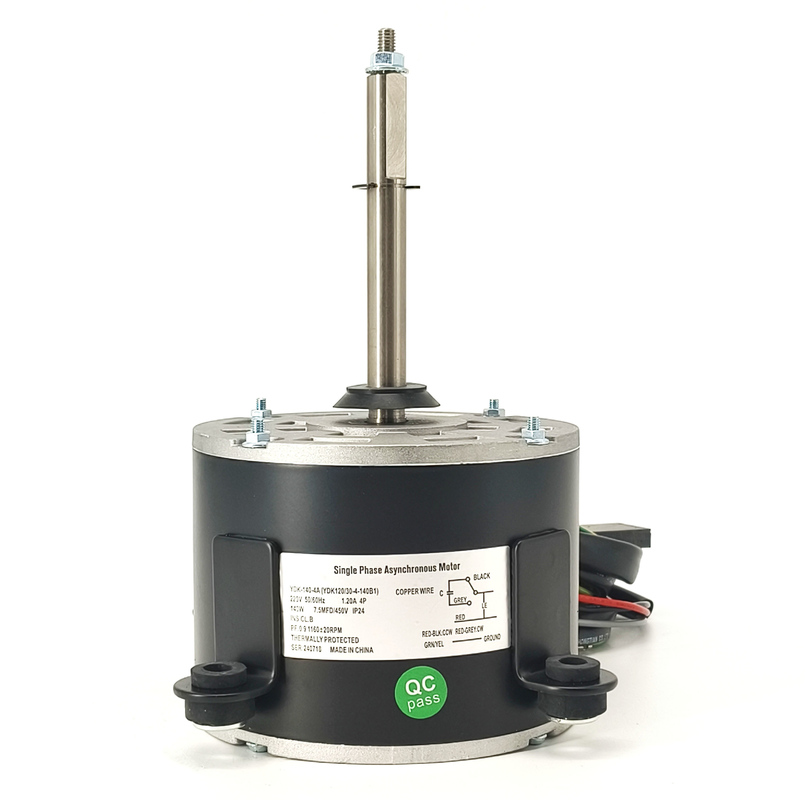

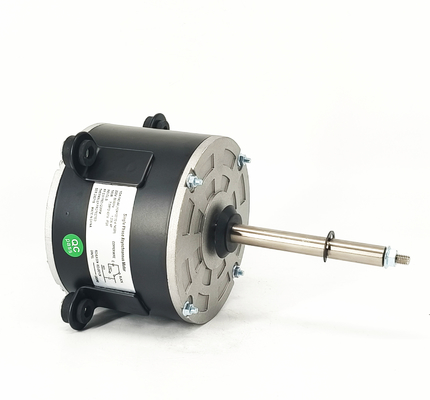

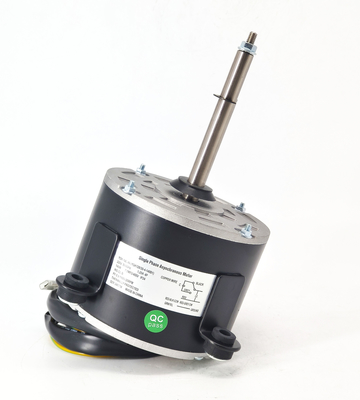

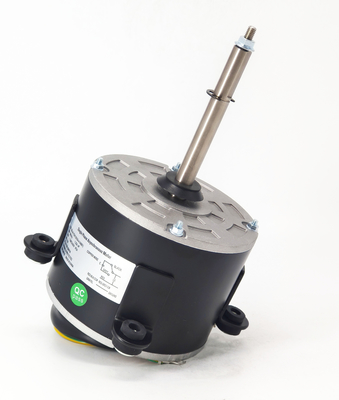

| Product: | Outdoor Fan Motor | Frame Size: | 120mm |
|---|---|---|---|
| Motor Type: | Permanent Split Capacitor | Supply Voltage: | 220V |
| Enclosure Type: | TEAO(Totally Enclosed Air Over) | Supply Frequency: | 50/60Hz |
| Thermal Overload: | Equipped With An Automatic Thermal Overload | Current: | 1.2A |
| Phase: | Single Phase | Output HP: | 140W |
| Shaft Flats: | One Flat | Rated Speed: | 1160±20RPM |
| Bearings: | Ball Bearing | Pole: | 4P |
| Mounting: | Stud Mounting All Angel | Capacitor: | 7.5MFD/450V |
| Insulation Class: | Class B | Shaft Diameter: | 0.5" /12.7mm |
| Rotation: | CW/CCW | Shaft Length: | 2.57" /65.5mm |
| Max. Ambient Temperature: | 40℃/104℉ | Flat Length: | 1.26" /34mm |
| PF: | 0.9 | Lead Length: | 55.1" /1400mm |
| Highlight: | Air Conditioner AC Outdoor Asynchronous Motor,140W AC Outdoor Asynchronous Motor,1160RPM AC Outdoor Asynchronous Motor |
||
