TRUSTEC MOTOR YOUR TRUSTED FACTORY
Sales & Support:

|
| Place of Origin: | Changzhou, China |
| Brand Name: | trusTec |
| Certification: | CE |
| Model Number: | YDK-87-6A-SGR |
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Price: | Negotiable (FOB/CNF/CIF) |
| Packaging Details: | Standard carton packing, foam board inside for protection. |
| Delivery Time: | 15 days fresh products after order confirmation. |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 pcs per month |

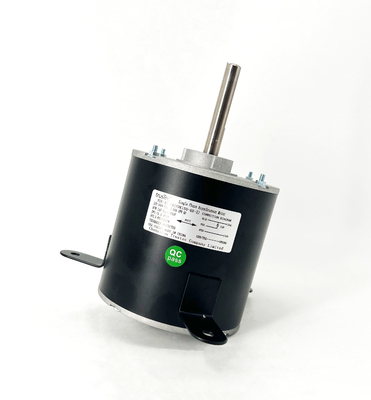

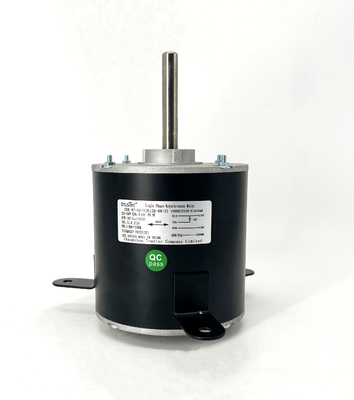

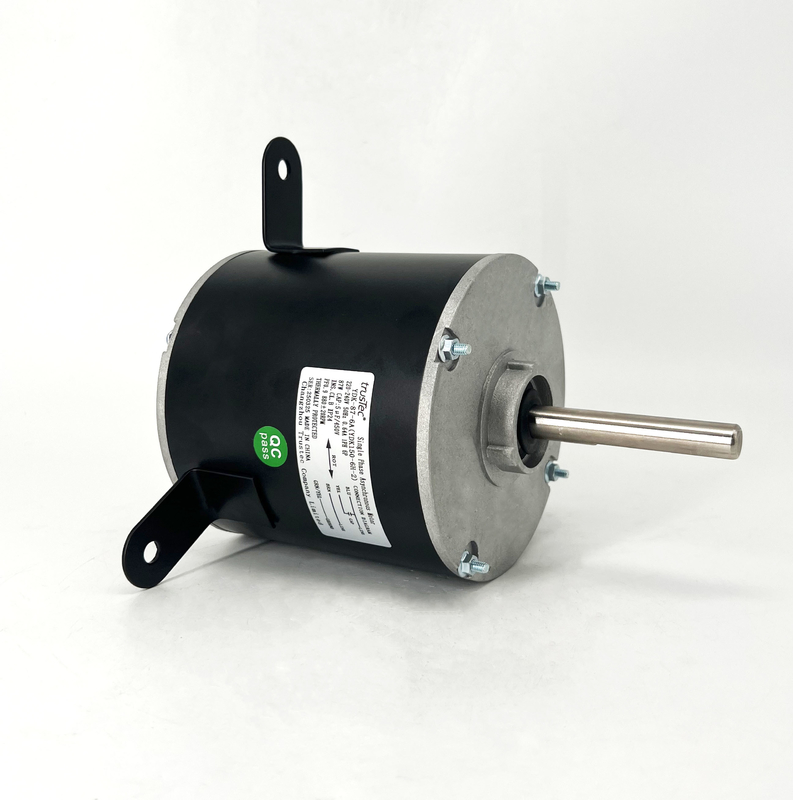

| Product: | Outdoor Fan Motor | Frame: | 4.72"120mm |
|---|---|---|---|
| Motor Type: | Permanent Split Capacitor | Supply Voltage: | 220-240V |
| Enclosure Type: | TEAO(Totally Enclosed Air Over) | Supply Frequency: | 50Hz |
| Thermal Overload: | Equipped With An Automatic Thermal Overload | Current: | 0.64A |
| Phase: | Single Phase | Output HP: | 1/8HP |
| Shaft Flat: | One Flat | Rated Speed: | 880±10RPM |
| Mounting Orientation: | All Angle | Capacitor: | 5uF/450V |
| Insulation Class: | Class B | Shaft Diameter: | 0.5" /12.7mm |
| Pole: | 6P | PF: | 0.9 |
| Bearings: | Ball Bearing | Flat Length: | 1.91±0.02" /48.5±0.5mm |
| Rotation: | Reversible | Lead Length: | 59.06±0.79" /1500±20mm |
| Max. Ambient Temperature: | 40℃/104℉ | ||
| Highlight: | 880RPM Outdoor Fan Motor,220-2340V Outdoor Fan Motor,120mm Frame Outdoor Fan Motor |
||
