TRUSTEC MOTOR YOUR TRUSTED FACTORY
Sales & Support:
 |
| Place of Origin: | Changzhou, China |
| Brand Name: | trusTec |
| Certification: | CE、UL529388 |
| Model Number: | YDK160-185-4A3-DNW |
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Price: | Negotiable (FOB/CNF/CIF) |
| Packaging Details: | Standard carton packing, foam board inside for protection. |
| Delivery Time: | 15 days fresh products after order confirmation. |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 pcs per month |

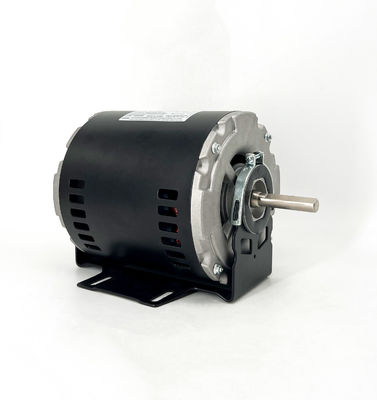

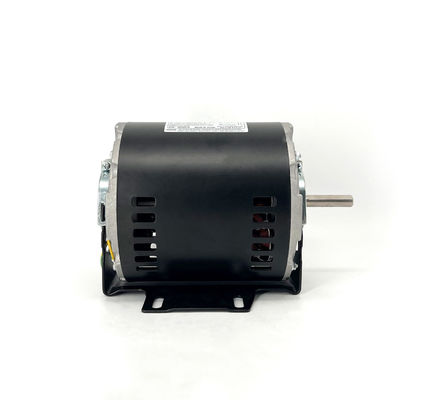

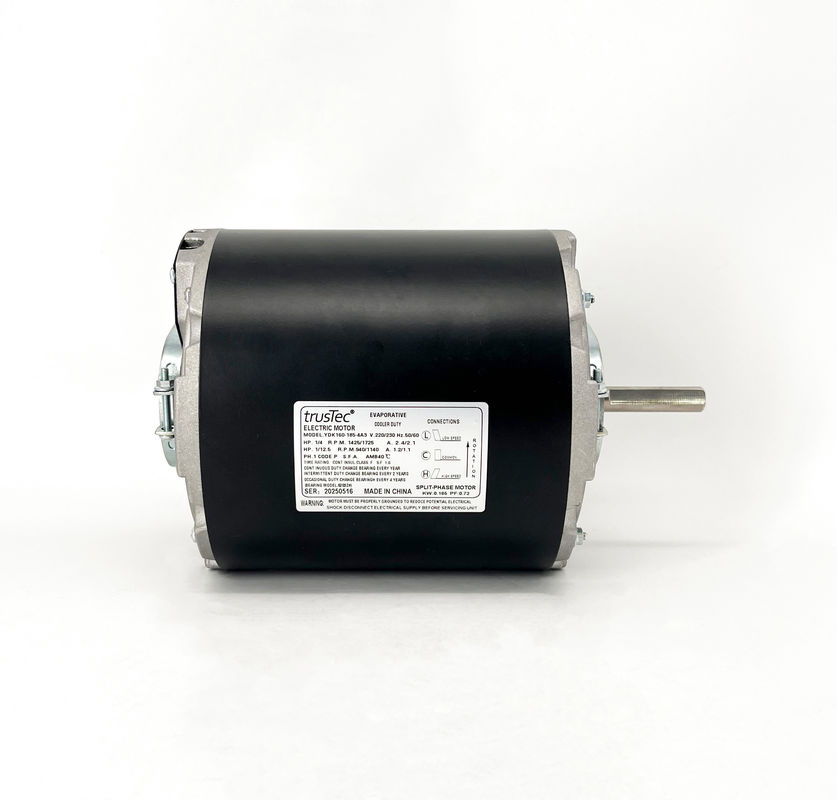

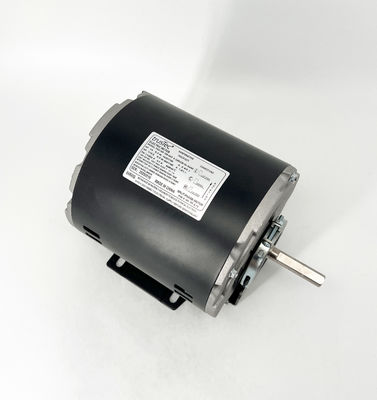

| Product: | Air Cooler Fan Motor | Frame: | 163mm |
|---|---|---|---|
| Motor Type: | Evaporative Air Cooler Motor | Supply Voltage: | 220V/230V |
| Enclosure Type: | OAO(Open Air Over) | Supply Frequency: | 50/60Hz |
| Thermal Overload: | Equipped With An Automatic Thermal Overload | Current: | 2.4A/2.1A/1.2A/1.1A |
| Phase: | Single Phase | Output HP: | 185W/60W |
| Shaft Flat: | One Flat | Speed: | 1425/1725/940/1140RPM |
| Mounting Orientation: | All Angle | Pole: | 4P |
| Insulation Class: | Class F | Shaft Diameter: | 17mm/0.67" |
| Bearings: | Ball Bearing | PF: | 0.72 |
| Shaft Length: | 55mm/2.17" | Rotation: | CW-SE |
| Flat Length: | 46mm/1.81" | Max. Ambient Temperature: | 40℃/104℉ |
| Motor Shell Length: | 174.5mm/6.87" | ||
| Highlight: | 1/4HP Evaporative Air Cooler Motor,220/230V Evaporative Air Cooler Motor,1/12.5HP Evaporative Air Cooler Motor |
||
Contact Person: Selena Chai
Tel: +86-13961191626
Fax: 86-519-85109398
