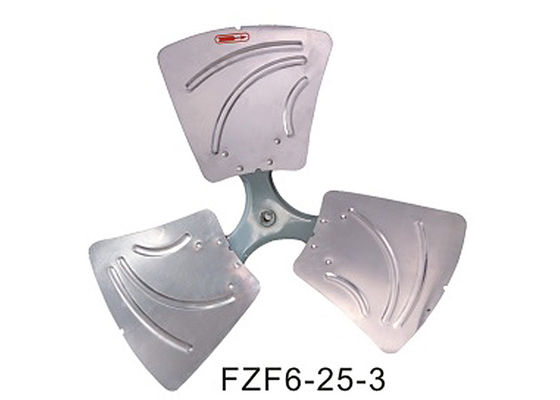

Workshop Ventilation Metal Axial Blade FZF Series 2/3/4/5/6 Blade

Workshop Ventilation Metal Axial Blade FZF Series 2/3/4/5/6 Blade

  • Workshop Ventilation Metal Axial Blade FZF Series 2/3/4/5/6 Blade
  • Workshop Ventilation Metal Axial Blade FZF Series 2/3/4/5/6 Blade
  • Workshop Ventilation Metal Axial Blade FZF Series 2/3/4/5/6 Blade
  • Workshop Ventilation Metal Axial Blade FZF Series 2/3/4/5/6 Blade
  • Workshop Ventilation Metal Axial Blade FZF Series 2/3/4/5/6 Blade
  • Workshop Ventilation Metal Axial Blade FZF Series 2/3/4/5/6 Blade
  • Workshop Ventilation Metal Axial Blade FZF Series 2/3/4/5/6 Blade
  • Workshop Ventilation Metal Axial Blade FZF Series 2/3/4/5/6 Blade
Workshop Ventilation Metal Axial Blade FZF Series 2/3/4/5/6 Blade
Product Details:
Place of Origin: China
Brand Name: trusTec
Certification: CE
Model Number: FZF/FZF-II
Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs
Price: Negotiable (FOB/CNF/CIF)
Packaging Details: Standard carton packing, foam board inside for protection.
Delivery Time: 15 days fresh products after order confirmation.
Payment Terms: T/T, L/C
Supply Ability: 100,000 pcs per month
Contact Now
Detailed Product Description
Product Name: Axila Flow Fan Blade Application: Air Conditioning And Ventilation Fan
Voltage: 380V Input Power: 0.08 - 0.550KW
Speed: 730 - 960RPM Air Volume: 3900 - 12200m³/h
Current: 0.7 - 1.9A
High Light:

axial flow exhaust fan

,

ac axial fan



workshop industrial ventilation axial fan blade FZF series, 2/3/4/5/6 blade



Application: used in low airflow intake resistance occasions, such as air conditioning, heat pump, general ventilation, heat radiation...

Impeller Diameter: 230~760mm

Air Volume: 500~16000m³/h

Operating Temperature: -20℃~80℃

Driving Mode: inner rotor motor



Technical Parameters

Model

Air Volume

/m³/h

Voltage

/V

Power

/KW

Speed

/RPM

Current

/A

FZF4.6-II-3 3900 380 0.08 960 0.7
FZF6.6-II-4 12200 380 0.55 940 1.9
FZF6.6-II-4 9700 380 0.3 730 0.9



Workshop Ventilation Metal Axial Blade FZF Series 2/3/4/5/6 BladeWorkshop Ventilation Metal Axial Blade FZF Series 2/3/4/5/6 Blade
