Trustec ECM Motor - exploded picture show

Other Videos
January 30, 2026
Category Connection: ECM Condenser Fan Motor
Contact Us
Tags:
#ec dc motor #ec brushless motor #ec motor
Brief: Get an inside view of features that deliver consistent results in daily use. This video provides a detailed exploded view of the Trustec ECM Motor, showcasing its high-efficiency design for HVAC systems. You'll see how its integrated controller and permanent magnet technology ensure stable airflow, quiet operation, and easy installation in furnaces and air handlers.
Related Product Features:
  • High-efficiency ECM motor with over 85% efficiency for reduced energy consumption in HVAC systems.
  • Permanent magnet synchronous motor (PMSM) with sensorless vector control for smooth, reliable operation.
  • Integrated intelligent controller enables precise motor control and easy system integration.
  • Automatic rotation direction identification prevents installation errors and ensures correct airflow.
  • Supports multiple control methods including AC, DC, and PWM signals for flexible speed adjustment.
  • Comprehensive protection system includes locked-rotor, overcurrent, and thermal protection features.
  • Designed as a direct replacement for traditional PSC and X13 ECM motors in indoor HVAC applications.
  • Dual-voltage platform (115-120V/220-230V) simplifies installation and replacement procedures.
FAQs:
  • What types of HVAC systems is this ECM blower motor compatible with?
    This ECM blower motor is designed for indoor HVAC applications including furnaces, air handlers, and residential or light commercial systems. It serves as a direct replacement for traditional PSC motors and X13/constant-torque ECM motors, following the same control wiring concept for easy integration.
  • How does the automatic rotation direction identification feature work?
    After initial AC power-up, the motor automatically performs short bidirectional detection cycles to identify the correct airflow direction. This prevents installation errors that could cause performance issues. It's important not to power off the motor during this automatic detection process.
  • What control methods are supported for speed adjustment?
    The motor supports three control methods: AC control (10-30 VAC), DC control (8-27 VDC), and PWM control (50-200 Hz with 10-90% duty cycle). The signal priority logic follows SP5 > SP4 > SP3 > SP2 > SP1, and the motor remains off when no control signal is present.
  • What protection features are integrated into this ECM motor?
    The motor includes comprehensive protection including locked-rotor protection, overcurrent protection, over-voltage and under-voltage protection, over-temperature protection, overload protection, short-circuit protection, and automatic fault recovery to ensure long-term reliability.
Related Videos

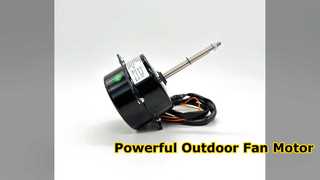

TrusTec Outdoor Fan Motor 78W 830RPM YDK78-6A 00:09
