TRUSTEC MOTOR YOUR TRUSTED FACTORY
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | trusTec |
| Certification: | UL Approval E529388，CE approval |
| Model Number: | CTM5-464 |
| Minimum Order Quantity: | 200pcs |
|---|---|
| Price: | Negotiable (FOB/CNF/CIF) |
| Packaging Details: | Standard carton packing, foam board inside for protection. |
| Delivery Time: | 15 days fresh products after order confirmation. |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 pcs per month |
| Voltage: | 208-230V | Frequency: | 60Hz |
|---|---|---|---|
| Power: | 1/2 1/3 1/4 1/6HP Multi HP | Speed: | 1075RPM/4SPEED |
| Bearing: | Ball Bearing | Insulation Class: | B |
| Product Name: | Multi HP Condenser Fan Motor | ODM Solutions: | Customized AC And EC Motors |
| ODM Solutions: | Customized AC And EC Motors | ODM Solutions: | ODM Solutions: Customized AC And EC Motors |
| High Light: | Multi HP Condenser Fan Motor,1/6HP Condenser Fan Motor,1075RPM Condenser Motor |
||

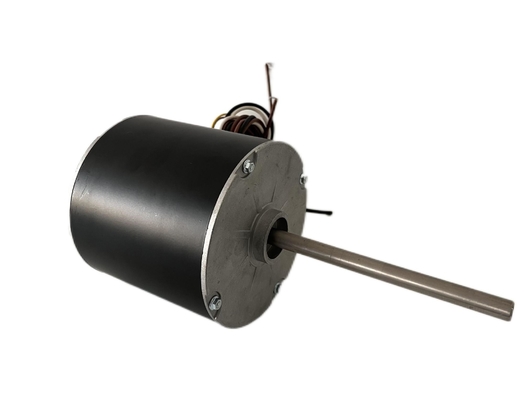

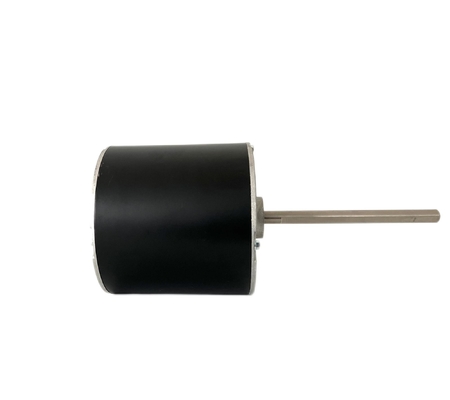

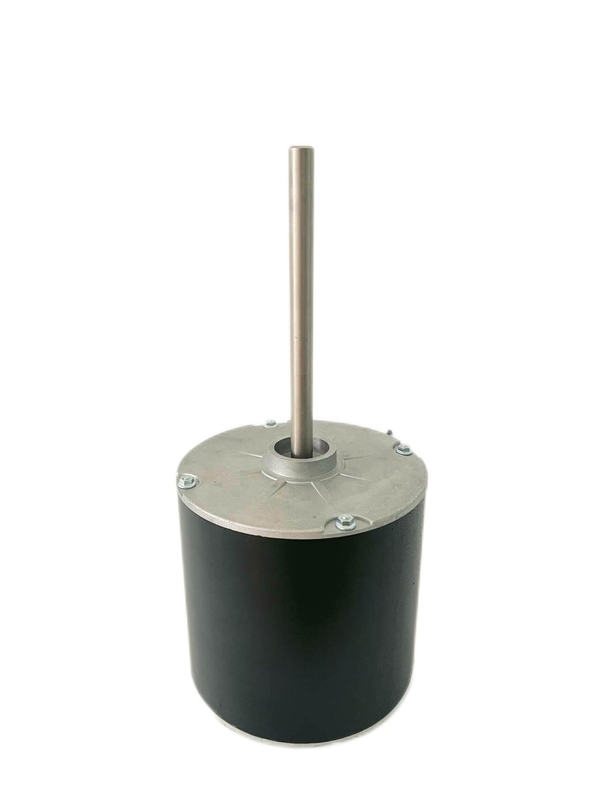

Key Features of Condenser Fan Motors - 1075RPM Frame 48 (5-5/8")
Condenser Fan motor
PCS Pernanent Split Capacitor Motor Type
1/6,1/5,1/4,1/3,1/2,or 3/4 Rated Horsepower
Supply Voltage 115 or 208/230 VAC
Supply Frequency 60 hertz
Insulation Class B
825 or 1075rpm Rated Speed
Run Capacitor 370 VAC -5 to 20 μF
Temperature Rating 60℃ / 140℉
Equipped with an automatic thermal overload
Current 1.2 to 8.1amps at rated speed and horsepower
Totally Enclosed Air Over
Frame 48 (5-5/8")
Ball Bearing
Shaft Diameter 1/2"
Shaft Length 5.5''
One Shaft Flat
Rotation CW/CCW(electrically reversible)
Lead Wire Length 26''
Lead Wire Gauge #18 AWG
Extended Clamp bolts or belly band Mounting
UL Approval E529388
Cross Reference
| TRUSTEC | DESCRIPTION |
CENTURY/ AO SMITH |
FASCO | GE/ GENTEQ | US MOTORS/ EMERSON | WAGNER | YORK SOURCE 1 | MARATHON | MARS | NORDYNE/ PARTNERS CHOICE | PACKARD |
RHEEM/RUUD PROTECH |
| CONDENSER FAN MOTORS | ||||||||||||
| CTM5-727 | 1/6HP 208-230V 1075/1 RPM | FSE1016S | D917 | 3727 | 1859 | WG840727 | S1-FHM3727 | X411 | 10727 | 01-0160 | 43727 | W51-16CJA1-01 |
| CTM5-728 | 1/4HP 208-230V 1075/1 RPM | FSE1026S | D909 | 3728 | 1860 | WG840728 | S1-FHM3728 | X213 | 10728 | 01-0161 | 43728 | W51-14CJA1-01 |
| CTM5-729 | 1/3HP 208-230V 1075/1 RPM | FSE1036S | D908 | 3729 | 1861 | WG840729 | S1-FHM3729 | X214 | 10729 | 01-0162 | 43729 | W51-13CJA1-01 |
| CTM5-730 | 1/2HP 208-230V 1075/1 RPM | FSE1056S | D907 | 3730 | 1862 | WG840730 | S1-FHM3730 | X221 | 10730 | 01-0163 | 43730 | W51-12CJA1-01 |
| CTM5-731 | 3/4HP 208-230V 1075/1 RPM | FSE1076S | D933 | 3731 | 1868 | WG840731 | S1-FHM3731 | 10731 | 01-0164 | 43731 | 51-42534-19 | |
| CTM5-403 | 1/6HP 208-230V 825/1 RPM | FSE1018SF | D798 | 3403 | 1873 | X465 | 10403 | 0165 | 60825 | |||
| CTM5-404 | 1/4HP 208-230V 825/1 RPM | FSE1028SF | D934 | 3404 | 1874 | WG840204 | 10404 | 0166 | 40825 | |||
| CTM5-405 | 1/3HP 208-230V 825/1 RPM | FSE1038SF | D796 | 3405 | 1875 | WG840205 | S1-FHM3205 | X451 | 10405 | 0167 | 30825 | |
| CTM5-746 | 1/2HP 208-230V 825/1 RPM | FSE1058SF | D713 | 3746 | 1870 | X452 | 10746 | 0168 | ||||
| CTM5-204HS | High Temp 70°C 1/4HP 208-230V 825/1 RPM | FE1028SF | 3204HS | 1874H | WG840404HT | S1-FHM3204HT | 20404 | |||||
| CTM5-205HS | High Temp 70°C 1/3HP 208-230V 825/1 RPM | FE1038SF | 3205HS | 1875H | WG840405HT | S1-FHM3205HT | 20405 | |||||
| CTM5-726HS | High Temp 70°C 1/6HP 208-230V 1075/1 RPM | FE1016SF | 3726HS | 1859H | WG840727HT | 20727 | ||||||
| CTM5-732HS | High Temp 70°C 1/4HP 208-230V 1075/1 RPM | FE1026SF | 3732HS | 1860H | WG840728HT | S1-FHM3728HT | 20728 | |||||
| CTM5-733HS | High Temp 70°C 1/3HP 208-230V 1075/1 RPM | FE1036SF | 3733HS | 1861H | WG840729HT | S1-FHM3729HT | 20729 | |||||
| CTM5-734HS | High Temp 70°C 1/2HP 208-230V 1075/1 RPM | FE1056SF | 3734HS | 1862H | WG840730HT | S1-FHM3730HT | 20730 | |||||
| CTM5-735HS | High Temp 70°C 3/4HP 208-230V 1075/1 RPM | FE1076SF | 3735HS | 1868H | WG840731HT | 20731 | ||||||
| CTM5-736HS | High Temp 70°C 1/4HP 460V 1075/1 RPM | FEH1026SF | D980 | 3736 | 3936H | WG840736HT | S1-FHM3736HT | 20836 | 51-19704-01 | |||
| CTM5-737HS | High Temp 70°C 1/3HP 460V 1075/1 RPM | FEH1036SF | D982 | 3737 | 3737H | WG840737HT | S1-23063-11 | 20837 | 51-FHM3737HT | |||
| CTM5-738HS | High Temp 70°C 1/2HP 460V 1075/1 RPM | FEH1056SF | 3738 | 3738H | WG840738HT | S1-FHM3738HT | 20838 | 51-20929-01 | ||||
| CTM5-739HS | High Temp 70°C 3/4HP 460V 1075/1 RPM | FEH1076SF | 3739 | 3742H | WG840739HT | 20842 | ||||||
| MULTI HP CONDENSER FAN MOTORS | ||||||||||||
| CTM5-465 | 1/3 1/4 1/5 1/6 HP 208-230V 1075/2 RPM | FE6000 | D2827 | 3465 | 5462 | WG840465 | S1-FHM3465 | 10465 | 01-0695 | 51-23053-21 | ||
| CTM5-468 | 1/2 1/3 1/4 1/5 HP 208-230V 1075/2 RPM | FE6002 | 3468 | 5465 | WG840468 | S1-FHM3468 | 10468 | 01-0697 | ||||
| CTM5-469 | 1/3 1/4 1/5 1/6 HP 208-230V 825/2 RPM | FE6001 | D2826 | 3469 | 5464 | WG840469 | S1-FHM3469 | 10469 | 01-0696 | 51-20760-11 | ||
| CTM5-458HS | High Temp 70°C MH 1/6-1/3 208-230V 1075/1 RPM | ORM5458BF | 3458HS | 3323H | 20458 | |||||||
| CTM5-459HS | High Temp 70°C MH 1/8-1/3 208-230V 825/1 RPM | ORM5488BF | 3459HS | 1874H | 20459 | |||||||
| DIRECT DRIVE BLOWER | ||||||||||||
| CTM5-583 | 1/4HP 115V 1075/3 RPM | FDL1026 | D721 | 3583 | 1863 | WG840583 | S1-FHM3583 | 10583 | 01-0169 | 43583 | W51-14BAA3-01 | |
| CTM5-585 | 1/3HP 115V 1075/3 RPM | FDL1036 | D701 | 3585 | 1864 | WG840585 | S1-FHM3585 | X002 | 10585 | 01-0170 | 43585 | W51-13BAA3-01 |
| CTM5-587 | 1/2HP 115V 1075/3 RPM | FDL1056 | D701 | 3587 | 1865 | WG840587 | S1-FHM3587 | X004 | 10587 | 01-0171 | 43587 | W51-12BAA3-01 |
| CTM5-589 | 3/4HP 115V 1075/3 RPM | DL1076 | D278 | 3589 | 8904 | WG840589 | S1-FHM3589 | X009 | 10589 | 01-0172 | 43589 | W51-34BAA3-01 |
| CTM5-584 | 1/4HP 208-230V 1075/3 RPM | D1026 | D727 | 3584 | 1971 | WG840584 | S1-FHM3584 | X001 | 10584 | 01-0173 | 43584 | W51-14BJA3-01 |
| CTM5-586 | 1/3HP 208-230V 1075/3 RPM | FD1036 | D923 | 3586 | 1972 | WG840586 | S1-FHM3586 | X003 | 10586 | 01-0174 | 43586 | W51-13BJA3-01 |
| CTM5-588 | 1/2HP 208-230V 1075/3 RPM | FD1056 | D703 | 3588 | 1973 | WG840588 | S1-FHM3588 | X005 | 10588 | 01-0175 | 43588 | W51-12BJA3-01 |
| CTM5-590 | 3/4HP 208-230V 1075/3 RPM | D1076 | D729 | 3590 | 8905 | WG840590 | S1-FHM3590 | X010 | 10590 | 01-0176 | 43590 | W51-34BJA3-01 |
| MULTI HP DIRECT DRIVE BLOWER MOTORS | ||||||||||||
| CTM5-463 | 1/2 1/3 1/4 1/5 1/6 HP 115V 1075/4 RPM | FDL6001 | D2835 | 3463 | 5460 | WG840463 | S1-FHM3463 | 10463 | 01-0698 | 51-23012-41 | ||
| CTM5-466 | 1/2 1/3 1/4 1/5 3/4 HP 115V 1075/4 RPM | FDL6002 | D2832 | 3466 | 5470 | WG840466 | S1-FHM3466 | 10466 | 01-0702 | |||
| CTM5-464 | 1/2 1/3 1/4 1/5 1/6 HP 208-230V 1075/4 RPM | FDL6000 | D833 | 3464 | 5461 | WG840464 | S1-FHM3464 | 10464 | 01-0699 | 51-23022-41 | ||
| CTM5-467 | 1/2 1/3 1/4 1/5 3/4 HP 208-230V 1075/4 RPM | FD6001 | D2833 | 3467 | 5471 | WG840467 | S1-FHM3467 | 10467 | 01-0701 |
Our services
1. In reply to your inquiry within 12 hours, because we are valuing every customer.
2. We cooperate with customer to design and develop new product. Provide OEM.
3. We provide quality after-sales service.
4. 15-30 days leading time.
5. We are willing to help you arrange delivery, testing or other requests.
Our company
1. As a professional motor manufacturer, we are specialized in designing and producing all kinds of motors for room, commercial and central air conditioners.
2. Our main products are fan coil unit motors, motors for split, cabinet, window air-conditioner, high static pressure motors, ceiling air-conditioner motors, air cooling motors, single and three phase motors, kinds of pump motors, PG motor and DC brushless motors.
3. Our products have been approved by RoHS, CCC, CE and UL certificates, and the products have been being exported to the main market such as North America, Europe and Mid-east.
FAQ
Q1- What is the warranty of the motors?
The warranty is 18 months on the production date, under the warranty we will afford the shipping cost to send the replacement.
Q2- Can you design the motor according to the different request?
Yes, we can offer the ODM.
Q3- Do you have distributors overseas?
Yes. We have distributors in USA, Holland, Spain, Turkey, Sudan, UAE, KSA...
Q4- How to get the accurate offer?
The precise price will be quoted after checking the specification and mounting dimension of the motor.
