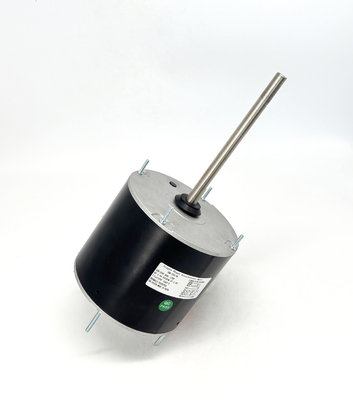

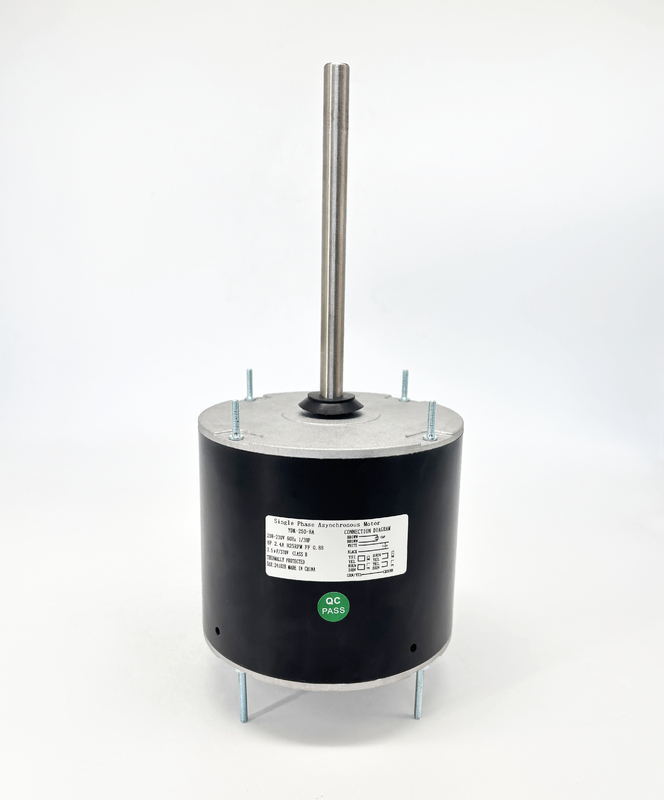

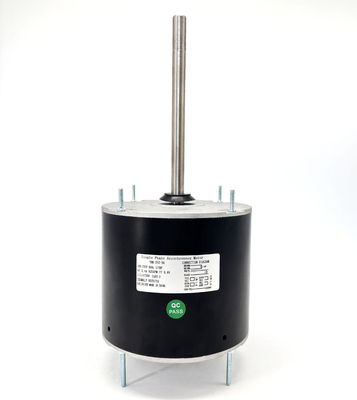

Name: Condenser Fan Motor YDK-250-8A - 1/3HP 825RPM 208-230V 60HZ
Brand: Changzhou Trustec Company Limited
SKU: YDK-250-8A-CDJ
Price: 125.00 USD
Availability: InStock

Home Products Condenser Fan Motor

Condenser Fan Motor YDK-250-8A - 1/3HP 825RPM 208-230V 60HZ

Product Details:

Place of Origin:	Changzhou, China
Brand Name:	trusTec
Certification:	CE、UL529388
Model Number:	YDK-250-8A-CDJ

Payment & Shipping Terms:

Minimum Order Quantity:	200 pcs
Price:	Negotiable (FOB/CNF/CIF)
Packaging Details:	Standard carton packing, foam board inside for protection.
Delivery Time:	15 days fresh products after order confirmation.
Payment Terms:	T/T, L/C
Supply Ability:	100,000 pcs per month

Contact Now

Detailed Product Description

Product:	Condenser Fan Motor	Frame:	Nema 48
Motor Type:	Permanent Split Capacitor	Supply Voltage:	208-230V
Enclosure Type:	TEAO(Totally Enclosed Air Over)	Supply Frequency:	60Hz
Thermal Overload:	Equipped With An Automatic Thermal Overload	Current:	2.4A
Phase:	Single Phase	Output HP:	1/3HP
Shaft Flat:	One Flat	Speed:	825RPM
Mounting Orientation:	All Angle	Capacitor:	7.5uF/370V
Insulation Class:	Class F	Pole:	8P
Bearings:	Ball Bearing	Shaft Diameter:	1/2" / 12.7mm
PF:	0.88	Shaft Length:	6.69'"/169.9mm
Rotation:	Reversible	Flat Length:	5.5"139.7mm
Max. Ambient Temperature:	70℃/158℉	Lead Length:	48"/1219.2mm
Screw Length:	1.11"/28.2mm,0.88"/22.3mm	Motor Shell Length:	4.94"/125.5mm
Highlight:	50W Fan Coil Unit Motor , 115V Fan Coil Unit Motor , 5μF Fan Coil Motor
