Place of Origin: | Changzhou, China |
Brand Name: | trusTec |
Certification: | CE |
Model Number: | YDK-25-6B-TGG |
Minimum Order Quantity: | 200 pcs |
---|---|
Price: | Negotiable (FOB/CNF/CIF) |
Packaging Details: | Standard carton packing, foam board inside for protection. |
Delivery Time: | 15 days fresh products after order confirmation. |
Payment Terms: | T/T, L/C |
Supply Ability: | 100,000 pcs per month |

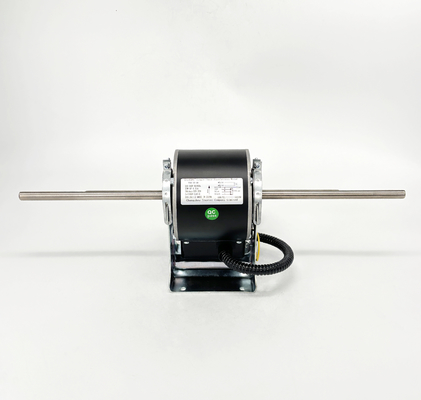

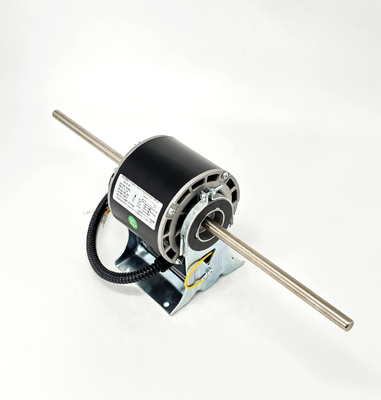

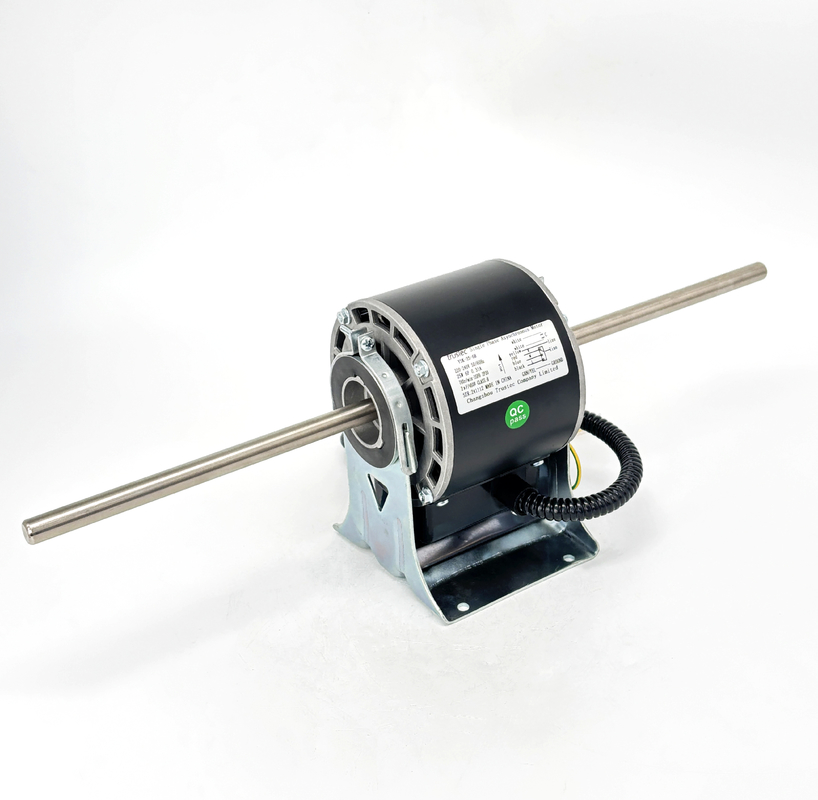

Product: | Fan Coil Unit Motor | Frame Size: | 110mm |
---|---|---|---|
Motor Type: | Permanent Split Capacitor | Supply Voltage: | 220-240V |
Enclosure Type: | QAO(Open Air Over) | Supply Frequency: | 50/60Hz |
Thermal Overload: | Equipped With An Automatic Thermal Overload | Current: | 0.31A |
Phase: | Singlr Phase | Output HP: | 1/30HP |
Shaft Flats: | One Flat | Rated Speed: | 780RPM/3SPD |
Mounting: | Stud Mounting All Angel | Shaft Diameter: | 0.5" /12.7mm |
Insulation Class: | Class B | Lead Length: | 27.5" / 700mm |
Bearings: | Ball Bearing | Max. Ambient Temperature: | 40℃/104℉ |
Rotation: | CCW-SE | ||
Highlight: | 25W Fan Coil Unit Motor,3SPD Fan Coil Unit Motor,780RPM Fan Coil Unit Motor |
