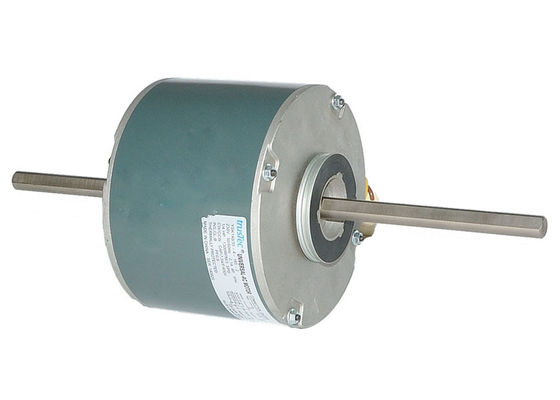

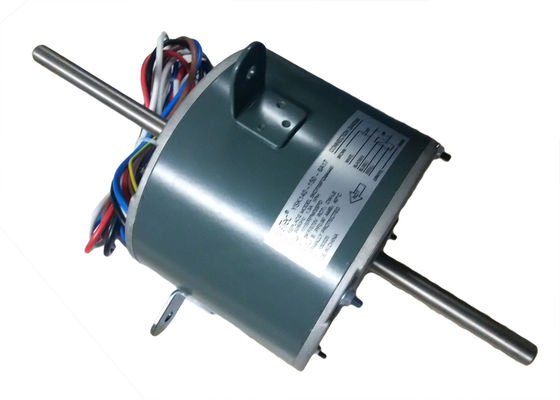

460V 1/2HP 375W Single Phase Asynchronous Fan Motor For Air Conditioner

460V 1/2HP 375W Single Phase Asynchronous Fan Motor For Air Conditioner

  • 460V 1/2HP 375W Single Phase Asynchronous Fan Motor For Air Conditioner
  • 460V 1/2HP 375W Single Phase Asynchronous Fan Motor For Air Conditioner
  • 460V 1/2HP 375W Single Phase Asynchronous Fan Motor For Air Conditioner
460V 1/2HP 375W Single Phase Asynchronous Fan Motor For Air Conditioner
Product Details:
Place of Origin: China
Brand Name: trusTec
Certification: CE
Model Number: YSK140-375-6A11
Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs
Price: Negotiable (FOB/CNF/CIF)
Packaging Details: Standard carton packing, foam board inside for protection.
Delivery Time: 15 days fresh products after order confirmation.
Payment Terms: T/T, L/C
Supply Ability: 100,000 pcs per month
Contact Now
Detailed Product Description
Application: Window Air Conditioner Power: 1/2HP 375W
Shaft: Double Shaft ROT: REVERSIBLE
Single Speed: 1075RPM Voltage: 460V
Product Name: Air Conditioner Fan Motor
High Light:

air condition fan motor

,

air condenser fan motor

,

375W Single Phase Asynchronous Fan Motor

460V 1/2HP Single Phase Asynchronous Fan Motor For Air Conditioner







Application:



1. Portable air conditioner, movable air conditioner, mobile air conditioner

2. Window air conditioner
3. Commercial air conditioner

4. Air curtain

5. Fresh air ventilation



Benefits:



1. Low noise

2. High efficiency

3. Reliable

4. Low vibration


Parameters:


Note: Listed are representative motors, only for reference, dimensions and parameters can be customized according to customer requirements, OEM/ODM offered.



Frame size Φ140

208-230VAC/115VAC/460VAC, 60Hz input

4, 6 pole

insulation class E, B, or F



Model Number

Voltage
/V

Frequency
/Hz

Power

Speed
/RPM

Rotation

Capacitor
/MDF/VAC

OEM Model
YSK140-375-6A 208-230 60 1/2HP 1075 REVERSIBLE 10/370 5KCP39MGK209T
YSK140-375-6A3 208-230 60 1/2HP 1075/3 SPD REVERSIBLE 7.5/370 FASCO D703
YSK140-375-6A7 208-230 60 1/2HP 1075 REVERSIBLE 10/370 5KCP39PGG404ET
YSK140-375-4A9 208-230 60 1/2HP 1625/3 SPD REVERSIBLE 5/370 PM3102186
YSK140-375-6A10 208-230 60 1/2HP 1075 REVERSIBLE 5/370 PM3102185
YSK140-375-6A11 460 60 1/2HP 1075 REVERSIBLE 5/370 PM3102184
YSK140-375-4A12 208-230 60 1/2HP 1625/3 SPD REVERSIBLE 7.5/370 FASCO D784
YSK140-375-4A13 208-230 60 1/2HP 1625 REVERSIBLE 7.5/370 FASCO D788
YSK140-375-4A14 115 60 1/2HP 1625/3 SPD REVERSIBLE 15/370 FASCO D777


Services:



We are capable to make the motor details as customer request.
We will provide the excellent motor solutions for our customers, and offer the suitable products according to their special requirements.
We also provide OEM service, design service.



Company information:



Changzhou Trustec Co.,Ltd is a motor manufacturing company of 20 years, located at the economically developed Yangzi River area with complete industry chain and convenient transportation. Trustec focus on the designing and producing all kinds of motors for room, commercial and central air conditioners, mainly includes fan coil unit motors, motors for split, cabinet, window air conditioner, high static pressure motors, ceiling air conditioner motors, air cooling motors, single and three phase motors, kinds of pump motors, PG motor and DC brushless motors.



FAQ:



Q: Why is your price better than others' ?

A: Regardless of each customer's order quantity, our material is not purchased according to this, we always keep plenty stock of various raw materials and make our motors have better competitiveness.



Q: How can you assure your quality?

A: Firstly our materials are all of high grade, pure copper winding, NSK shaft, silicon steel rotor and stator etc. Also we have strict quality control and product inspection standards, and our guarantee of the motors is 18 months.
