TRUSTEC MOTOR YOUR TRUSTED FACTORY
Sales & Support:
 |
| Place of Origin: | Changzhou, China |
| Brand Name: | trusTec |
| Certification: | CE、UL529388 |
| Model Number: | YDK-375-4A60/Y-7H45E370-01-KSD |
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Price: | Negotiable (FOB/CNF/CIF) |
| Packaging Details: | Standard carton packing, foam board inside for protection. |
| Delivery Time: | 15 days fresh products after order confirmation. |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 pcs per month |

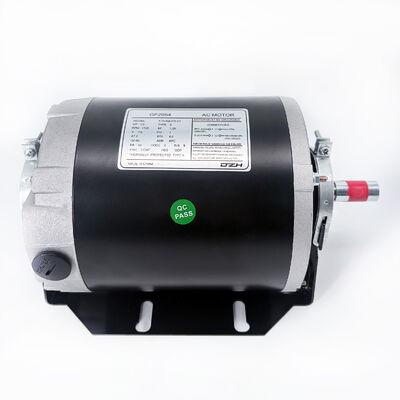

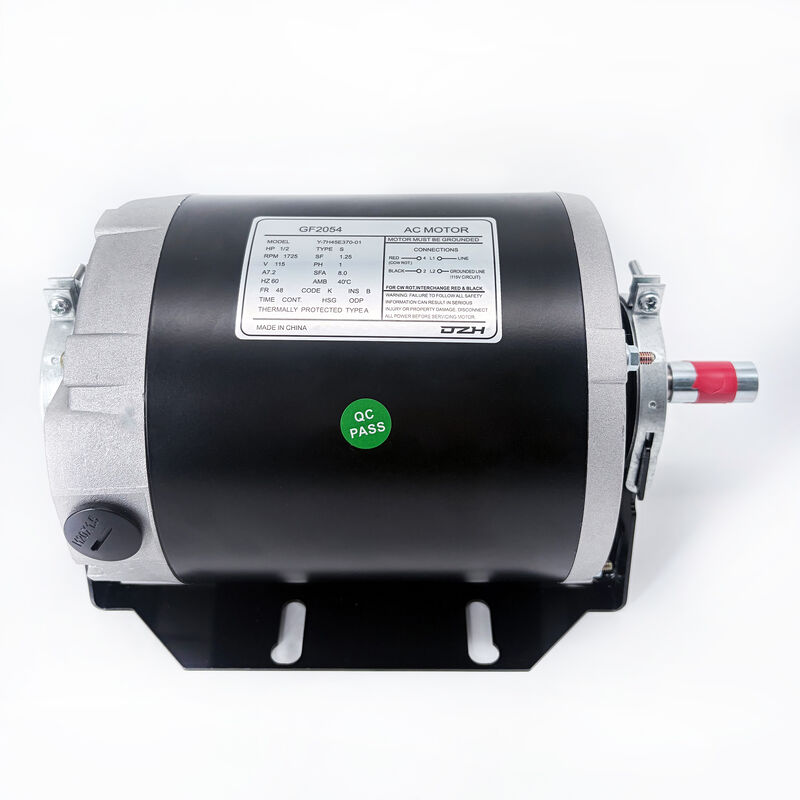

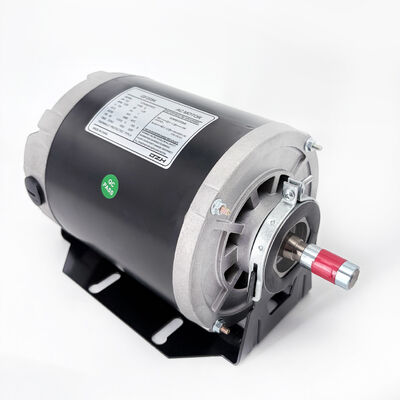

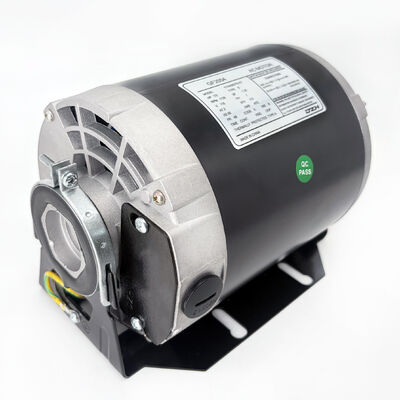

| Product: | HVAC Blower Motor | Frame: | 48 Frame |
|---|---|---|---|
| Replacement Motor: | GF2054 | Supply Voltage: | 115V |
| Motor Type: | Permanent Split Capacitor | Supply Frequency: | 6Hz |
| Enclosure Type: | TEAO(Totally Enclosed Air Over) | Current: | 8.0A |
| Thermal Overload: | Equipped With An Automatic Thermal Overload | Output HP: | 375W 1/2HP |
| Phase: | Single Phase | Speed: | 1725RPM |
| Shaft Flat: | One Flat | PF: | 0.99 |
| Mounting Orientation: | All Angle | Shaft Diameter: | 0.5"/12.7mm |
| Insulation Class: | Class B | Max. Ambient Temperature: | 40℃/104℉ |
| Bearings: | Ball Bearing | Motor Shell Length: | 165.5mm/6.52" |
| Rotation: | CW-SW | Shaft Length: | 41mm/1.61" |
| Mounting Hole Spacing: | 131mm/5.16" |
