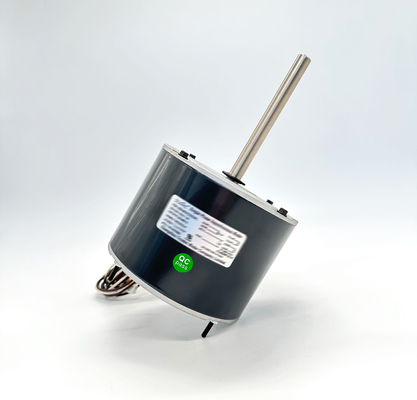

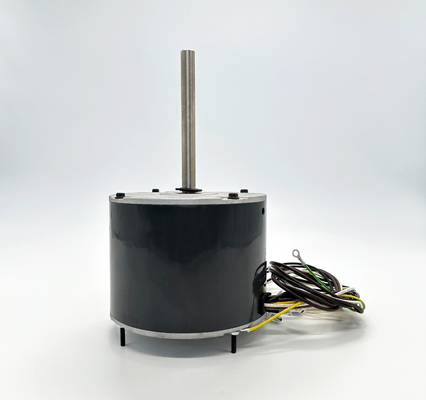

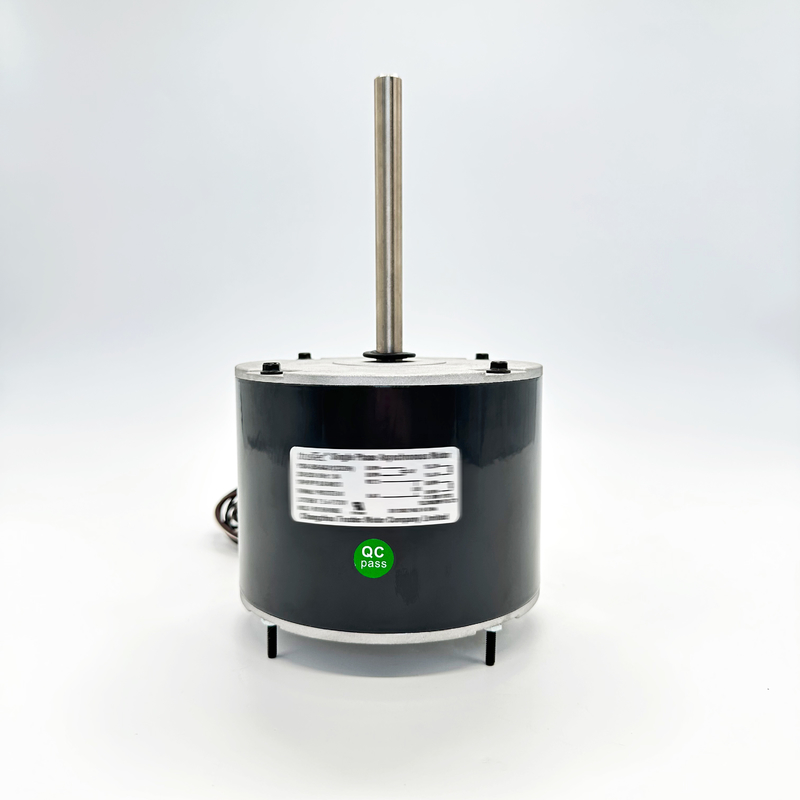

48 Frame Condenser Fan Motor - Ambient Temperature 70℃ 1/4HP 1075RPM 208-230V 60HZ

48 Frame Condenser Fan Motor - Ambient Temperature 70℃ 1/4HP 1075RPM 208-230V 60HZ

  • 48 Frame Condenser Fan Motor - Ambient Temperature 70℃ 1/4HP 1075RPM 208-230V 60HZ
  • 48 Frame Condenser Fan Motor - Ambient Temperature 70℃ 1/4HP 1075RPM 208-230V 60HZ
  • 48 Frame Condenser Fan Motor - Ambient Temperature 70℃ 1/4HP 1075RPM 208-230V 60HZ
48 Frame Condenser Fan Motor - Ambient Temperature 70℃ 1/4HP 1075RPM 208-230V 60HZ
Product Details:
Place of Origin: Changzhou, China
Brand Name: trusTec
Certification: CE、UL529388
Model Number: CTM5-732HS
Payment & Shipping Terms:
Minimum Order Quantity: 200 pcs
Price: Negotiable (FOB/CNF/CIF)
Packaging Details: Standard carton packing, foam board inside for protection.
Delivery Time: 15 days fresh products after order confirmation.
Payment Terms: T/T, L/C
Supply Ability: 100,000 pcs per month
Contact Now
Detailed Product Description
Product: Condenser Fan Motor Frame: Nema 48
Motor Type: Permanent Split Capacitor Supply Volatge: 208-230V
Enclosure Type: TEAO(Totally Enclosed Air Over) Supply Frequency: 60Hz
Thermal Overload: Equipped With An Automatic Thermal Overload Current: 1.8A
Phase: Single Phase Output HP: 1/4HP
Shaft Flats: One Flat Rated Speed: 1075RPM
Mounting Orientation: All Angle Capacitor: 5uF/370V
Drain Hole: Opposite Shaft End Insulation Class: Class F
Mounting: Stud Mounting All Angel Shaft Length: 5.5"
Bearings: Ball Bearing Shaft Diameter: 1/2"
Max. Ambient Temperature: 70℃/158℉ Rotation: Reversible
High Light:

1/4HP Condenser Fan Motor

,

1075RPM Condenser Fan Motor

,

208-230V Condenser Fan Motor

You can refer to the file for more motor models at CROSS REFERENCE TRUSTEC MOTOR.pdf
