TRUSTEC MOTOR YOUR TRUSTED FACTORY
Sales & Support:
 |
| Place of Origin: | Changzhou, China |
| Brand Name: | trusTec |
| Certification: | CE |
| Model Number: | TZD-500-8 |
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Price: | Negotiable (FOB/CNF/CIF) |
| Packaging Details: | Standard carton packing, foam board inside for protection. |
| Delivery Time: | 15 days fresh products after order confirmation. |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 pcs per month |

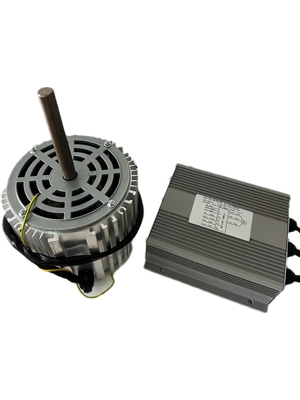

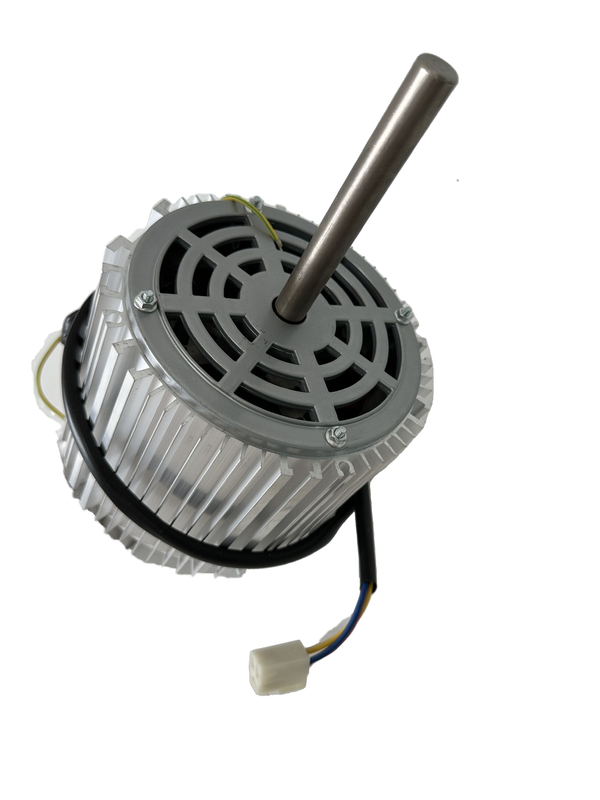

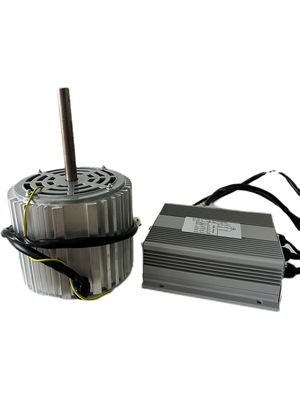

| Product: | Brushless DC Motor | Supply Voltage: | 200-240V |
|---|---|---|---|
| Motor Type: | Air Cooler Motor | Supply Frequency: | 50/60HZ |
| Enclosure Type: | OAO (Open Air Over) | Current: | 4.0A |
| Thermal Overload: | Equipped With An Automatic Thermal Overload | Output Power: | 500W |
| Phase: | Single Phase | Speed: | 1500RPM |
| Mounting: | Stud Mounting All Angel | Poles: | 8P |
| Bearings: | Ball Bearing | Shaft Length: | 4.68" / 119mm |
| Mounting Orientation: | All Angle | Shaft Diameter: | Ф15mm |
| Insulation Class: | Class B | Flat Length: | 3.54" / 90mm |
| Max. Ambient Temperature: | 40℃/104℉ | Lead Length: | 15.7" / 400mm |
| Rotation: | CCW | Frame Size: | Ф139mm |

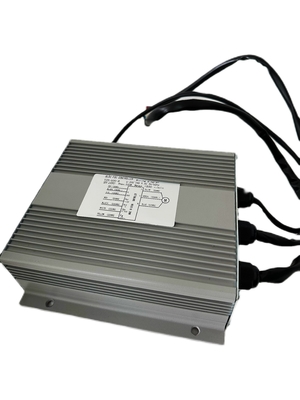

| Speed Control: | 0-10V Speed Control/PWM | ||
| Highlight: | Brushless DC Fan Motor 500W,1500r/Min Brushless DC Fan Motor,High Torque BLDC Motor |
||
