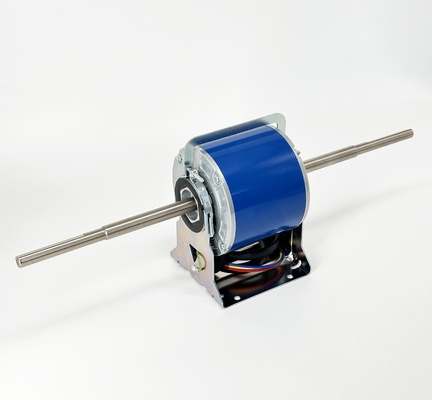

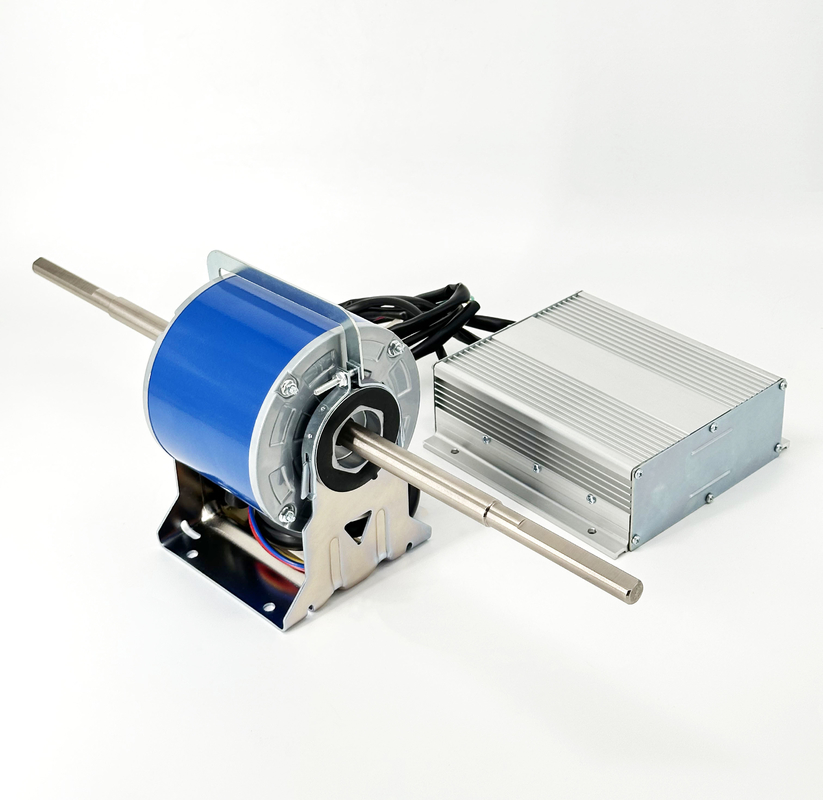

BLDC Motor For Fan Coil Unit Motor - 160W 1500RPM 220V 50HZ
Place of Origin:Changzhou, China
Brand Name:trusTec
Certification:CE
Model Number:TRZ120-160-8
Minimum Order Quantity:200 pcs
Price:Negotiable (FOB/CNF/CIF)
Payment Terms:T/T, L/C
Supply Ability:100,000 pcs per month
Tags:
Product Details
Highlight:
220V BLDC Fan Motor
,1500RPM BLDC Fan Motor
,160W BLDC Fan Motor
Product:
Brushless DC Motor
Supply Voltage:
220V
Motor Type:
Fan Coil Unit Motor
Supply Frequency:
50Hz
Enclosure Type:
TEAO(Totally Enclosed Air Over)
Current:
1.5A
Thermal Overload:
Equipped With An Automatic Thermal Overload
Output HP:
160W
Phase:
Single Phase
Rated Speed:
Variable Speed/Stepless Speed 300-1500RPM
Mounting:
Stud Mounting All Angel
Poles:
8P
Bearings:
Ball Bearing
Shaft Diameter:
1/2" / 12.7mm
Operating Type:
S1
Shaft Length:
7.4" / 190mm
Max. Ambient Temperature:
40℃/104℉
Flat Length:
2.8" / 70mm
Rotation:
CW(LE)
Lead Length:
35" / 900mm
Insulation Class:
Class B

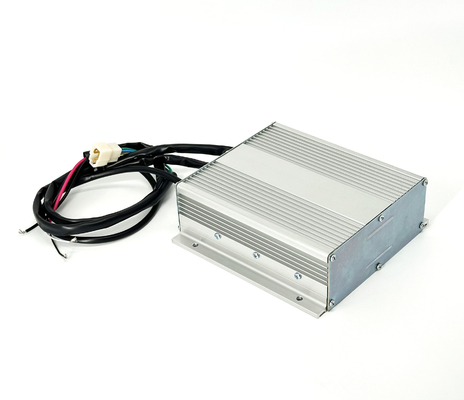

Controller:
0-10V
Product Description
Product Summary
