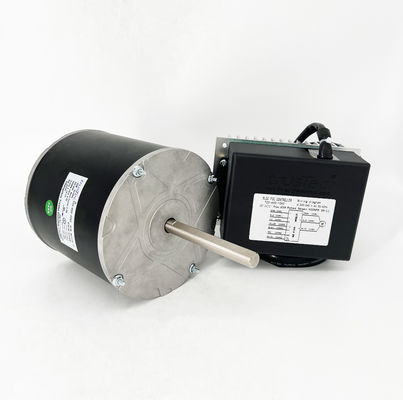

Name: 600W 220-240V 50/60HZ EC Condenser Fan Motor for Air Conditioner with 925RPM Speed
Brand: Changzhou Trustec Company Limited
SKU: TZS-600-10A2-NLR
Price: 228.70 USD
Availability: InStock

Home Products Air Conditioner Fan Motor

600W 220-240V 50/60HZ EC Condenser Fan Motor for Air Conditioner with 925RPM Speed

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	trusTec
Model Number:	TZS-600-10A2-NLR

Payment & Shipping Terms:

Minimum Order Quantity:	200
Price:	$228.70-230.10

Contact Now

Detailed Product Description

Continuous Current:	5.25A	Efficiency:	Ie 3
Speed:	925RPM	Frame Size:	143mm
Motor Mounting:	Foot Mount	Rated Power:	220-240W
Rated Voltage:	220-240V	Motor Type:	Condenser Fan Motor
Enclosure Type:	TEAO	Phase:	Single Phase
Shaft Diameter:	12.7mm	Shaft Length:	98.5mm
Max Ambient Temperature:	40℃	Control Mode:	PWM
Poles:	10P
Highlight:	600W EC Condenser Fan Motor , 220-240V Air Conditioner Fan Motor , 50/60HZ HVAC Fan Motor

EC Condenser Fan Motor for Air Conditioner - 600W 925RPM 220-240V 50/60HZ

Premium Electronically Commutated Motor for HVAC Systems

This high-efficiency EC condenser fan motor delivers reliable performance for air conditioning units with its advanced electronically commutated technology and durable construction.

Key Specifications

Feature	Specification
Motor Type	Condenser Fan Motor
Enclosure Type	TEAO (Totally Enclosed Air Over)
Thermal Protection	Automatic Thermal Overload
Phase	Single Phase
Mounting	Stud Mounting All Angle
Bearings	Ball Bearing
Supply Voltage	220-240V
Supply Frequency	50/60HZ
Current	5.25A
Output Power	220-240W
Rated Speed	925RPM
Frame Size	5.6" / 143mm
Shaft Diameter	0.5" / 12.7mm
Shaft Length	3.87" / 98.5mm
Flat Length	3.54" / 90mm
Motor Shell Length	5.47" / 139mm
Lead Length	19.69" / 500mm
Max. Ambient Temperature	40℃/104℉
Control Mode	PWM
Poles	10P
Rotation	CW-LE
Insulation Class	Class B

Design Advantages

All-angle mounting for flexible installation in various orientations
Thermal overload protection ensures safe operation under demanding conditions
Ball bearing construction provides smooth operation and extended service life
PWM control enables precise speed regulation for optimal performance
