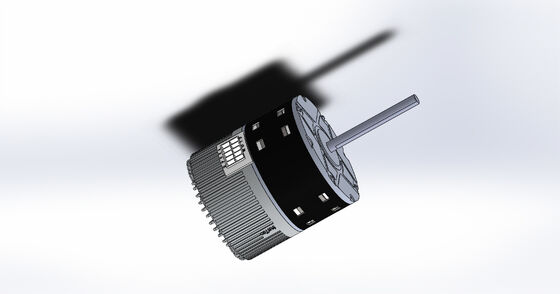

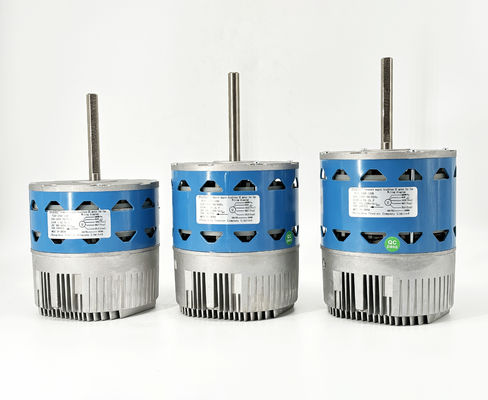

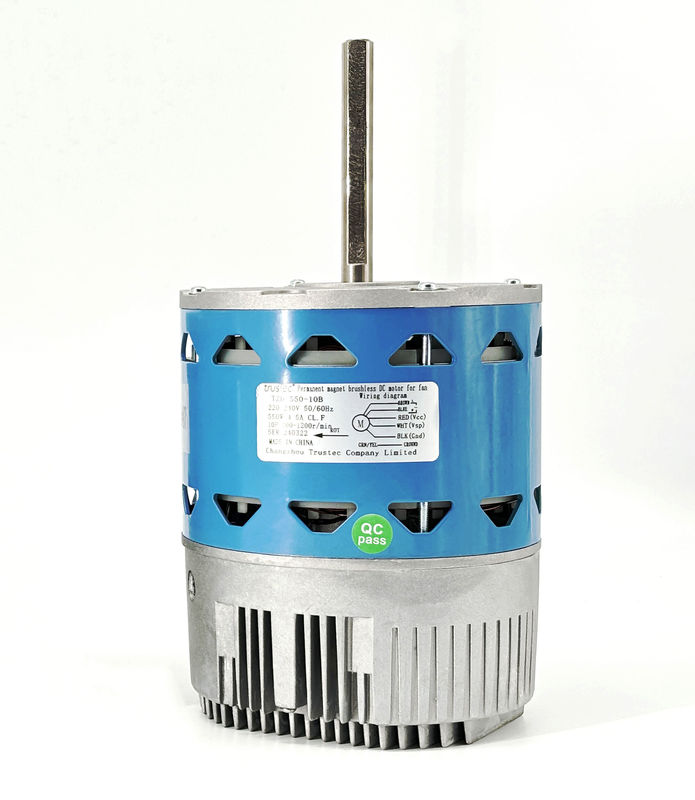

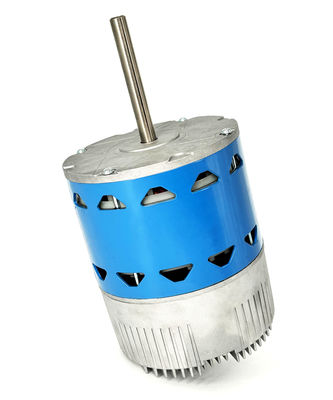

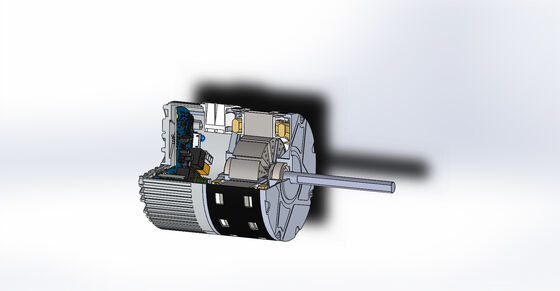

ECM Blower Motor

High-Efficiency Integrated ECM Motor for HVAC Indoor Applications

Product Overview

The ECM Blower Motor is a high-efficiency, fully integrated motor solution designed for indoor HVAC air-moving equipment. By combining advanced permanent magnet motor technology with an intelligent embedded controller, it delivers stable airflow, reduced energy consumption, and quiet, reliable operation.

This motor is designed to replace traditional PSC motors and X13 / constant-torque ECM motors and is widely used in furnaces, air handlers, and residential or light commercial HVAC systems.

For indoor HVAC equipment only.

Core Technologies

Permanent Magnet Synchronous Motor (PMSM)

High-efficiency motor design delivering superior performance and reduced energy loss.

Embedded Intelligent Controller

Integrated control electronics for precise motor operation and system compatibility.

Sensorless Vector Control

Advanced control technology ensures smooth operation without external sensors.

Automatic Rotation Direction Identification

Automatically detects correct airflow direction during startup to prevent installation errors.

Key Benefits

High Energy Efficiency

ECM efficiency exceeds 85%, helping reduce overall system power consumption.

Quiet and Smooth Operation

Soft start and soft stop minimize noise and mechanical stress.

Consistent Airflow Performance

Constant torque output ensures stable airflow across multiple speed levels.

Easy System Integration

Dual-voltage platform simplifies replacement and installation.

Error-Free Installation

Automatic rotation detection prevents incorrect airflow direction.

Long-Term Reliability

Integrated protection features safeguard both the motor and controller.

Electrical Specifications

Input & Power

• Input Voltage: 115–120 VAC ±10% or 220–230 VAC ±10%

• Frequency: 50 / 60 Hz

• Phase: Single Phase (L / N / PE)

Power Consumption

• Maximum Input Power: 1000 W

• Maximum Input Current: 15 A

• Standby Power Consumption: < 5 W

Operating Mode

• Duty Cycle: Continuous (S1)

Motor Performance

Motor Characteristics

• Motor Type: Permanent Magnet Synchronous Motor (PMSM)

• Control Method: Sensorless Vector Control

Performance Range

• Speed Levels: 600 / 750 / 900 / 1070 / 1200 RPM

• Power Range: 1/6 – 1 HP

• Motor Efficiency: > 85%

Flexible Speed Control

Supported Control Methods

• AC Control: 10–30 VAC

• DC Control: 8–27 VDC

• PWM Control: 50–200 Hz, 10–90% duty cycle

Signal Priority Logic

SP5 > SP4 > SP3 > SP2 > SP1

When no control signal is present, the motor remains off.

Automatic Rotation Direction Identification (ARDI)

After initial AC power-up, the motor automatically performs short bidirectional detection cycles to identify the correct airflow direction.

This function simplifies installation and helps avoid performance issues caused by incorrect motor rotation.

Do not power off the motor during this process.

Integrated Protection System

Electrical & Thermal Protection

• Locked-rotor protection

• Overcurrent protection

• Over-voltage and under-voltage protection

• Over-temperature protection

System Protection

• Overload protection

• Short-circuit protection

• Automatic fault recovery

Environmental and Operating Conditions

Operating Environment

• Operating Temperature: –15°C to +45°C

• Humidity: < 90% RH (non-condensing)

Storage Conditions

• Storage Temperature: –40°C to +60°C

Protection Rating

• IP40 (Indoor use only)

For proper cooling, the motor must be installed within the HVAC system airflow path.

Installation Information

Mechanical Specifications

• Frame Size: NEMA 48

• Mounting Method: Belly band bracket

• Shaft Diameter: 1/2 inch

Installation Notes

Ensure the blower wheel is properly centered and wiring exits downward during installation.

Maintenance

Maintenance Requirements

The motor is permanently lubricated and requires no routine lubrication.

Recommended Practices

• Regular air filter replacement

• Blower wheel cleaning

• Moisture prevention

• Annual HVAC system servicing

Troubleshooting Overview

Common Issues

• Motor not running: No power supply or no control signal

• Incorrect speed: Incorrect signal level selection

• Motor shutdown: Protection function activated

• Abnormal noise: Blower wheel imbalance

Reliability and Warranty

Reliability Data

• MTBF: ≥ 20,000 hours

• Insulation Resistance: ≥ 100 MΩ

• Dielectric Strength: 1800 VAC

Warranty Information

• Warranty Period: 18 months

Improper installation will void the warranty. Damage caused by incorrect wiring, moisture exposure, misuse, or operation outside rated conditions is not covered.

Wiring Compatibility

X13 Compatibility

This ECM blower motor follows the same control wiring concept as GE X13 constant-torque ECM motors, enabling easy replacement and compatibility with existing HVAC systems.

Important Notice

Do not apply high voltage to low-voltage signal terminals. Incorrect wiring may permanently damage the motor controller.
