| Place of Origin: | Changzhou, China |
| Brand Name: | trusTec |
| Certification: | CE |
| Model Number: | TECMS-600-10B-ARN |
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Price: | Negotiable (FOB/CNF/CIF) |
| Packaging Details: | Standard carton packing, foam board inside for protection. |
| Delivery Time: | 15 days fresh products after order confirmation. |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 pcs per month |

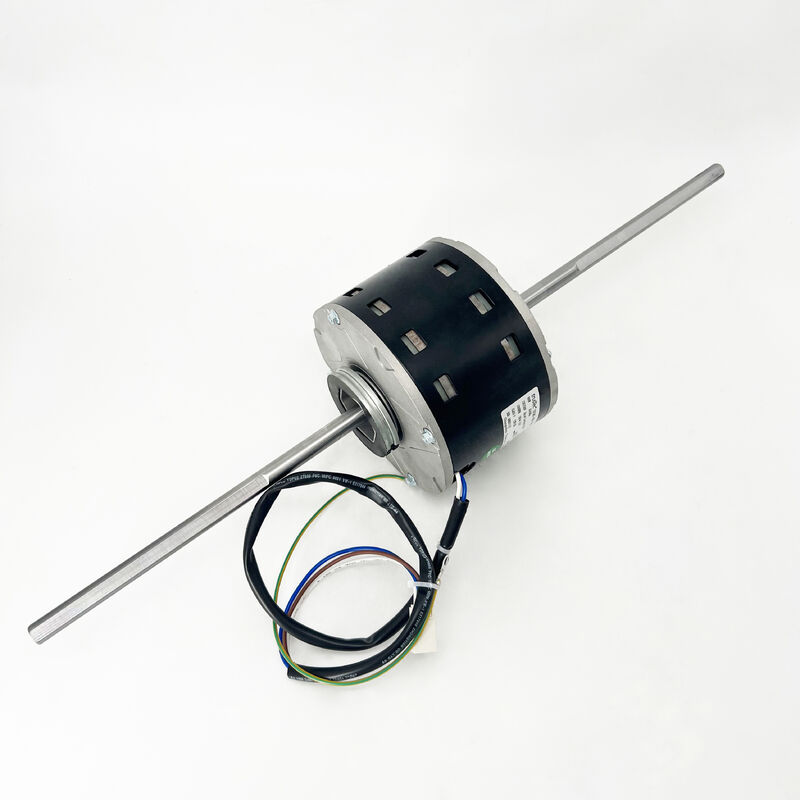

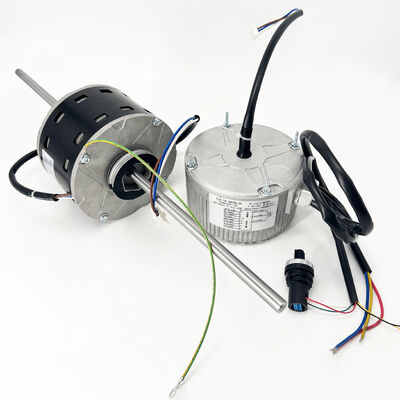

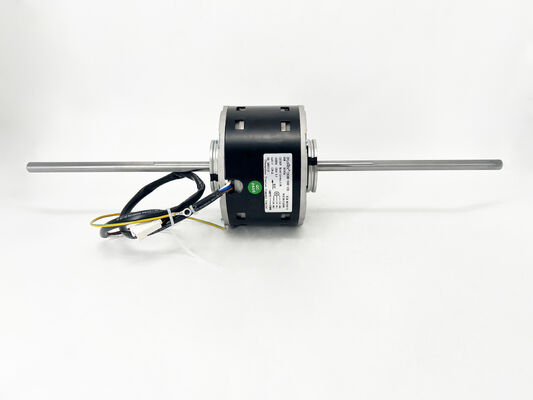

| Motor Type: | ECM Fan Motor | Frame: | 48 Frame |
|---|---|---|---|
| Enclosure Type: | OAO(Open Air Over) | Supply Voltage: | 120/240V |
| Thermal Overload: | Equipped With An Automatic Thermal Overload | Supply Frequency: | 50/60HZ |
| Current: | 6.8A | Mounting: | Bracket |
| Output Power: | 600W 4/5HP | Bearings: | Ball Bearing |
| Speed: | 200~1300RPM | Efficiency: | Rated 1050RPM IE5 85.8% |
| Mounting Orientation: | All Angle | Poles: | 10P |
| Insulation Class: | Class F | Max. Ambient Temperature: | 70℃/158℉ |
| Control Mode: | VSP 2~9V | Flat Length: | 153mm/6.02" *2 |
| Rotation: | CCW-LE | Shaft Length: | 223.5mm/8.80" *2 |
| Shaft Diameter: | 12.7mm/0.5" | Motor Shell Length: | 124mm/4.88" |
