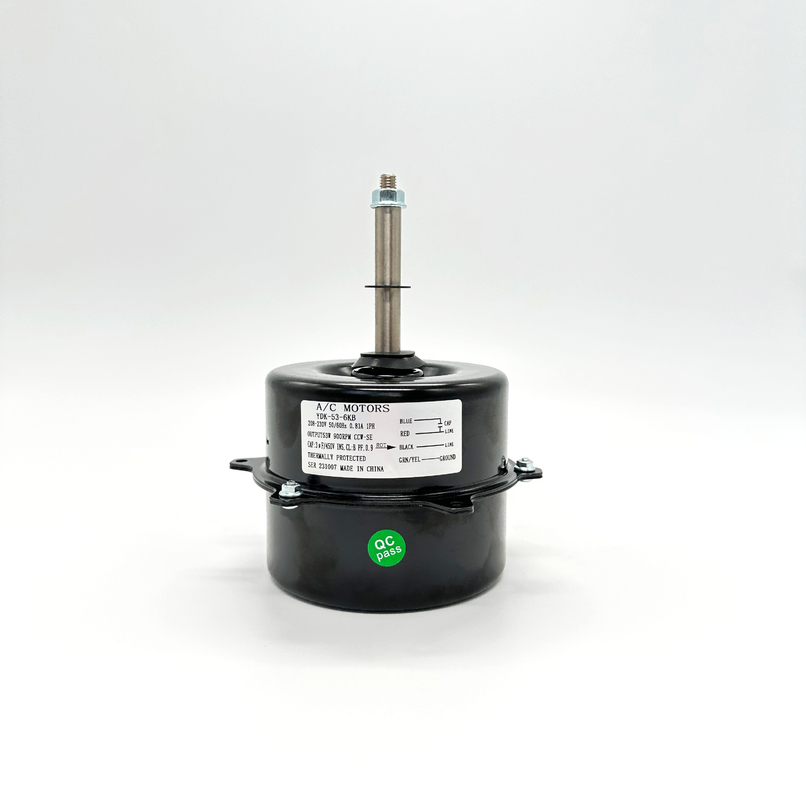

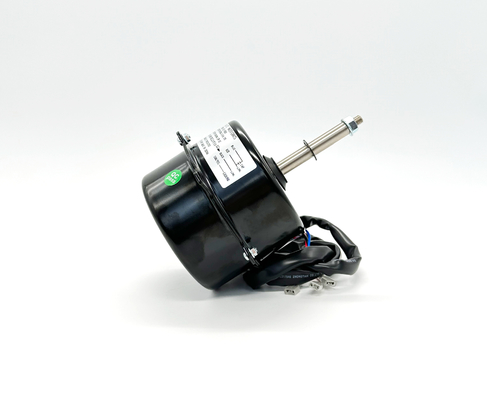

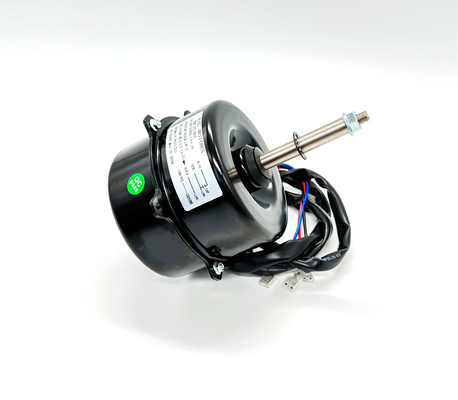

AC Motor -53W 900RPM Asynchronous Motor for Air Conditioner YDK110-53-6A5

AC Motor -53W 900RPM Asynchronous Motor for Air Conditioner YDK110-53-6A5

  • AC Motor -53W 900RPM Asynchronous Motor for Air Conditioner YDK110-53-6A5
  • AC Motor -53W 900RPM Asynchronous Motor for Air Conditioner YDK110-53-6A5
  • AC Motor -53W 900RPM Asynchronous Motor for Air Conditioner YDK110-53-6A5
AC Motor -53W 900RPM Asynchronous Motor for Air Conditioner YDK110-53-6A5
Product Details:
Place of Origin: Changzhou, China
Brand Name: trusTec
Certification: CE、High-tech Enterprise Certificate、ISO9000 Certificate 2023
Model Number: YDK110-53-6A5
Payment & Shipping Terms:
Minimum Order Quantity: 200 pcs
Price: Negotiable (FOB/CNF/CIF)
Packaging Details: Standard carton packing, foam board inside for protection.
Delivery Time: 15 days fresh products after order confirmation.
Payment Terms: L/C, T/T
Supply Ability: 100,000 pcs per month
Contact Now
Detailed Product Description
High Light:

900RPM Asynchronous Motor


53W Asynchronous Motor


Asynchronous AC Fan Motor


Product Name Outdoor Fan Motor Voltage


Frequency 50/60 Hz Output Power 53W
Pole 6P AMPS 0.81A
Speed 900RPM Capacitor 3μF/450V
Insulation Class Class B            Rotation CCW-SE



Key Parameters

Model Number

Output Power






Rated Speed


Rated Current


YDK110-53-6A5 53 208-230 50/60 900 0.81

Ps:all dimension can be customized according to customer requirement.


AC Motor -53W 900RPM Asynchronous Motor for Air Conditioner YDK110-53-6A5



Product Features

1.Use NSK low noise high quality ball bearing;
2.Nickel plating for shaft, electrophoretic coating for enclosure;
3.Over-heating and over-current protection, rotation-clogging protection;
4.Multiple waterproof, anti-rust property, meet different working conditions;
5.Reasonable structure, high efficiency, low temperature rise, low noise, small vibration.


Product Application

1.Air refresher,indoor unit of air conditioner
3.Air ventilation fan,air curtain



Our Advantages


2.One Stop Service
3.Solutions Supplier
4.Quality Guarantee
5.Focus and Commitment
6.Teamwork ability with quick response




Q:Can I get a sample before the order because I really don't know how is your quality?

A:We can provide free sample service! Do not hesitate to send inquiry to get the free sample!


Q:What's the delivery time?Because we really need them is urgently?

A:7days For sending sample order. 20-30days for regular order , depends your order quantity.


Q:How to send a inquiry for more information?

A:When you send enquiry to us,please let us know your Wechat,Whapps or Skype Id,so that we can quote the offer at once. We are always on line waiting for you.


AC vs DC Motor Comparisons

Speed Control:Speed can be controlled in both types of motor. AC motor velocity is controlled by the frequency of the power source. AC motors run directly off the power source and in most countries would be designed to produce a rated speed based on an input frequency of 60 Hz. However, to vary the frequency to the motor, many applications utilize specialized electronics (Variable Frequency Drives) to provide adjustable speed control. DC motor speeds can be simply controlled by varying the available DC voltage to the motor. Many control solutions exist to provide precision speed control for applications such as robotics.

Efficiency:Three phase induction motors tend to offer improved efficiencies at higher power levels and rated speeds. Brushless DC motors offer better efficiencies across a broader range of performance and provide better performance at lower speeds and lighter loads. Brushed DC motors, however, have added components (brushes and commutator) that introduce some inefficiencies.

Maintenance:AC motors and Brushless DC motors are preferred in most manufacturing settings since these motors require less maintenance and have longer life spans in comparison to brush DC motors, which need to be serviced more often to replace brushes or to refurbish commutator surfaces.

Cost:AC motors are often the most cost-effective solution for large power applications and applications with constant speed and load requirements. Higher precision and increased load variations introduce more sophisticated control requirements. While brushless DC motors with higher efficiencies and additional control complexities may have higher initial costs, their lifetime costs are comparable to AC motors.

Starting Torque:Induction motors have minimal starting torque compared with DC Motors that can be overcome with starting devices. DC motors offer higher starting torques that translate to quick accelerations. Many applications that require fast indexing and quick move and settle times require high acceleration capabilities.

Applications:AC motors make up a large volume of electric motors sold worldwide and are used in many applications such as household appliances, pumps, fans, HVAC systems, and other industrial machinery. DC motors are popular for mobile applications in electric vehicles, automated guided vehicles, and submersible ROV’s. They are also found in robotics, conveyor systems, packaging machinery, and many types of precision equipment.

In recent years, advancements in motor technology have led to more efficient and versatile options for both AC and DC motors that sometimes blur the lines between their traditional differences.
