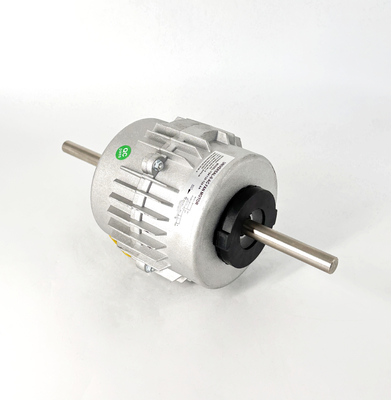

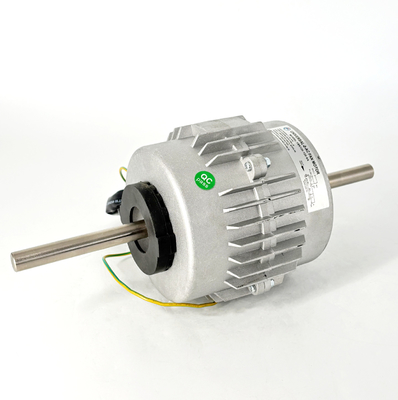

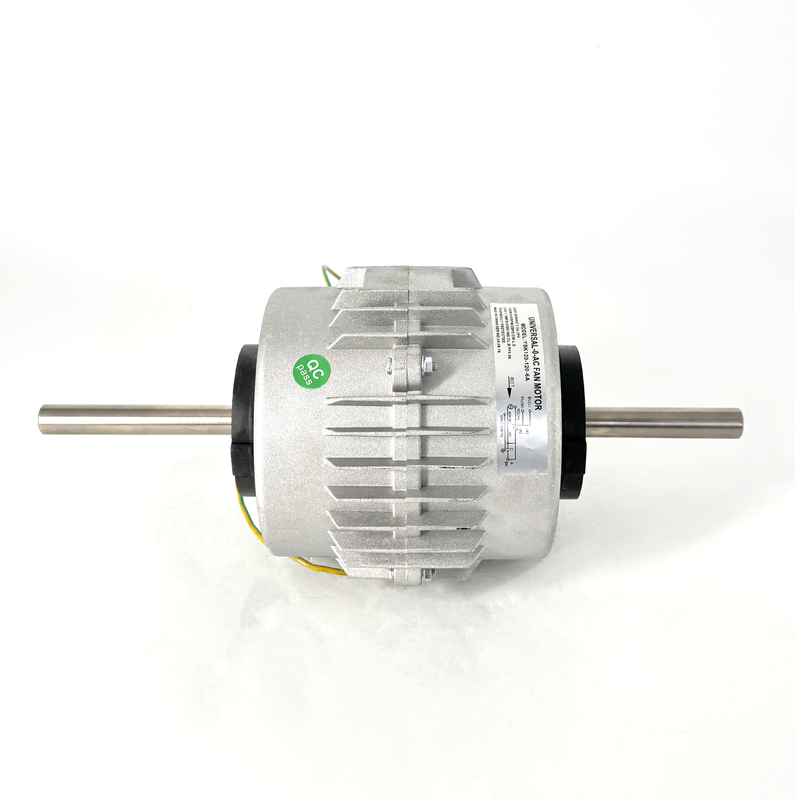

Air Conditioner Ac Electric Fan Motor - 120W 910RPM/3SPD 220V 50/60Hz

Air Conditioner Ac Electric Fan Motor - 120W 910RPM/3SPD 220V 50/60Hz

  • Air Conditioner Ac Electric Fan Motor - 120W 910RPM/3SPD 220V 50/60Hz
  • Air Conditioner Ac Electric Fan Motor - 120W 910RPM/3SPD 220V 50/60Hz
  • Air Conditioner Ac Electric Fan Motor - 120W 910RPM/3SPD 220V 50/60Hz
Air Conditioner Ac Electric Fan Motor - 120W 910RPM/3SPD 220V 50/60Hz
Product Details:
Place of Origin: Changzhou, China
Brand Name: trusTec
Certification: CE
Model Number: YSK120-120-6A-CMT
Payment & Shipping Terms:
Minimum Order Quantity: 200 pcs
Price: Negotiable (FOB/CNF/CIF)
Packaging Details: Standard carton packing, foam board inside for protection.
Delivery Time: 15 days fresh products after order confirmation.
Payment Terms: T/T, L/C
Supply Ability: 100,000 pcs per month
Contact Now
Detailed Product Description
Product: Single Phase AC Motor Frame Size: 120mm
Motor Type: Permanent Split Capacitor Supply Voltage: 220V
Enclosure Type: TEAO (Totally Enclosed Air Over ) Supply Frequency: 50/60Hz
Thermal Overload: Equipped With An Automatic Thermal Overload Current: 1.1A
Phase: Single Phase Output HP: 120W
Shaft Flats: One Flat Rated Speed: 910RPM/3SPD
Mounting: Stud Mounting All Angel Shaft Diameter: 0.6" / 15mm
Insulation Class: Class B Bearings: Ball Bearing
Max. Ambient Temperature: 40℃/104℉ Lead Length: 39.4" / 1000mm
Rotation: CW-LE PF: 0.96
Highlight:

120W Air Conditioner Fan Motor

,

3SPD Air Conditioner Fan Motor

,

220V Air Conditioner Fan Motor
