| Place of Origin: | Changzhou, China |
| Brand Name: | trusTec |
| Certification: | CE |
| Model Number: | TZS-250-10A56-QCR |
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Price: | Negotiable (FOB/CNF/CIF) |
| Packaging Details: | Standard carton packing, foam board inside for protection. |
| Delivery Time: | 15 days fresh products after order confirmation. |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 pcs per month |

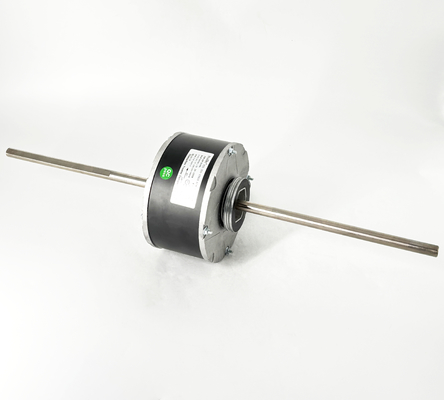

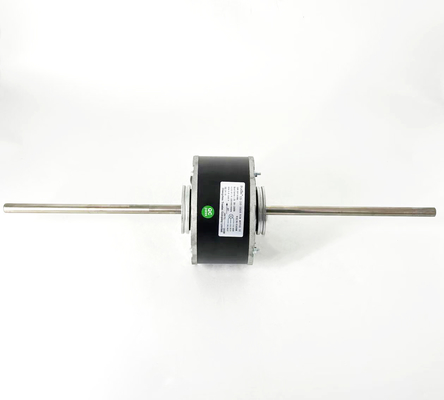

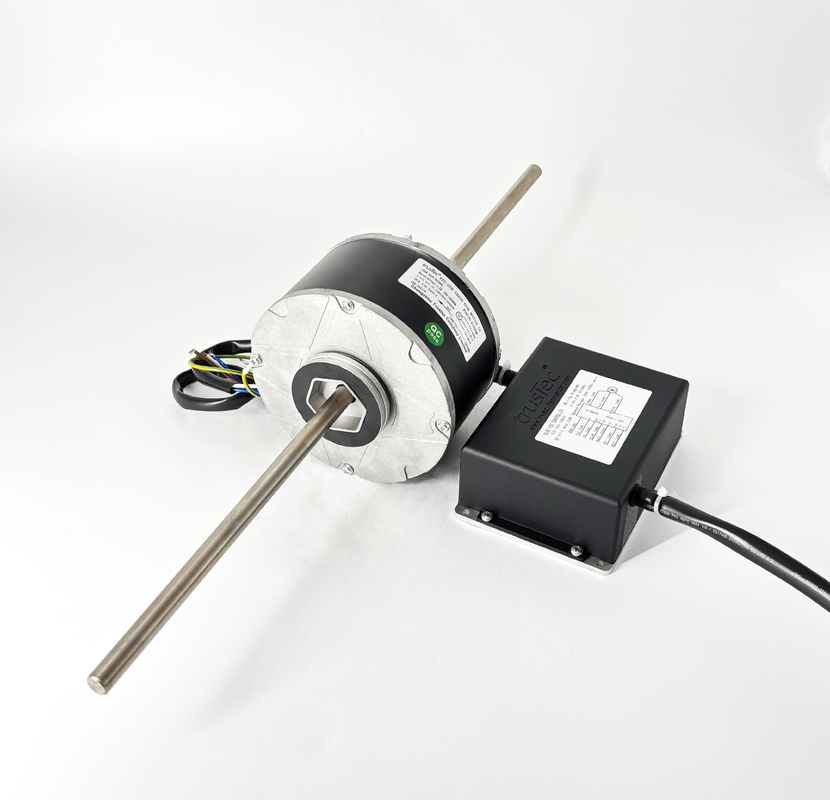

| Product: | Brushless DC Motor | Supply Voltage: | 220V |
|---|---|---|---|
| Enclosure Type: | TEAO(Totally Enclosed Air Over) | Supply Frequency: | 50/60HZ |
| Thermal Overload: | Equipped With An Automatic Thermal Overload | Current: | 1.5A |
| Phase: | Single Phase | Output Power: | 1/3Hp |
| Mounting: | All Angel | Speed: | 200-1200RPM |
| Bearings: | Ball Bearing | Poles: | 10P |
| Mounting Orientation: | All Angle | Frame Size: | 140mm |
| Insulation Class: | Class B | Shaft Length: | 9.05"/230mm |
| Control Mode: | VSP | Shaft Diameter: | 1/2" / 12.7mm |
| Rotation: | CCW(LE) | Max. Ambient Temperature: | 40℃/104℉ |
| Highlight: | 220V BLDC Fan Coil Unit Motor,1/3HP BLDC Fan Coil Unit Motor,1200RPM BLDC Fan Coil Unit Motor |
||
