TRUSTEC MOTOR YOUR TRUSTED FACTORY
Sales & Support:
 |
| Place of Origin: | Changzhou, China |
| Brand Name: | trusTec |
| Certification: | CE |
| Model Number: | TZD-500-8 |
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Price: | Negotiable (FOB/CNF/CIF) |
| Packaging Details: | Standard carton packing, foam board inside for protection. |
| Delivery Time: | 15 days fresh products after order confirmation. |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 pcs per month |

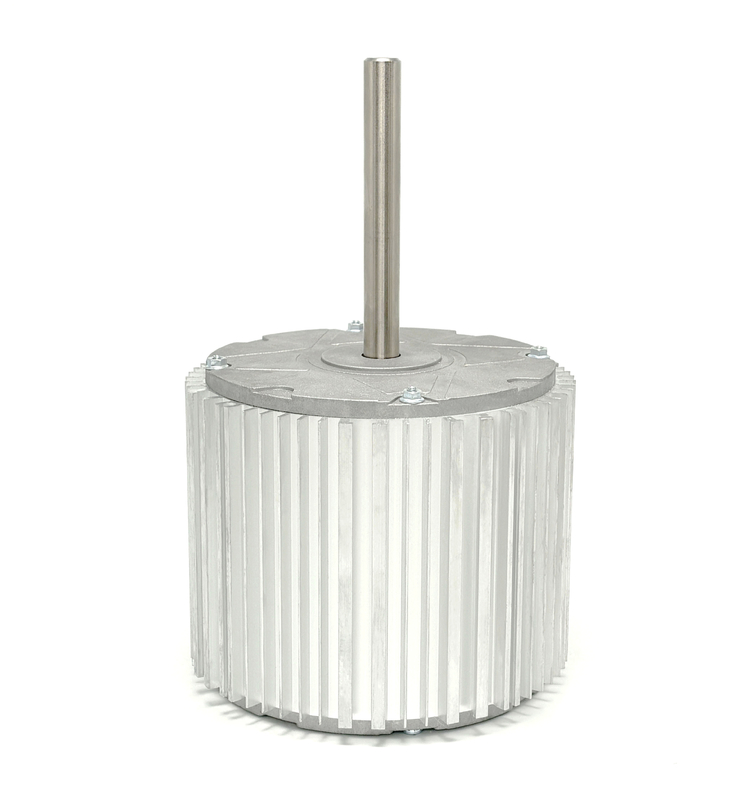

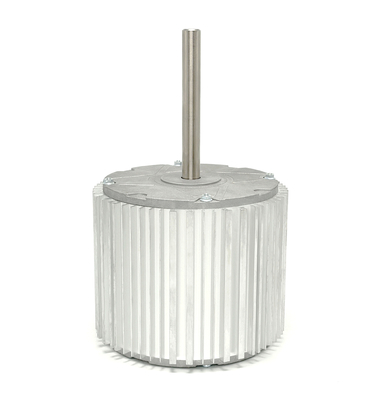

| Product: | Brushless DC Motor | Supply Voltage: | 220V |
|---|---|---|---|
| Motor Type: | Air Cooler Motor | Supply Frequency: | 50/60HZ |
| Enclosure Type: | TEAO(Totally Enclosed Air Over) | Current: | 4.3A |
| Thermal Overload: | Equipped With An Automatic Thermal Overload | Output Power: | 550W |
| Phase: | Single Phase | Speed: | 500-1500RPM |
| Mounting: | Stud Mounting All Angel | Poles: | 10P |
| Bearings: | Ball Bearing | Shaft Length: | 4.68" / 119mm |
| Mounting Orientation: | All Angle | Shaft Diameter: | Ф15mm |
| Insulation Class: | Class B | Flat Length: | 3.54" / 90mm |
| Max. Ambient Temperature: | 40℃/104℉ | Lead Length: | 15.7" / 400mm |
| Rotation: | Reversible | Frame Size: | Ф140mm |

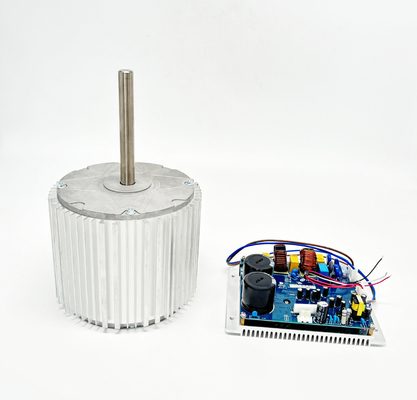

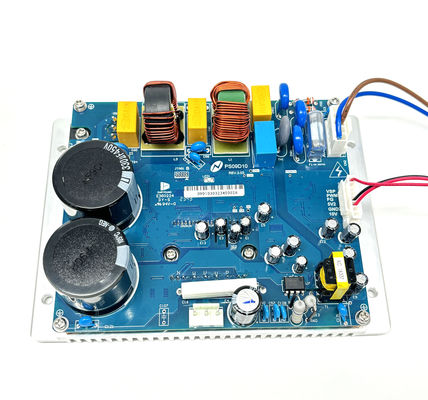

| Speed Control: | 0-10V Speed Control | ||
| Highlight: | 550W BLDC Motor,500-1500RPM BLDC Motor,200V BLDC Motor |
||
