TRUSTEC MOTOR YOUR TRUSTED FACTORY
Sales & Support:
 |
| Place of Origin: | Changzhou, China |
| Brand Name: | trusTec |
| Certification: | CE、UL529388 |
| Model Number: | YDK-90-6B60-PJN |
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Price: | Negotiable (FOB/CNF/CIF) |
| Packaging Details: | Standard carton packing, foam board inside for protection. |
| Delivery Time: | 15 days fresh products after order confirmation. |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 pcs per month |

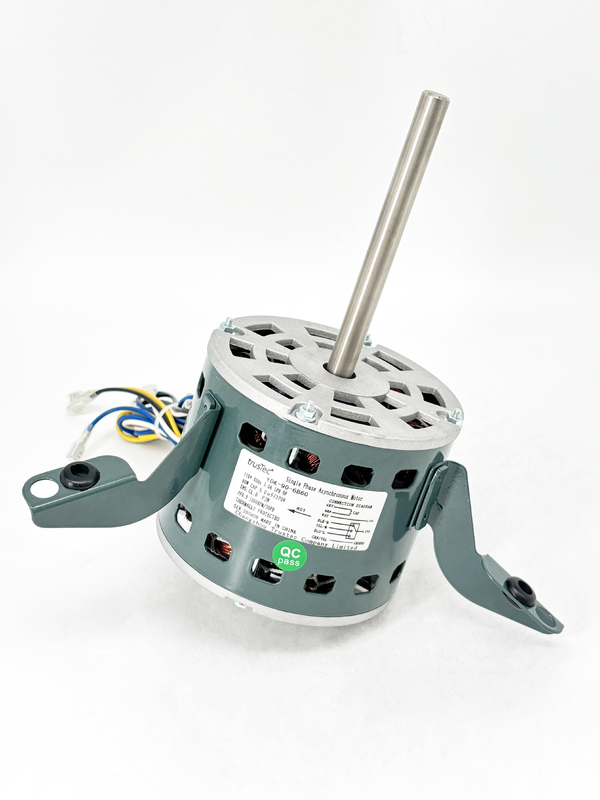

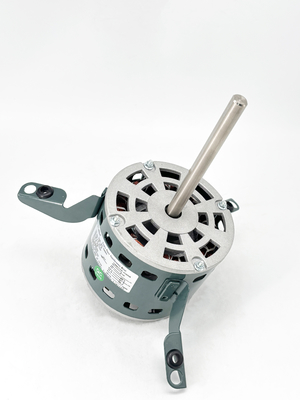

| Product: | HVAC Blower Motor | Supply Voltage: | 240V |
|---|---|---|---|
| Motor Type: | Permanent Split Capacitor | Supply Frequency: | 60Hz |
| Enclosure Type: | OAO(Open Air Over) | Current: | 3A |
| Thermal Overload: | Equipped With An Automatic Thermal Overload | Output HP: | 90W |
| Phase: | Single Phase | Speed: | 1000RPM/3SPD |
| Shaft Flat: | One Flat | Capacitor: | 5.0μF/370V |
| Mounting Orientation: | All Angle | Pole: | 6P |
| Insulation Class: | Class B | Shaft Diameter: | 12.7mm/0.5" |
| Bearings: | Ball Bearing | PF: | 0.9 |
| Rotation: | CW | Shaft Length: | 130mm/5.12" |
| Flat Length: | 80mm/3.15" | Max. Ambient Temperature: | 40℃/104℉ |
| Lead Length: | 700mm/27.56" | Motor Shell Length: | 98mm/3.86" |
