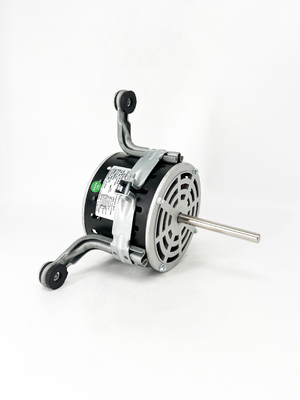

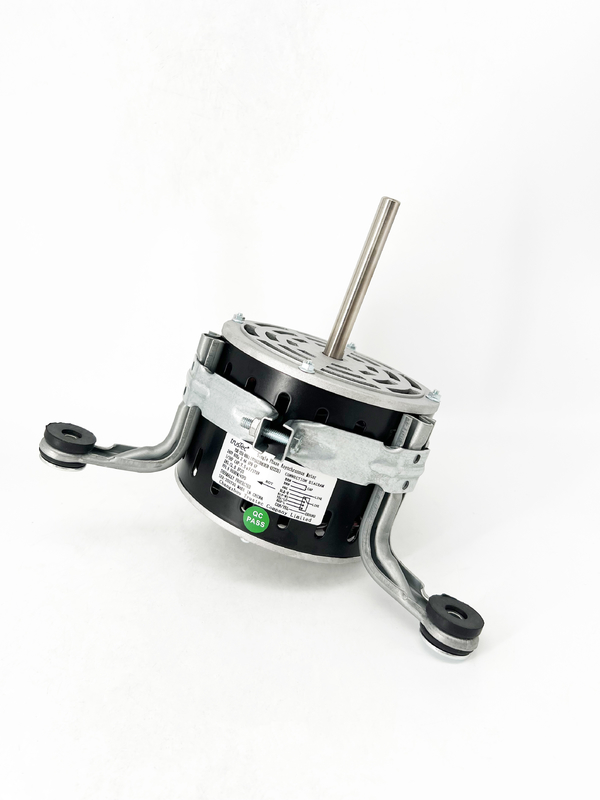

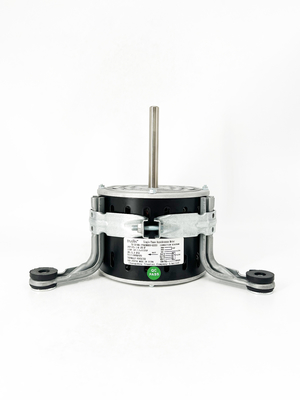

TRUSTEC MOTOR YOUR TRUSTED FACTORY
Sales & Support:

|
| Place of Origin: | Changzhou, China |
| Brand Name: | trusTec |
| Certification: | CE、UL529388 |
| Model Number: | YDK-250-6B61-CJK |
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Price: | Negotiable (FOB/CNF/CIF) |
| Packaging Details: | Standard carton packing, foam board inside for protection. |
| Delivery Time: | 15 days fresh products after order confirmation. |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 pcs per month |
| Product: | HVAC Blower Motor | Frame: | 143mm |
|---|---|---|---|
| Motor Type: | Permanent Split Capacitor | Supply Voltage: | 240V |
| Enclosure Type: | OAO(Open Air Over) | Supply Frequency: | 60Hz |
| Thermal Overload: | Equipped With An Automatic Thermal Overload | Current: | 2.4A |
| Phase: | Single Phase | Output HP: | 250W |
| Shaft Flat: | One Flat | Speed: | 1075RPM/4SPD |
| Mounting Orientation: | All Angle | Capacitor: | 7.5uF/450V |
| Insulation Class: | Class B | Pole: | 6P |
| Bearings: | Ball Bearing | Shaft Diameter: | 12.7mm/0.5" |
| Rotation: | CW | PF: | 0.9 |
| Shaft Length: | 101mm/3.98" | Flat Length: | 95mm/ 3.74" |
| Max. Ambient Temperature: | 40℃/104℉ | Lead Length: | 550mm/21.65" |
| Motor Shell Length: | 105mm/4.13" |
Contact Person: Selena Chai
Tel: +86-13961191626
Fax: 86-519-85109398
