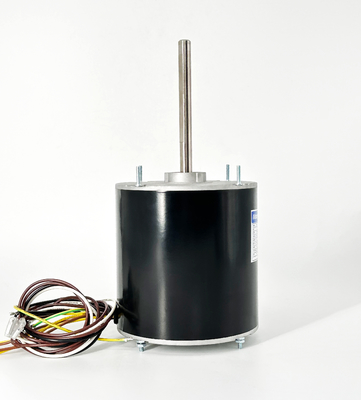

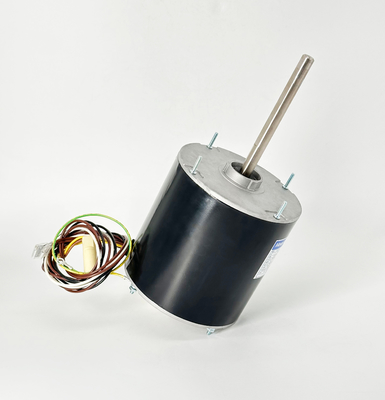

Condenser Fan Motor 208-230V 60HZ 750W 1075RPM Totally Enclosed Air Over (TEAO) Duty Motor

Condenser Fan Motor 208-230V 60HZ 750W 1075RPM Totally Enclosed Air Over (TEAO) Duty Motor

  • Condenser Fan Motor 208-230V  60HZ 750W 1075RPM Totally Enclosed Air Over (TEAO) Duty Motor
  • Condenser Fan Motor 208-230V  60HZ 750W 1075RPM Totally Enclosed Air Over (TEAO) Duty Motor
Condenser Fan Motor 208-230V  60HZ 750W 1075RPM Totally Enclosed Air Over (TEAO) Duty Motor
Product Details:
Place of Origin: Changzhou, China
Brand Name: trusTec
Certification: CE、High-tech Enterprise Certificate、ISO9000 Certificate 2023
Model Number: YDK-750-6A6
Payment & Shipping Terms:
Minimum Order Quantity: 200 pcs
Price: Negotiable (FOB/CNF/CIF)
Packaging Details: Standard carton packing, foam board inside for protection.
Delivery Time: 15 days fresh products after order confirmation.
Payment Terms: T/T, L/C
Supply Ability: 100,000 pcs per month
Contact Now
Detailed Product Description
Rot: Reversible Voltage: 208-230V
Insulation Class: B Speed: 1075 RPM
Output Power: 750W Full Load Current: 5.4A
Motor Type: Condenser Fan Motor Frequency: 60Hz

Key Parameters

Model

Power

/W

Frequency

/Hz

Speed

/RPM

Rated Current

/A

Voltage

/V

YDK-750-6A6 750W 60 1075 5.4 208-230

Ps:all dimension can be customized according to customer requirement.

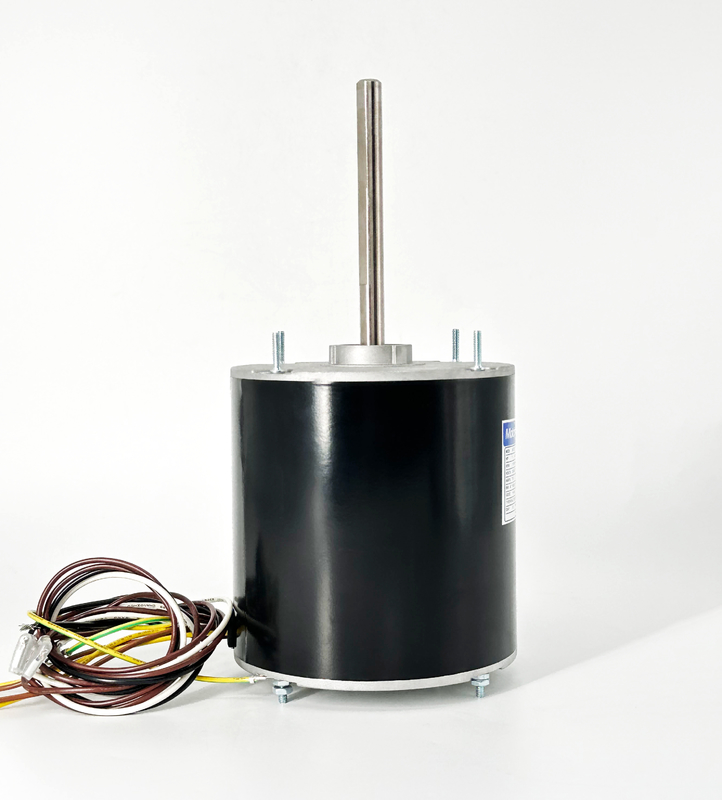

Condenser Fan Motor 208-230V  60HZ 750W 1075RPM Totally Enclosed Air Over (TEAO) Duty Motor



Product Features

1. Use NSK low noise high quality rolling bearing.

2. Small vibration,high efficiency .

3. Low temperature ,small vibration.

4. Advanced manufacturing equipment, skilled craftwork, high level of automatization, high quality insurance.

5.Totally Enclosed Air Over (TEAO) – Allows for all position mounting.



Product Applications

1. Air conditioner indoor / outdoor unit.

2. Air Purifiers, Air refresher.

3. Range hood, sewer grinder, dehumidifier, medical equipment, special blender etc.

4.AC condenser fans



FAQ

Q1- What is the warranty of the motors?

The warranty is 36 months on the production date, under the warranty we will afford the shipping cost to send the replacement.



Q2- What is the application of the motors?

All the motors are widely used in HVC&R line.



Q3- Can you design the motor according to the different request?

Yes, we can offer the ODM.



Q4- Do you have distributors overseas?

Yes. We have distributors in USA, Holland, Spain, Turkey, Sudan, UAE, KSA...



Q5- What is the most important advantage for the export?

Besides the competitive price with the good quality, the critical point is the quick response, the efficient export team and the fast delivery time.



Q6- How to get the accurate offer?

The precise price will be quoted after checking the specification and mounting dimension of the motor.



Company introduction

Changzhou Trustec Company is working on the solutions supplier for the fan motors and the blower fans.
We are capable of designing and producing the fan motors from diameter 3.3'' to 6.3'' and output power from 8W to 5KW.
As the professional supplier for the fan motors and blowers, we are efficient to respond to the customized requests and make sure the motors and blowers highly matched with the top performance.

Hereof we list the advantages you will agree and approve when you working with us.
1. One Stop Service
2. Solutions Supplier
3. ODM
4. Quality Guarantee
5. Teamwork ability with quick response

We have the export experience over 10 years, our main market is The Kingdom of Saudi Arabia, The Netherlands, South Korea, Vietnam, North America. Our motor and blowers have been approved by CE, CCC and SASO, some motors have UL certificate.

We are keen to develop partners in different countries and very willing to help and support our distributors grow together for win-win business. If you are interesting please call us and send inquiry now, thank you always and have nice days to all of you.



Replacing Condenser Fan Motors

Hot weather always brings on a lot of condenser fan motor replacements. Although it is not too difficult to change a condenser fan motor, it is still possible to do it incorrectly. Of course you need a motor that operates at the same voltage, phase, and frequency of the original motor and it should also be the same horsepower. However, I would like to mention a few items to check that I often find techs have overlooked. First, make sure the motor you plan to use is actually designed for a condensing fan motor. Specifically, is it sealed and is it designed for vertical shaft installation (assuming a typical vertical mount, induced draft condenser fan). Motors with air vents on the sides or top should not be used outside. Also, all motors are not rated for vertical shaft installation. Some motors are designed for horizontal shaft mount only because they do not have the necessary thrust bearing to take the downward force against the bearing when the fan pushes air up. Next, is the motor the correct RPM? Some condenser fan motors turn 1075 RPM while others turn around 850 RPM. They are not interchangeable. If you can’t read the label on the old motor, take it apart and look at the number of poles. A 6 pole motor will be a 1075 RPM motor and an 8 pole motor will be an 850 RPM motor. Does the new motor turn in the correct direction? If you cannot see the markings on the old motor, you can tell by looking at the fan blade. First, the cups of the blades should be facing up on an upflow blower. Next, the blade should turn in a direction that allows the lower part of the blade to hit the air first. If the blade turns clockwise looking down on it, this is called clockwise shaft end, or counter clockwise lead end because the lead end rotation is always opposite the shaft end. Some motors specify the rotation looking at the shaft while others specify looking at the opposite end where the leads come out. If you are using a general purpose replacement motor, such as a Rescue Motor, you can change the motor rotation if you need to. Some of these motors use different size capacitors for different horsepower ranges. Make sure the capacitor you are using fits the application. Most likely, the capacitor for the old motor will not be the correct size. Most sealed condenser fan motors have weep holes on the bottom that come plugged with plastic caps. You should remove these when installing the motor. The idea is to let condensation out. The motor will last longer if you open the bottom weep holes. After installing the motor and fan, turn the unit on and then off again to see which way the blade is turning. If it is turning in the wrong direction, change the rotation leads on the motor. Changing the power leads will have no effect. Once you establish that the fan is turning in the correct direction, operate the unit and check the motor amp draw. If it operates close to the manufacturer’s FLA specification for your particular application, you should be good to go.
