| Place of Origin: | Changzhou, China |
| Brand Name: | trusTec |
| Certification: | CE |
| Model Number: | TECMD-375-10B2-ARN |
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Price: | Negotiable (FOB/CNF/CIF) |
| Packaging Details: | Standard carton packing, foam board inside for protection. |
| Delivery Time: | 15 days fresh products after order confirmation. |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 pcs per month |

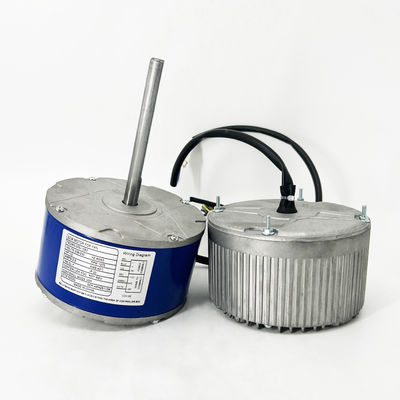

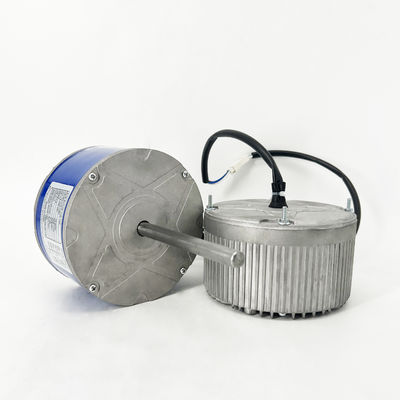

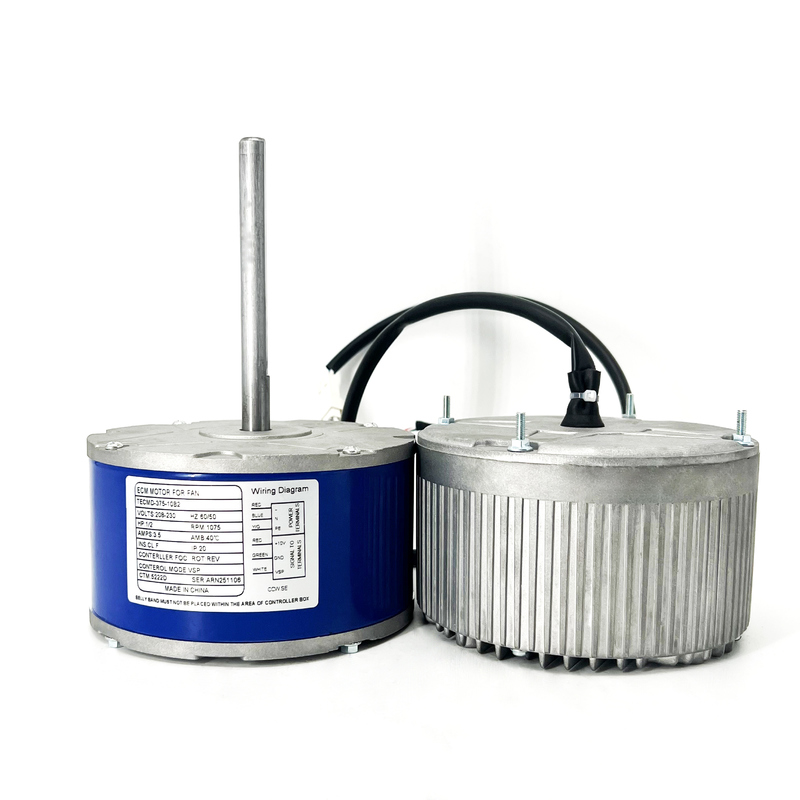

| Product: | ECM Fan Motor | Frame: | 48 Frame |
|---|---|---|---|
| Enclosure Type: | TEAO(Totally Enclosed Air Over) | Supply Voltage: | 208-230V |
| Thermal Overload: | Equipped With An Automatic Thermal Overload | Supply Frequency: | 50/60HZ |
| Phase: | Single Phase | Current: | 3.5A |
| Mounting: | Bracket | Output Power: | 375W 1/2HP |
| Bearings: | Ball Bearing | Speed: | 1075RPM |
| Mounting Orientation: | All Angle | Poles: | 10P |
| Insulation Class: | Class F | Max. Ambient Temperature: | 70℃/158℉ |
| Control Mode: | VSP | Flat Length: | 153mm/6.02" |
| Rotation: | CCW(LE) | Shaft Length: | 222mm/ 8.74" |
| Shaft Diameter: | 12.7mm/0.5" | Motor Shell Length: | 109mm/4.29" |
