| Place of Origin: | Changzhou, China |
| Brand Name: | trusTec |
| Certification: | CE |
| Model Number: | TZD-750-10A-UMG |
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Price: | Negotiable (FOB/CNF/CIF) |
| Packaging Details: | Standard carton packing, foam board inside for protection. |
| Delivery Time: | 15 days fresh products after order confirmation. |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 pcs per month |

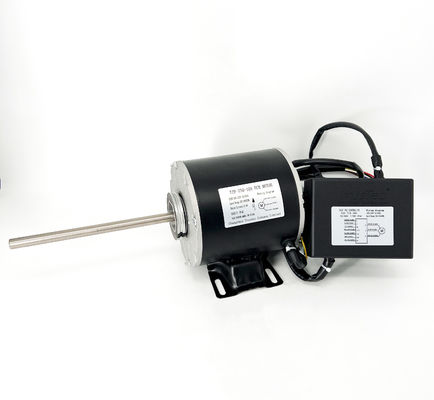

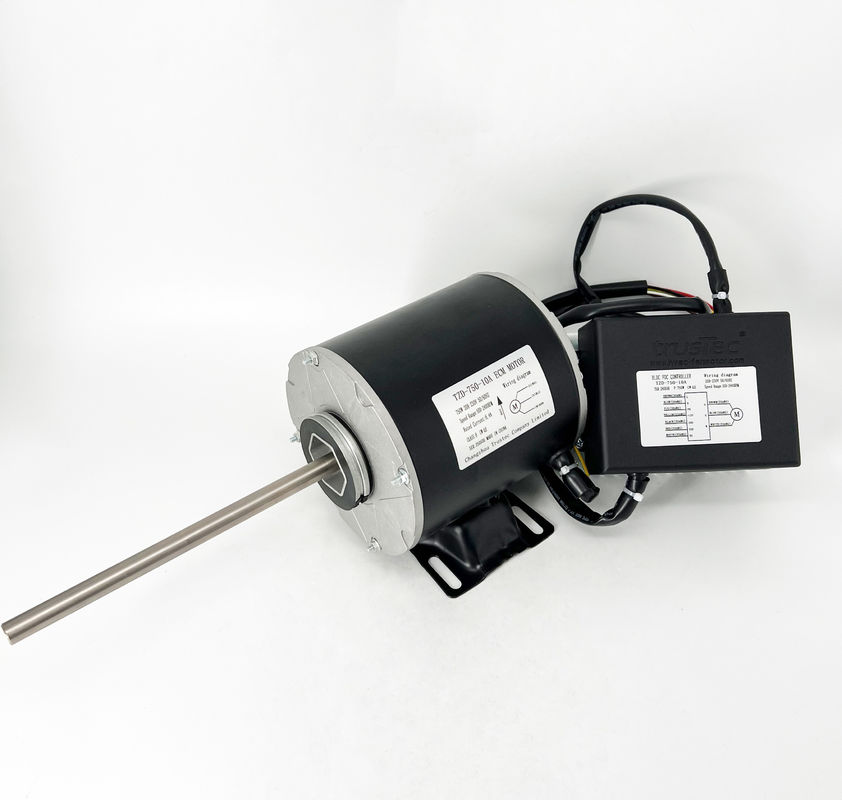

| Product: | EC Fan Coil Unit Motor | Frame: | 144mm |
|---|---|---|---|
| Enclosure Type: | TEAO(Totally Enclosed Air Over) | Supply Voltage: | 208-230V |
| Thermal Overload: | Equipped With An Automatic Thermal Overload | Supply Frequency: | 50/60HZ |
| Phase: | Single Phase | Current: | 6.4A |
| Mounting: | Bracket | Output Power: | 750W |
| Bearings: | Ball Bearing | Speed: | 500-2400RPM |
| Mounting Orientation: | All Angle | Poles: | 10P |
| Insulation Class: | Class B | Control Mode: | VSP |
| Shaft Length: | 14.63"/371.5mm | Rotation: | CW-LE |
| Shaft Diameter: | 0.5"/12.7mm | Max. Ambient Temperature: | 40℃/104℉ |
| Lead Length: | 19.69"/500mm | Motor Shell Length: | 5.22"/132.6mm |
| Highlight: | 2400RPM EC Fan Coil Unit Motor,EC Fan Coil Unit Motor,750W Fan Coil Unit Motor |
||
