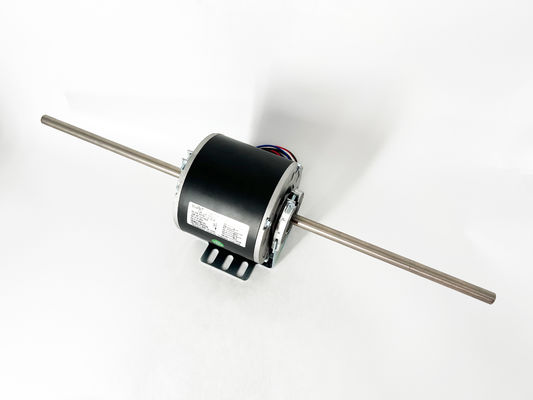

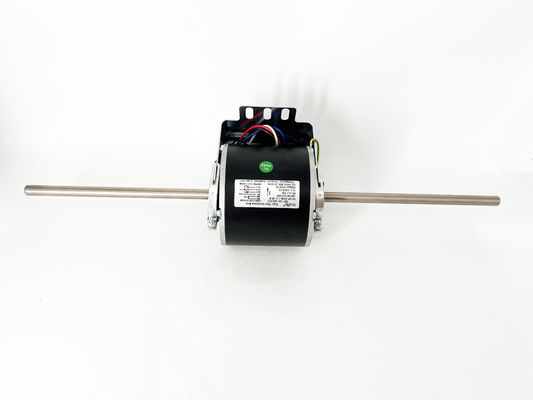

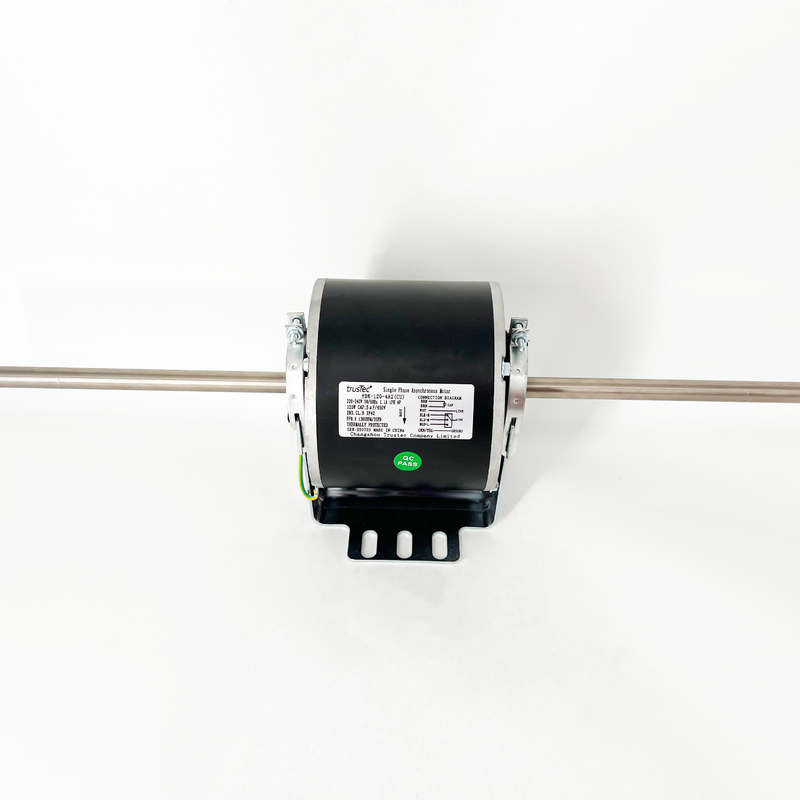

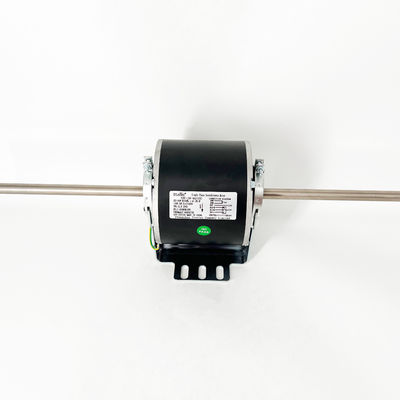

Name: Fan Coil Unit Motor with 123mm Frame 24 Months Warranty and 40℃ Max Ambient Temperature for Air Conditioner
Brand: Changzhou Trustec Company Limited
SKU: YSK-120-4A2-SGR
Price: 20.98 USD
Availability: InStock

Home Products Air Conditioner Fan Motor

Fan Coil Unit Motor with 123mm Frame 24 Months Warranty and 40℃ Max Ambient Temperature for Air Conditioner

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	trusTec
Model Number:	YSK-120-4A2-SGR

Payment & Shipping Terms:

Minimum Order Quantity:	200
Price:	$20.98-21.60

Contact Now

Detailed Product Description

AC Voltage:	220-240V	Rated Power:	120W
Rated Speed:	1300RPM/3SPD	Frame Size:	123mm
Motor Type:	Permanent Split Capacitor	Enclosure Type:	TEAO
Phase:	Single Phase	Shaft Diameter:	12.7mm
Shaft Length:	570mm	Flat Length:	150mm
Motor Shell Length:	103mm	Lead Length:	1300mm
Current:	1.1A	Insulation Class:	Class B
IP Rating:	42
Highlight:	123mm Frame Fan Coil Unit Motor , 24 Months Warranty Air Conditioner Fan Motor , 40℃ Max Ambient Temperature AC Motor

Fan Coil Unit AC Motor for Air Conditioner - 120W 1300RPM/3SPD 220-240V 50/60HZ

Features and Specifications

Product	Fan Coil Unit Motor
Motor Type	Permanent Split Capacitor
Enclosure Type	TEAO (Totally Enclosed Air Over)
Thermal Overload	Equipped With An Automatic Thermal Overload
Phase	Single Phase
Shaft Flats	One Flat
Mounting Orientation	All Angle
Bearings	Ball Bearing
Mounting	Stud Mounting All Angel
Max. Ambient Temperature	40℃/104℉
Frame	123mm
Supply Voltage	220-240V
Supply Frequency	50/60Hz
Current	1.1A
Output HP	120W
Rated Speed	1300RPM/3SPD
Pole	4P
IP	42
Capacitor	5uF/450V
Insulation Class	Class B
Rotation	CW-LE
Shaft Length	22.4" / 570mm
Shaft Diameter	0.5" / 12.7mm
Flat Length	5.9" / 150mm
Motor Shell Length	4.05" / 103mm
Lead Length	51.18" / 1300mm
