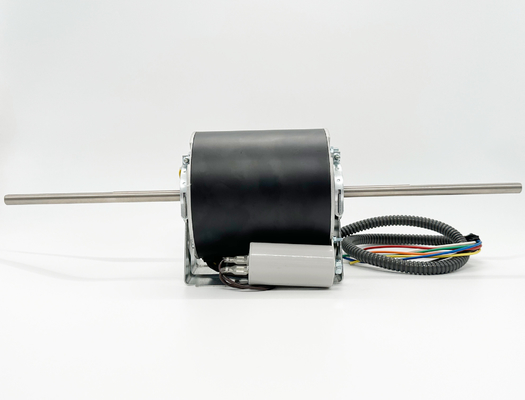

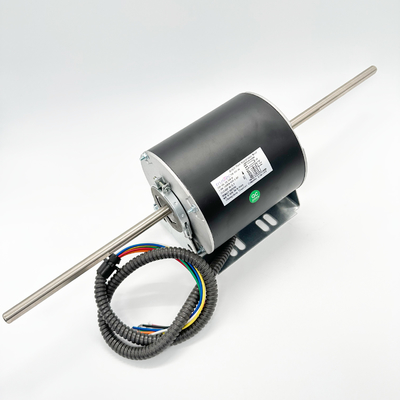

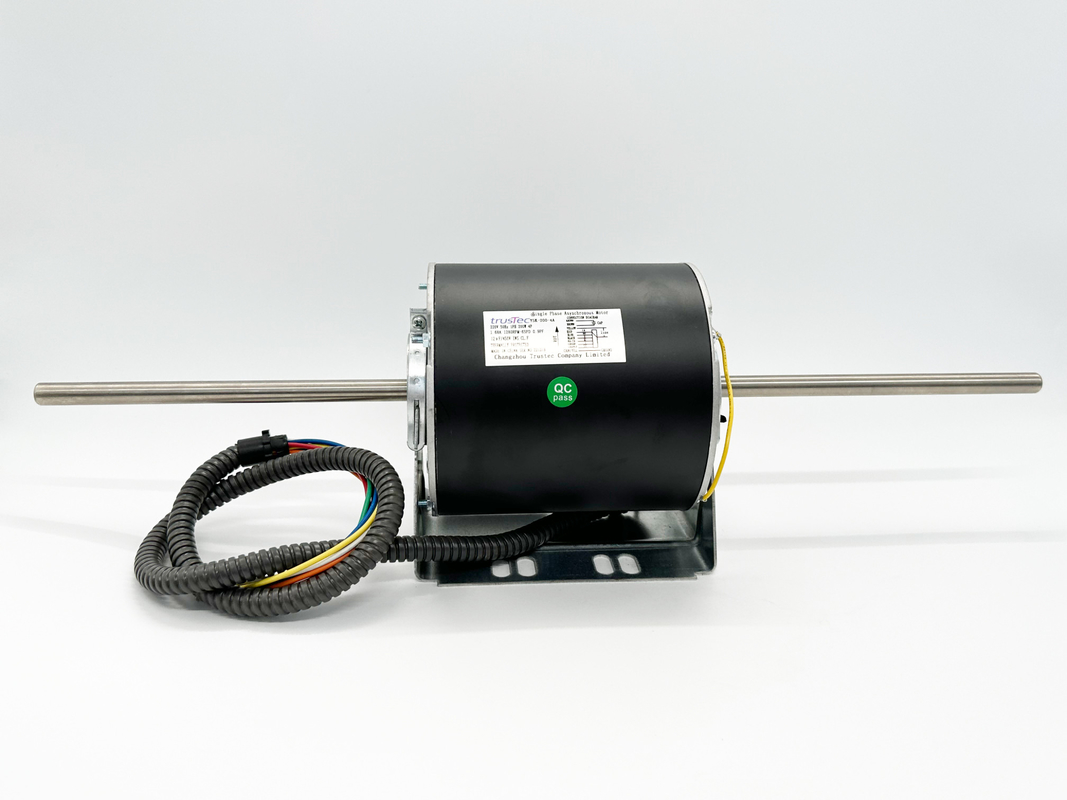

Fan Coil Motor - 200W 220V 50HZ Fan Coil Unit Motor For Air Conditioner

Fan Coil Motor - 200W 220V 50HZ Fan Coil Unit Motor For Air Conditioner

  • Fan Coil Motor - 200W 220V 50HZ Fan Coil Unit Motor For Air Conditioner
  • Fan Coil Motor - 200W 220V 50HZ Fan Coil Unit Motor For Air Conditioner
  • Fan Coil Motor - 200W 220V 50HZ Fan Coil Unit Motor For Air Conditioner
Fan Coil Motor - 200W 220V 50HZ Fan Coil Unit Motor For Air Conditioner
Product Details:
Place of Origin: Changzhou, China
Brand Name: trusTec
Certification: CE、High-tech Enterprise Certificate、ISO9000 Certificate 2023
Model Number: YSK-200-4A
Payment & Shipping Terms:
Minimum Order Quantity: 200 pcs
Price: Negotiable (FOB/CNF/CIF)
Packaging Details: Standard carton packing, foam board inside for protection.
Delivery Time: 15 days fresh products after order confirmation.
Payment Terms: T/T, L/C
Supply Ability: 100,000 pcs per month
Contact Now
Detailed Product Description



Product Name Fan Coil Motor Voltage 220V
Rotation CW:L.E Output Power 200W
Pole 4P AMPS 1.68A
Speed 1280RPM/6SPD  Capacitor 12μF/450V
Insulation Class Class F

Ingress Protection

/
Other protection THERMALLY PROTECTED



Fan Coil Motor - 200W 220V 50HZ Fan Coil Unit Motor For Air Conditioner



Key Parameters

Model

Power

/W

Rotation

Speed

/RPM

Rated Current

/A

Voltage

/V

YSK-200-4A 200 CW:L.E 1280RPM/6SPD 1.68 220

Ps:all dimension can be customized according to customer requirement.



Capacitor Running Asynchonous MOTOR FCU Double Shaft 200W 1280RPM/6SPD REVERSIBLE 1PH Feature

A. 100% pure copper, aluminum motor can also be available if customer need large quantity.

B. Nickel plating for Steel Shaft.

C. Smooth running.

D. Thermal protection.



Application

A. Indoor air conditioning unit.

B. ventilation equipment.

C. Air ventilation fan, air curtain.



Value

A. 20 years history.

B. Guaranteed Quality.

C. It is newly designed in conformity with the relevant rules of IEC standards, Strictly and Perfect Management is guaranteed for Production.



Company profile :

1. As a professional motor manufacturer, we are specialized in designing and producing all kinds of motors for room, commercial and central air conditioners.

2. "All conforms to the needs of customers, all pursues to the satisfaction of customers" is the operating principle of our company- Changzhou Trustec Company Limited who are dedicated in the motor design and production! We adhere to the business philosophy of being customer-oriented, taking the product as the carrier, surviving by good quality, promoting efficiency by scale, developing by credit to strive to create greater value!

3. Our new export company was established in 2011, factory occupied a land area of 20000 square meters and specialized in hvac fan motors manufacturing for 20 years.
