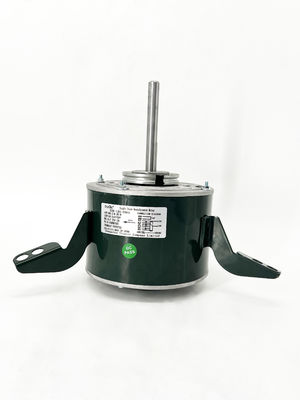

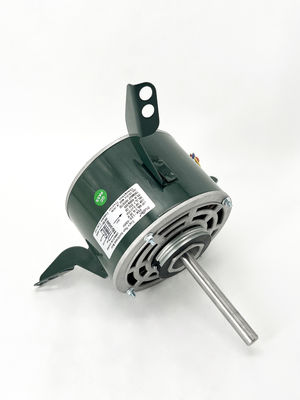

Name: HVAC Blower Motor for Air Conditioner YDK-125-6B60-125W 950RPM/5SPD 115V 60HZ-with 1/2" Shaft Diameter
Brand: Changzhou Trustec Company Limited
SKU: YDK-125-6B60-CHG
Price: 125.00 USD
Availability: InStock

Home Products HVAC Blower Motor

HVAC Blower Motor for Air Conditioner YDK-125-6B60-125W 950RPM/5SPD 115V 60HZ-with 1/2" Shaft Diameter

Product Details:

Place of Origin:	Changzhou, China
Brand Name:	trusTec
Certification:	CE、UL529388
Model Number:	YDK-125-6B60-CHG

Payment & Shipping Terms:

Minimum Order Quantity:	200 pcs
Price:	Negotiable (FOB/CNF/CIF)
Packaging Details:	Standard carton packing, foam board inside for protection.
Delivery Time:	15 days fresh products after order confirmation.
Payment Terms:	T/T, L/C
Supply Ability:	100,000 pcs per month

Contact Now

Detailed Product Description

Product:	HVAC Blower Motor	Motor Type:	Permanent Split Capacitor
Supply Voltage:	115V	Enclosure Type:	TEAO(Totally Enclosed Air Over)
Supply Frequency:	60Hz	Thermal Overload:	Equipped With An Automatic Thermal Overload
Current:	2.6A	Phase:	Single Phase
Output HP:	125W	Shaft Flat:	One Flat
Speed:	950RPM/5SPD	Mounting Orientation:	All Angle
Capacitor:	5.0μF/370V	Insulation Class:	Class F
Pole:	6P	Rotation:	CCW
PF:	0.90	Bearings:	Ball Bearing
Max. Ambient Temperature:	70℃/158℉	Shaft Diameter:	12.7mm/0.5"
Shaft Length:	101.6mm/4.0"	Flat Length:	63.5mm/2.5"
Motor Shell Length:	101.1mm/3.98"
