TRUSTEC MOTOR YOUR TRUSTED FACTORY
Sales & Support:

|
| Place of Origin: | Changzhou, China |
| Brand Name: | trusTec |
| Certification: | CE、UL529388 |
| Model Number: | YDK-10-4A60-ALB |
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Price: | Negotiable (FOB/CNF/CIF) |
| Packaging Details: | Standard carton packing, foam board inside for protection. |
| Delivery Time: | 15 days fresh products after order confirmation. |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 pcs per month |

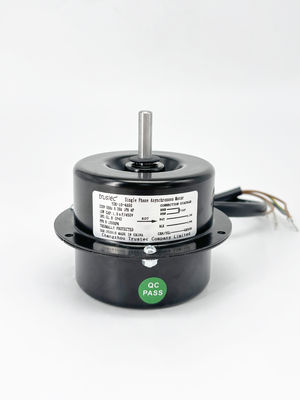

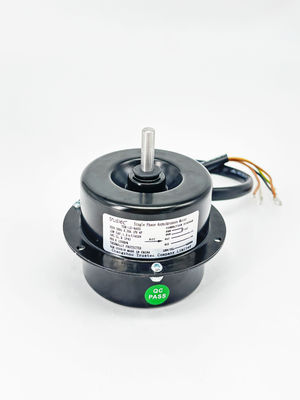

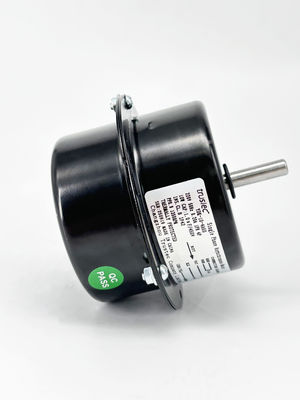

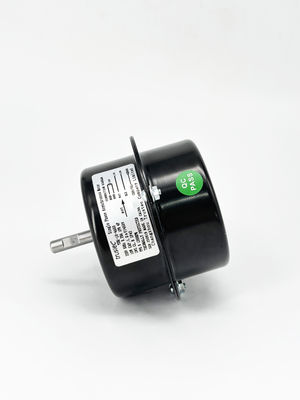

| Product: | Outdoor Fan Motor | Frame: | 82mm |
|---|---|---|---|
| Motor Type: | Permanent Split Capacitor | Supply Voltage: | 220V |
| Enclosure Type: | TEAO(Totally Enclosed Air Over) | Supply Frequency: | 50Hz |
| Thermal Overload: | Equipped With An Automatic Thermal Overload | Current: | 0.2A |
| Phase: | Single Phase | Output HP: | 10W |
| Shaft Flat: | One Flat | Speed: | 1350RPM |
| Mounting Orientation: | All Angle | Capacitor: | 1.0μF/450V |
| Insulation Class: | Class B | Pole: | 4P |
| Rotation: | CCW-SE | PF: | 0.9 |
| Bearings: | Ball Bearing | Max. Ambient Temperature: | 40℃/104℉ |
| Motor Shell Length: | 72mm/ 2.83" | Shaft Length: | 30mm/1.18" |
| Flat Length: | 10mm/0.39" | Lead Length: | 500mm/19.69" |
| Shaft Diameter: | 8mm/0.31" |
