TRUSTEC MOTOR YOUR TRUSTED FACTORY
Sales & Support:
 |
| Place of Origin: | Changzhou, China |
| Brand Name: | trusTec |
| Certification: | CE、High-tech Enterprise Certificate、ISO9000 Certificate 2023 |
| Model Number: | YSK-90-4A |
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Price: | Negotiable (FOB/CNF/CIF) |
| Packaging Details: | Standard carton packing, foam board inside for protection. |
| Delivery Time: | 15 days fresh products after order confirmation. |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 pcs per month |
| Capacitor: | 5uf | Colour: | Black |
|---|---|---|---|
| Current: | 0.75/0.70/0.60A | Frequency: | 50Hz |
| Insulation: | Class B | Model: | YSK-90-4A |
| Odm Solutions: | Customized AC And EC Motors | Output Power: | 90w |
| Pole: | 4 | Rpm: | 1330/1280/1160/1050RPM |
| High Light: | AC Fan Coil Motor 90W,Multi Speed Fan Coil Motor,5uf Multi Speed Fan Motor |
||

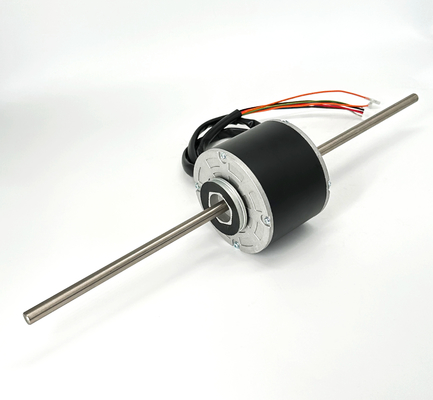

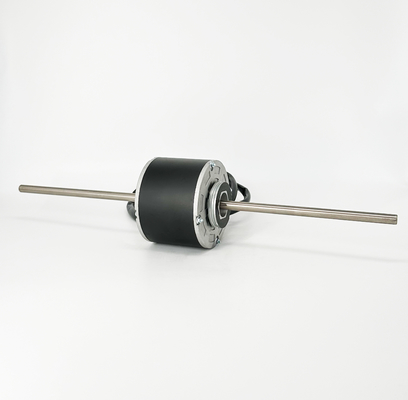

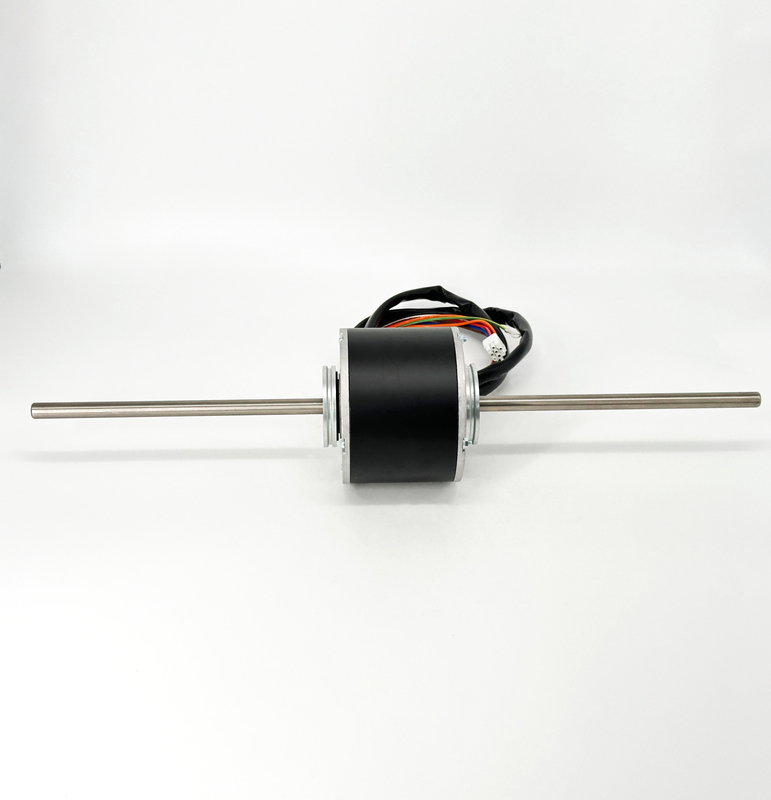

| Product Name | Fan Coil Motor | Voltage | 220-240V |
|---|---|---|---|
| Rotation | CW-LE | Output Power | 90W |
| Pole | 4P | AMPS |
0.75A/0.70A/0.60A |
| Speed |
1330/1280/1160/1050RPM |
Capacitor | 5MFD/450V |
| Insulation Class | Class B |
Ingress Protection |
42 |
| Other protection | THERMALLY PROTECTED | ||
Key Parameters
| Model |
Power /W |
Rotation |
Speed /RPM |
Rated Current /A |
Voltage /V |
| DC63S60 | 90 | CW-LE | 1330/1280/1160/1050 | 0.75/0.70/0.60 | 220-240 |
Ps:all dimension can be customized according to customer requirement.
A. 100% pure copper, aluminum motor can also be available if customer need large quantity.
B. Nickel plating for Steel Shaft.
C. Smooth running.
D. Thermal protection.
Application
A. Indoor air conditioning unit.
B. ventilation equipment.
C. Air ventilation fan, air curtain.
Value
A. 20 years history.
B. Guaranteed Quality.
C. It is newly designed in conformity with the relevant rules of IEC standards, Strictly and Perfect Management is guaranteed for Production.
Company profile
1. As a professional motor manufacturer, we are specialized in designing and producing all kinds of motors for room, commercial and central air conditioners.
2. "All conforms to the needs of customers, all pursues to the satisfaction of customers" is the operating principle of our company- Changzhou Trustec Company Limited who are dedicated in the motor design and production! We adhere to the business philosophy of being customer-oriented, taking the product as the carrier, surviving by good quality, promoting efficiency by scale, developing by credit to strive to create greater value!
3. Our new export company was established in 2011, factory occupied a land area of 20000 square meters and specialized in hvac fan motors manufacturing for 20 years.
