Place of Origin: | China |
Brand Name: | trusTec |
Certification: | UL Approval E529388,CE approval |
Model Number: | YSK140/30-4-150-1 |
Minimum Order Quantity: | 200pcs |
---|---|
Price: | Negotiable (FOB/CNF/CIF) |
Packaging Details: | Standard carton packing, foam board inside for protection. |
Delivery Time: | 15 days fresh products after order confirmation. |
Payment Terms: | T/T, L/C |
Supply Ability: | 100,000 pcs per month |
Power: | 150 W | Frequency: | 50/60 Hz |
---|---|---|---|
Voltage: | 220-230 V | Speed: | 1200RPM/3SPD |

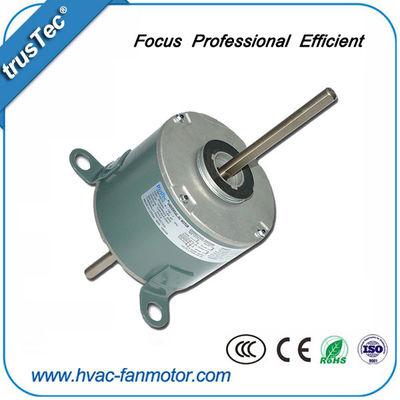

Capacitance: | 5uF/450V | Product Name: | Universal A/C Motor |
ODM Solutions: | Customized AC And EC Motors | ODM Solutions: | Customized AC And EC Motors |
ODM Solutions: | ODM Solutions: Customized AC And EC Motors | ||
High Light: | 1/5HP Universal Air Conditioner Fan Motor,5uF Universal Air Conditioner Fan Motor,YSK140/30-4-150-1 |
The specification of motor:
The following list is representative and welcome ODM and OEM.
Model | Power |
Voltage /V |
Frequency /Hz |
Speed /RPM |
OEM Model |
CTM-1132 YSK120-105-6A | 1/7HP | 220/230 | 50/60 | 825/3 | 5KCP29TUE1195 |
CTM-738 YSK120-185-6 | 1/4HP | 220/230 | 50/60 | 1125/3 | AC809-547-28 |
CTM-511 YSK140-120-6A2 | 1/6HP | 220/230 | 50/60 | 1000/2 | 5KCP39DGM511T |
CTM-635T YSK140-125-6A2 | 1/6HP | 220/230 | 50/60 | 1000/3 | 5KCP39DGM635T |
CTM-004 YSK140-120-6A5 | 1/6HP | 220/230 | 50/60 | 1095/3 | 5KCP39DGM004T |
CTM-5158 YSK140-120-6A7 | 1/6HP | 220/230 | 50/60 | 1050/3 | K55HXPKG-5158 |
CTM-672 YSK140-150-6A2 | 1/5HP | 220/230 | 50/60 | 1075/3 | 5KCP39FGM672S |
CTM-635C YSK140-150-6A3 | 1/5HP | 220/230 | 50/60 | 1050/3 | 5KCP39HGS635C |
CTM-4440 YSK140-150-6A4 | 1/5HP | 220/230 | 50/60 | 1115/3 | 5KCP39FGM4440 |
CTM-5966 YSK140-150-6A15 | 1/5HP | 220/230 | 50/60 | 1100/3 | K55HXLEK-5966 |
CTM-736 YSK140-180-6A | 1/4HP | 220/230 | 50/60 | 1075/3 | 5KCP29MGE736S |
CTM-635S YSK140-185-6A3 | 1/4HP | 220/230 | 50/60 | 1100/3 | 5KCP39HGS635S |
CTM-307 YSK140-245-6A2 | 1/3HP | 220/230 | 50/60 | 1075/3 | 5KCP39HGM307AT |
CTM-A30 YSK140-245-4A | 1/3HP | 220/230 | 50/60 | 1335/3 | F48U02A30 |
YSK140/30-4-150-1 | 1/5HP | 220/230 | 50/60 | 1200/3 | |
YSK140/35-4-185-1 | 1/4HP | 220/230 | 50/60 | 1300/3 |
The feature of motor:
1.Imported equipment & technical assistance.
2.Large Wind Amount.
3.Long Expectancy.
4.Nickel plating for Steel Shaft.
5.Steel end cap plated, rolled steel shell or resin packed.
Company profile:
1. Reputation: 20 years focusing on motor’s design with a professional technical elite team. We pursue the company of “Survive with high quality, develop with credibility”.
2. Quality guarantee: Strict quality management and supervision systems. (CE/UL/RoSH certification)
3. Price: We have our own factory, the price of our products are all factory price.
4. Characteristics: Independent brand, good at innovation, energy conservation design.
Services:
1.We are capable to develop new motor and produce it according to your requirement, please provide with your drawing & sample.
2.Honesty,Good Efficiency and Provide the Best Service.
3.We cooperate with customer to design and develop new product.
4.In reply to your inquiry within 12 hours. Because we are valuing every customer.
FAQ:
Q1- Can you design the motor according to the different request?
Yes, we can offer the ODM.
Q2- Do you have distributors overseas?
Yes. We have distributors in USA, Holland, Spain, Turkey, Sudan, UAE, KSA...
Q3- What is the most important advantage for the export?
Besides the competitive price with the good quality, the critical point is the quick response, the efficient export team and the fast delivery time.
